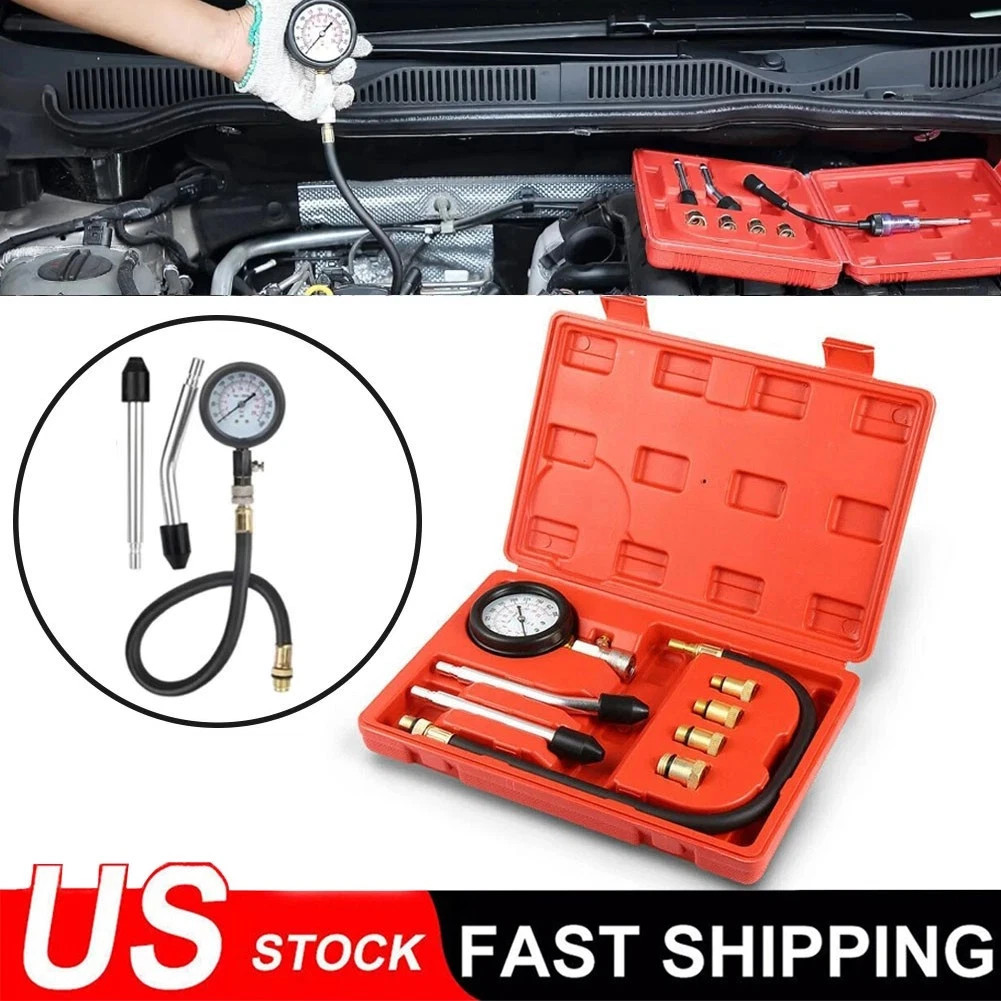

Engine Cylinder Compression Gauge Tester Kit Gas Engine Diagnostic Testing Tool For Sale

• Confirm model:Due to its operating range of 0-300 PSI, it is not suitable for most diesel engines or engines with six or more cylinders engine,please confirm whether the engine has fewer than 6 cylinders.
• Preheat Preparation: Always release the pressure using the relief valve before disconnecting the gauge. Start the engine and allow it to reach normal operating temperature, then shut it off.
• Disconnect Components: Disconnect all spark plug wires and label them according to the corresponding cylinders. Disconnect the ignition system (follow the manufacturer\'s manual).
• Cleaning: Loosen all spark plugs by half a turn, clean the spark plug holes of foreign matter and then completely move the spark plugs, placing them in order.
• Throttle Setting: Detach the air strainer and make sure the throttle is fully open (needs to be reset to closed after testing)
• Install Adapter: Select the appropriate adapter, manually screw it into the spark plug hole (do not use tools), connect the pressure gauge, and ensure it is properly coupled.
• Testing Operation: Rotate the engine at least five compression strokes five or more times, record the pressure value, and repeat the test once after releasing the pressure.
• Test Remaining Cylinders: Follow the same steps to test the remaining cylinders.

• Pressure Relief:The pressure must be released slowly through the pressure relief valve before and after the test to ensure that parts are not impaired；Decrease the risk of petrol injection by releasing pressure before disconnecting.
• Cleaning:Thoroughly clean the spark plug hole before testing to preclude foreign matter from entering the cylinder
• Adapter Installation:Hand tighten the adapter only, do not use a wrench to keep from over tightening.
• Data Comparison:Focus on the pressure difference between the cylinders (too large a difference indicates a potential malfunction)
• Repeat Verification:Each cylinder needs to be tested at least twice to ensure data accuracy.
• Throttle reset:reset the throttle to the closed state immediately after testing to avert startup impairments.
