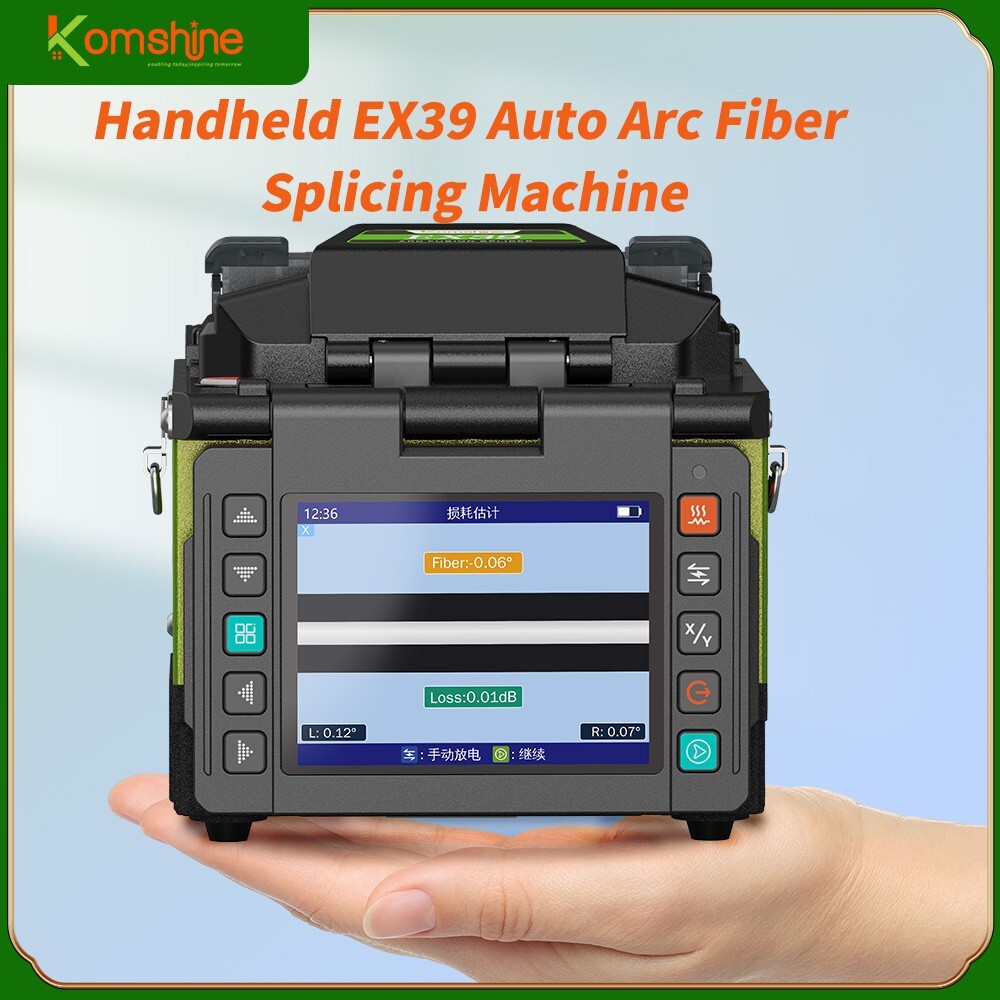

KomShine EX39 Newest Fiber FTTX Fusion Splicer
0.01dB Loss. 8s Splice; 18s Heat. Comes with cooling
tray
Attention: The platform should buy alone, if you need it please contact us.
Specifification:
Splice Method :
Active Clad-Alignment
Applicable Fibers :
SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable :
0.25~3.0 mm / indoor cable
Fiber Holder :
Replaceable (Universal: FH-60, SOC Holder: FH-SOC(optional)
Fiber Diameter :
Cladding: 80-150μm，Coating: 100~1000μm
Fiber Cleave Length :
8~16 mm
Splice mode :
Max 128 modes
Typical Splice Loss :
SM: 0.03dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB★①
Return Loss :
>>60dB
Splicing Time :
SM Quick mode :8 sec/ SM Average: 10 Sec.
Estimated Splice Loss :
Available
Heating Time :
Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable
Protection Sleeve Length :
20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs:
Max 32 modes
Battery :
3400mAhBattery Capacity, Typical 120 Cycles (Splice&Heat) per Charge★②
Electrode Life :
5000 arcs（replaceable）★③
Auto-start :
Splice / Heating
Automatic Fiber Identification :
/
Automatic ARC Identification :
Automatic arc calibration by air pressure and temperature
Results Storage :
The last 10,000 splice records and 2,000 result images
Tension Test :
1.96~2.25N
Operating Condition :
Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition :
0~95% relative humidity, -20~60°C
Display :
3.5” colorhigh resolution (800 x 480) display
Fiber Magnification :
X, Y, XY, X/Y : 320X Magnification
Power Supply :
AC Input 100-240V, DC Input 9-14V
Terminal :
USB2.0
Weight :
1.06kg without battery / 1.35kg with battery
Size :
130H x 113W x 126D mm
Feature Description:---Effiffifficient, versatile, lightweight & portable---Working platform design for aerial work---Special 3-in-1fifiber holde---3 years warranty---Electrode life around 5000 times(Replaceable)---Automatic splicing & automatic heating---Innovatively no need tools to replace electrodes---Support 120 times of splicing + heating when fully charged
