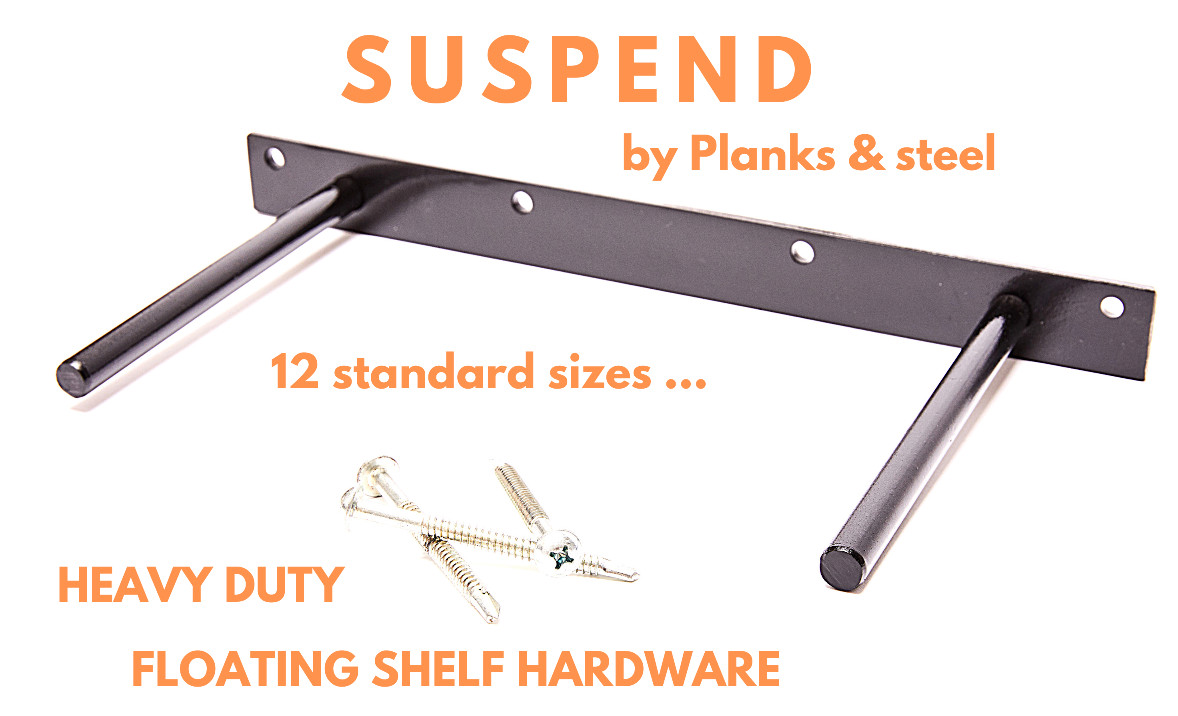

Custom heavy duty floating shelf hardware solid steel rods and back plate.1-1/4\" back plate for 1-5/8\" to 2-3/4\" thick shelves
1/2\" solid steel round bar support rods
precision machined rod to plate connections
precision punched mounting holes 4\" on center compatible with 16\" and 24\" framing standards
mounting holes diameter and location designed to receive up to # 14 truss head screws.
intermediate holes can receive large toggle bolts between stud bays in remodel applications.
we recommend continuous solid blocking for new construction applications to allow full use of 4\" o.c mounting holes ....
painted black
Recommended shelving hole diameter ; 9/16\"
Recommended minimum back rabbet ; 1-3/8\" wide x 1/2\" deep x overall bracket length plus 1/8\" each end..2 rod depths4\" rods for shelving 5\" to 8\" deep ( rods can be easily cut shorter for narrower applications)
6\" rods for shelving 7\" to 12\" deep12 lengths for 10\" to 101.5\" shelving lengthsHARDWARE LENGTH SHELF MIN SHELF MAX SUPPORT RODS
9\" 10\" to 17.5\" 2
13\" 14\" to 21.5\" 2
21\" 22\" to 29.5\" 2
29\" 30\" to 37.5\" 3
37\" 38\" to 45.5\" 3
45\" 46\" to 53.5\" 3
53\" 54\" to 61.5\" 4
61\" 62\" to 69.5\" 4
69\" 70\" to 77.5\" 4
77\" 78\" to 85.5\" 5
85\" 86\" to 96.5\" 5
93\" 94\" to 101.5\" 6WE RECOMMEND SELECTING THE LONGEST POSSIBLE ROD AND BRACKET LENGTH THAT WILL FIT YOUR APPLICATION.
...
Question ; send us a note, we will be happy to assist .
