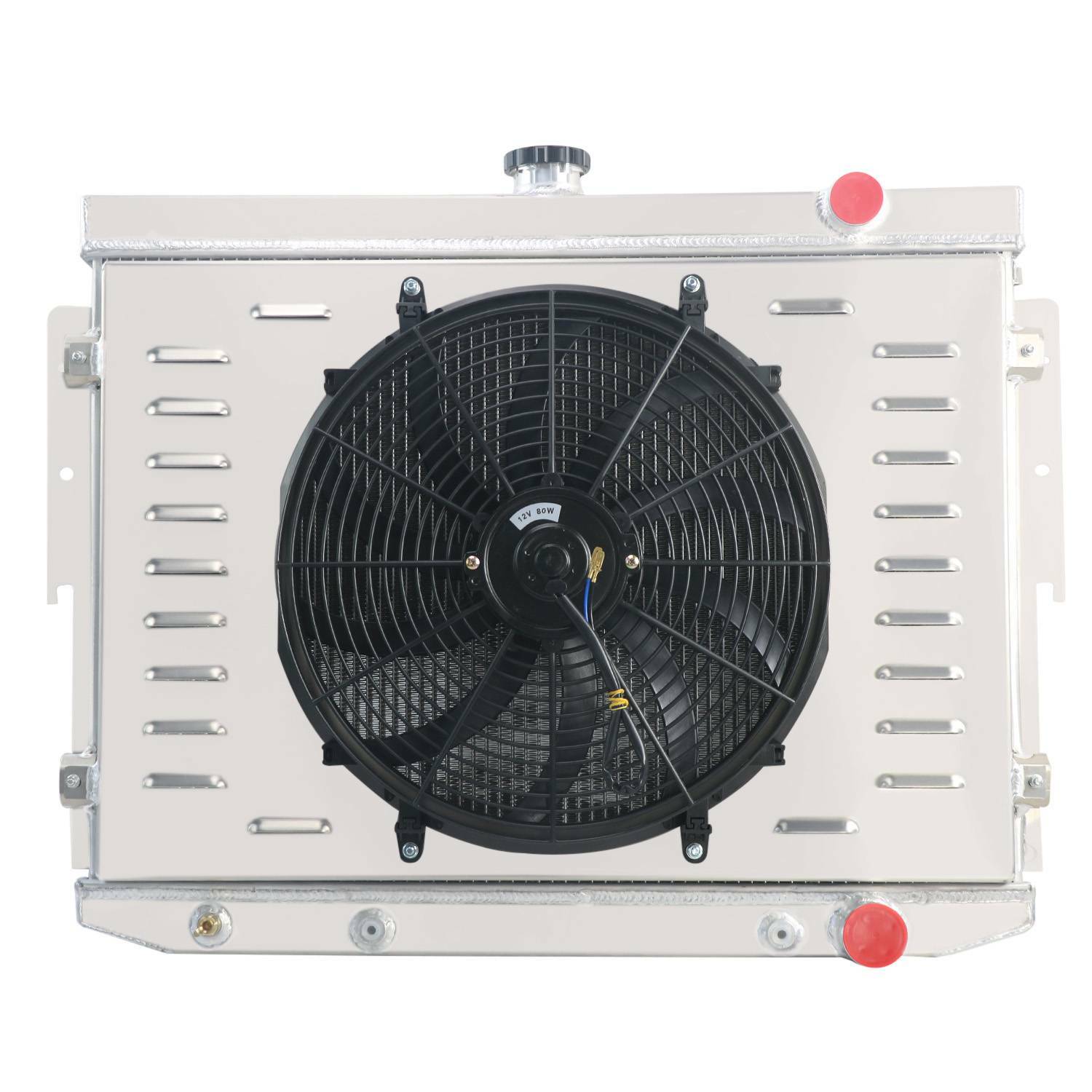

For 1973-1978 Dodge Mopar Plymouth Chrysler 7.2L 3-Row Radiator with Shroud Fan For Sale

• Intercooler
• Wheel Spacer Adapter
• Bottom/Top Roller
• Shroud & Fan
• Overflow Tanks
• class=\"lev1\">
• Wheel Hub Bearings

• AC Condenser

• Control Arms

• Adapter Fittings

• Fuel Rail
• Steam Vent class=\"lev1\">
• Silicone Hose

• Oil Cooler
• Intercooler pipe class=\"lev1\">
• Other

Package Include:

1 X 3-RowAA5052Aluminum Radiator

1 X CNC Machined Radiator Cap

1 XAA5052Aluminum Shroud

1 X 16\" Fan (Includes mounting kits)

1 X Thermostat Relay Kit

Application:

This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

1.Our Radiator is made ofAA5052aircraft aluminum,AA5052Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).

2.Higher density core: cooling rows are spaced 3/8\" apart,giving you 25% more rows within the core than other aluminum radiators sold on .

3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8\" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality FullAA5052Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.

AA5052Aluminum Shroud+Fan：

Our custom-madeAA5052aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered designAA5052fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.

2.S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

Fan Specification:

Diameter : 16\'\' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 120W

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

Amp Draw: 10amp

Fan Thickness: 2.95\"

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Powerful 120 watt motor will keep your engine cool.

Thermostat Kit:

Work with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185\'F turn-on temperature, 165\'F turn-off temperature.

3/8\" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions：

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.
