For Cummins INLINE 6 Data Link Adapter Heavy Duty Diagnostic Scanner Tool For Sale

For Cummins INLINE 6 Data Link Adapter Heavy Duty Diagnostic Scanner ToolDescriptionWe test every one before shippingTruck Scanner Fleet Diagnostic Tool
Get INLINE 6 for 5 Reasons:1. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.2. With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest CM INSITE, PowerSpec and Calterm III software applications.3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-CM applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).4. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.5. Each CM INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.6.Highest cost-effectiveINLINE 6 Features:1. Supports SAE J1708/J1587 and J1939/CAN data links2. Both CAN ports auto detect between 250 & 500 kbps3. Supports USB full speed port at up to 2M baud rate4. Custom USB cable includes thumbscrews for secure mounting to INLINE 65. Supports RS-232 PC serial port at up to 115.2k baud rate6. Is fully compliant with TMC's RP1210 standard7. Small enough to fit in pocket8. Attractive black powder coated aluminum housing provides ruggedness9. Derives 8 V to 50 V DC power from vehicle10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols13. INLINE 6 is certified to meet European CE requirements14. Rated for -40° to +85° C operating temperature15. INLINE 6 meets rigorous CM in-cab environmental test requirements

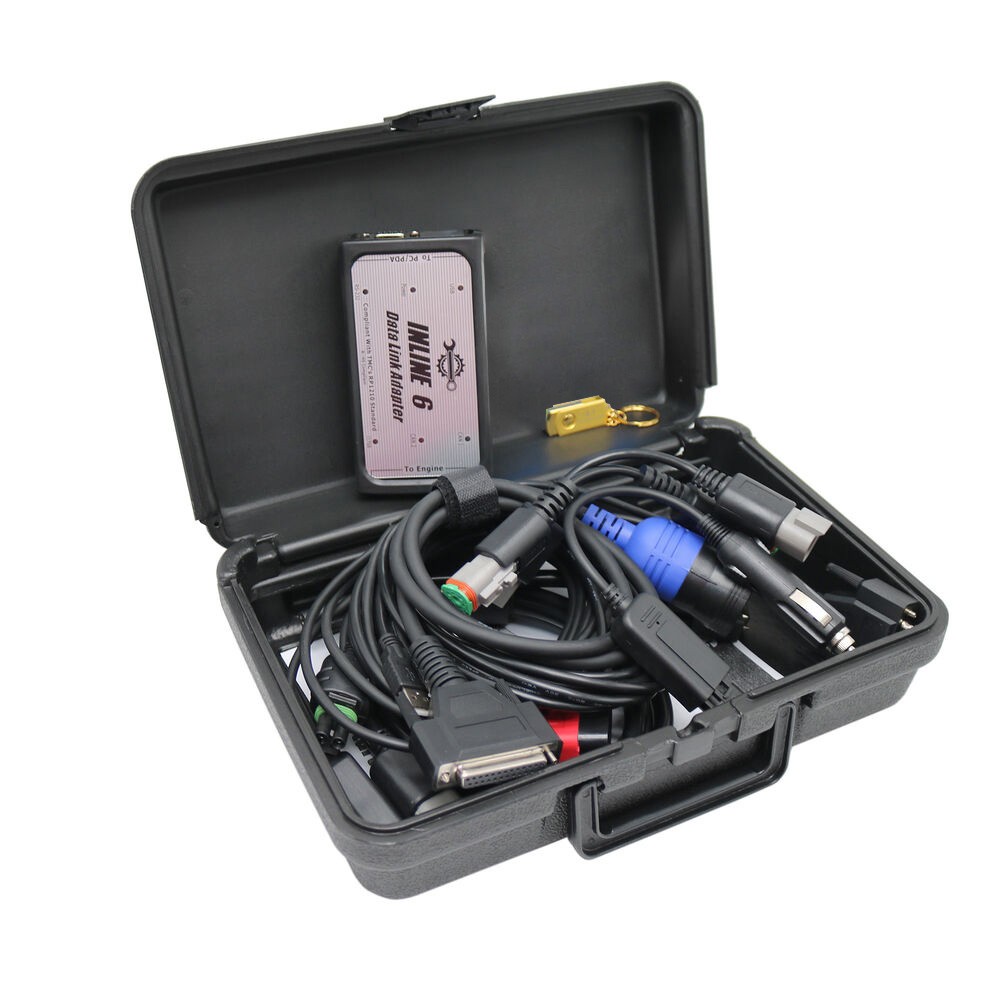

Package Including:1 x INLINE 6 data link adapter (P/N 2892093)1 x USB 14-foot cable (P/N 2892176)1 x DB25F/9-pin data link cable (P/N 4919780)1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)1 x J1939 Gender Changer adapter (P/N 3163597)1 x J1939 Backbone adapter (P/N 3163096)1 x ObdII cable (P/N 4919781)1 x Komatsu 12 pin cable1 x INLINE 6 software CD (v8.7) Include Insite 8.7
Inline 6 utilizes the latest electronic technology to provide high performance and high quality. Each inline kit contains a data link adapter, a base cable, and an inline PC software driver. Load the software driver and connect all the hardware, and you can start to detect the fault and make corresponding maintenance.
For any issues, you may have before or after the purchase, email us.We are always ready to offer help and value your response to achieve improvement. [If you don't know how to install the software, you can use email Contact us to install the software for you. ]

All Laptops or Tablets have been used, but the performance and function are intact, which is basically the same as the new computer, and there is no problem when used in machine diagnosis.
