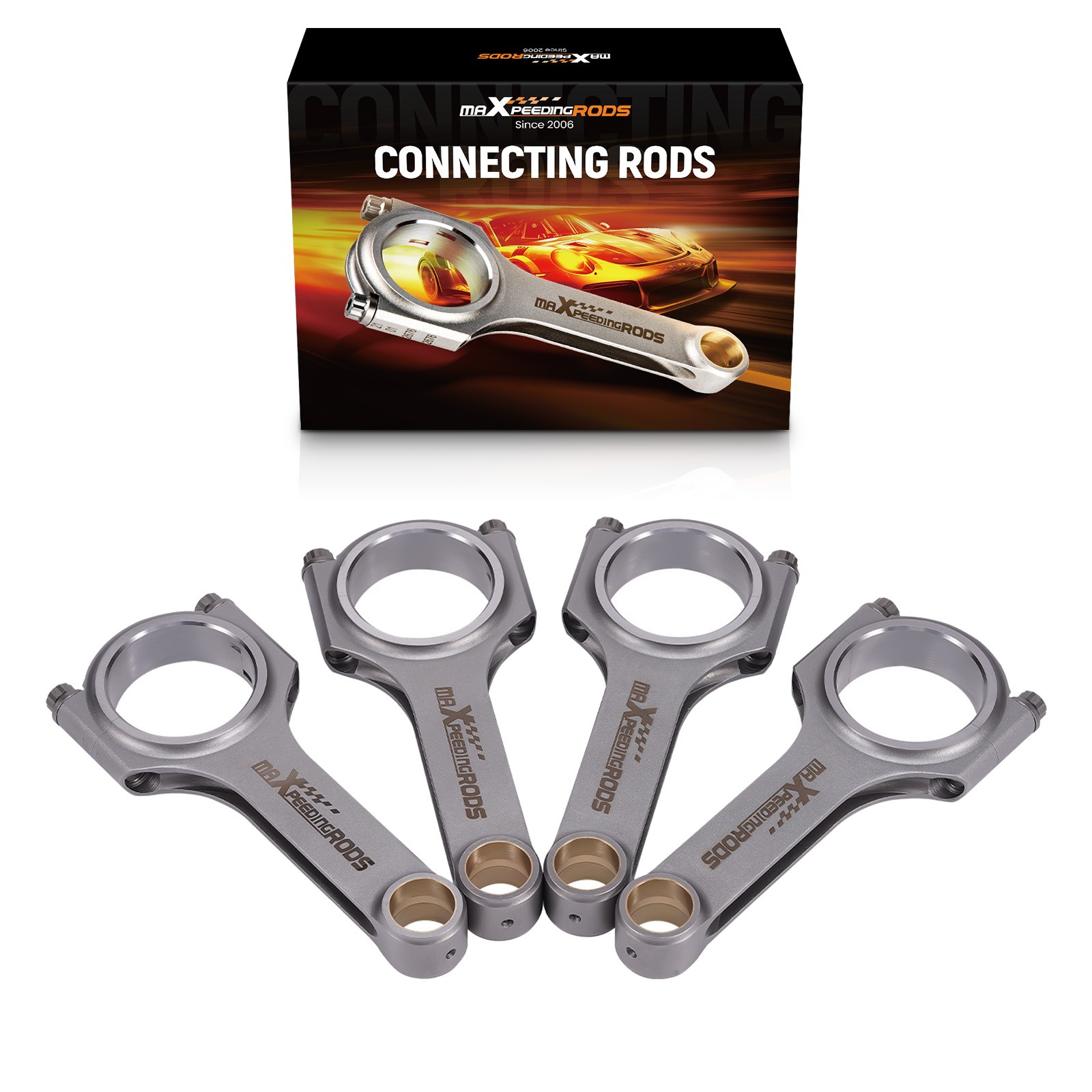

Forged Connecting Rods+ARP2000 Bolts for Mazda MZR Ford Duratec 2.5L 151.76mm
All modifications must be installed by licensed mechanics and in compliance with your local modification
ARP Bolts
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
Forged 4340 Steel
Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.
H-Beam Design
H-Beam helps improve stiffness, reduce stress risers and weight.
Horsepower Rating
Advertised horsepower rating: 600HP-800HP.
High Precision Control
Balanced within:+/- 1 gram per rod,
Bores finished to:+/- .005mm or .0002\".
ARP 2000 Bolts
With Standard Original ARP 2000 Bolts.
Upgradable ARP L19 Bolts
Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.
Application
For Mazda MZR / Ford Duratec 2.5
Dimension
Connecting Rod Length Center to Center 151.76mm/5.975in Approximate Connecting Rod Weight 579g Big End Bore Diameter 55.00mm/2.165in Pin End Bore Diameter 21.00mm/0.827in Big End Width 21.80mm/0.858in Small End Width 17.90mm/0.705in Specification
Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8\"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm
Packaging
Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
