Fridge Freezer Roll Bond Aluminium Evaporator 20x10\" (525x250mm) 1/4\" tube For Sale

READ CAREFULLY ALLLISTING BEFORE BUYING!!!!!

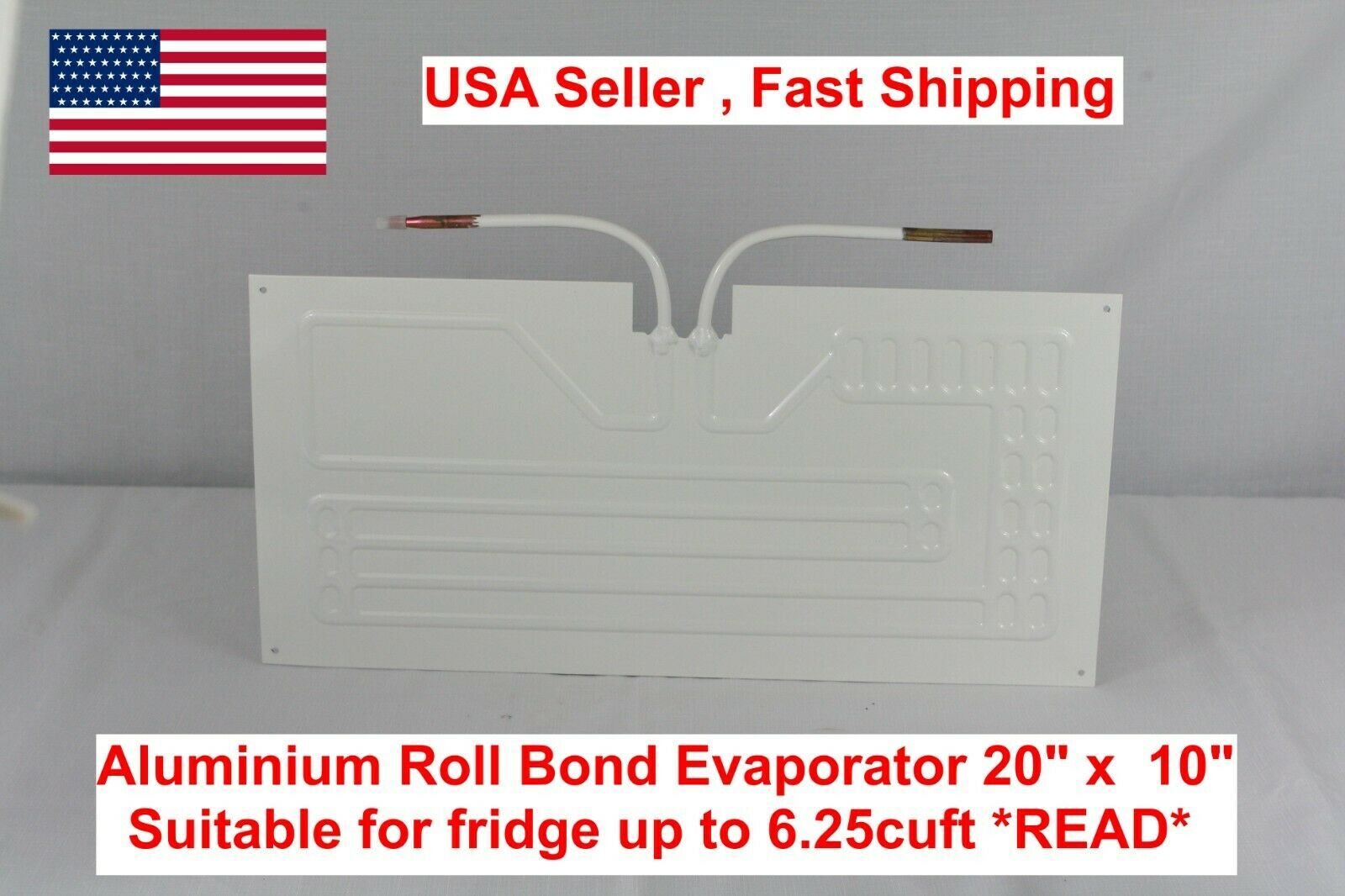

Fridge Freezer Roll Bond Aluminium Evaporator 20x10\" (525x250mm) 1/4\" tube

Can be bended easily , But not everywhere see pictures for more details

Need to be mounted horizontal, tubes needs to be at top.

Capacity with QDZH35G (or BD35):

Fridge 38F (3C):

6.25 cuft (180L)

Freezer 42F(-6C):

2.1 cuft (60L)

*****Based on 2 inch foam insulation for a fridge, 4inch for a freezer , Chest Style (top) opening , Reduce box volume by 50% for Vertical Style Door opening (like an upright fridge)****

*****Based on 95F (35C) ambient temperature, Reduce box volume by 20% for tropical conditions 110F (43C)****

Overall dimension

Plate: 525mm x 250mm (300mm heigth including tubes)

Thickness: 1.35mm and 4mm at channel

In Tube diameter : 2mm ID for capilary,

Out Tube diameter : 1/4\" ID (6mm) 5/16\"OD (8mm)

Mounting holes (screws not included) : #8 (0.155\" or 4mm Diameter)

 Suitable for small refrigerator, small freezer used for car, boat ,camping, solar and off-grid.
