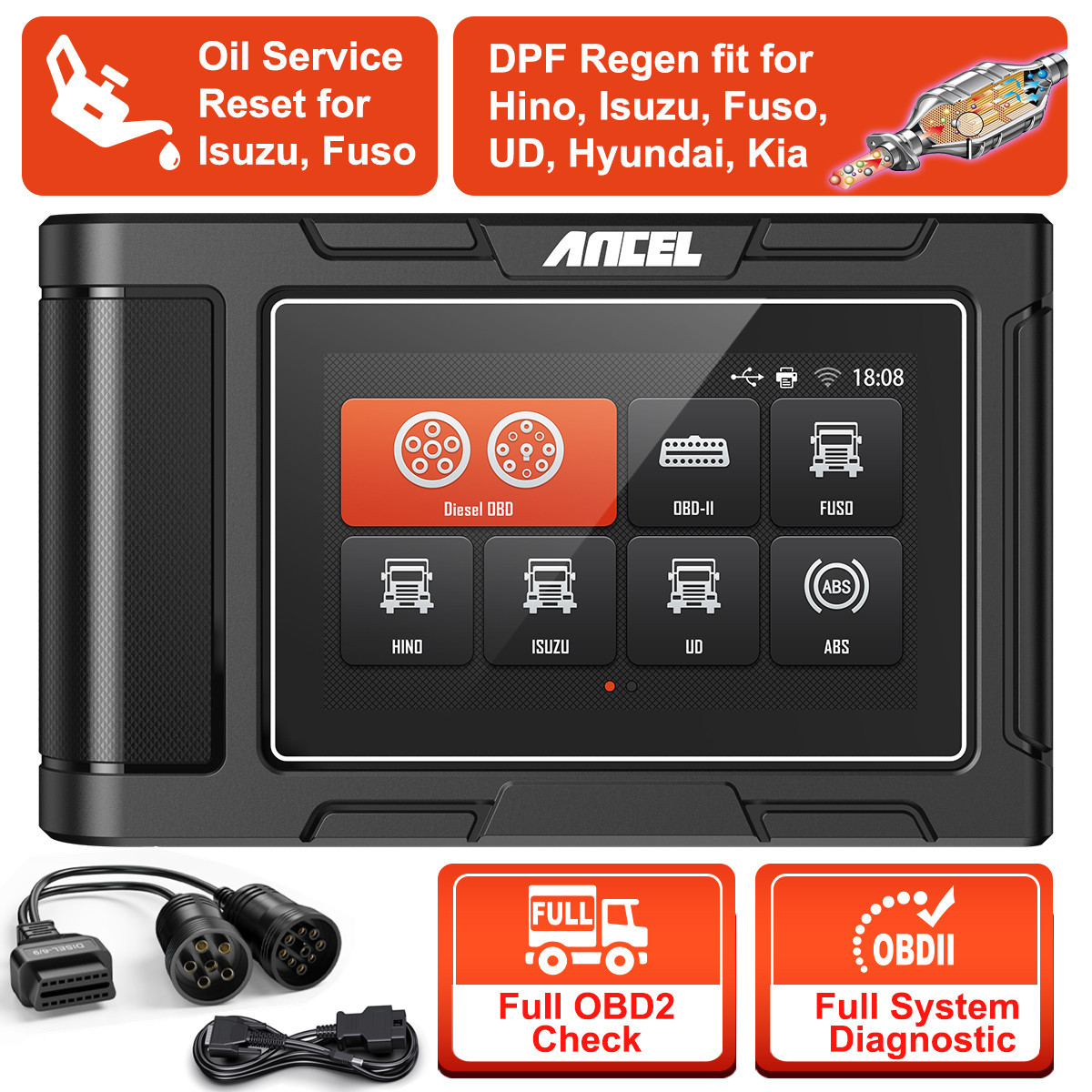

Full System Heavy Duty Truck Scanner OBD2 DPF Regen Tool for ISUZU HINO UD FUSO For Sale

Ancel HD3200 Heavy Duty Truck Scanner Features

** OE-Level All System Diagnosis for HD trucks
** DPD/DPF Regeneration: fit for Hino, Isuzu, Fuso, UD, Hyundai, Kia Trucks
** Oil Reset Service fit for Hino, Isuzu, Fuso
**Compatible with Private protocol for diagnosing heavy trucks made by Fuso, HINO, Isuzu, UD, Volvo, Hyundai and Kia.
** Diesel OBD diagnostic on Asian ,America ,European heavy trucks and construction machinery.
**Compatible with OBDII protocols: check engine for all standard OBDII passeneger vehicles test.
**Pin Detect Function: This function to diagnose the connection status of the OBD inter face and detect whether the pins are damaged.
**Advance Additional Functions: One-click screenshot, one-click update, one-click printing, one-click response, create a test report with one click and send it by email,ect.
**Language: English ,Spainish and Traditional Chinese. Quad-Core ARM Cortex-A7
RAM: 1GB
Flash: 8GB
Display : 5 inches LCD，resolution ratio 800*480
WIFI : 802.11b/g/n 2.4GHz
USB interface: Type C interface
Diagnose interface: DB15 interface
Operating voltage: DC 10V~36V/3A
Free Update: Lifetime

✔️Powerful DPF Service Functions ( Suit for FUSO, HINO , ISUZU , UD , VOLVO , HD HYUNDAI & KIA HD Trucks )

DPF service functions includes: DPR state check, DPR state reset, DPR differential pressure detection, Forced DPR regeneration, DPD Forced Regeneration, DPD Regeneration Data Reset, DPD Automatic regeneration, DPD normal regeneration control, DPD slow regeneration control, DPD status resetting, Clear DPF Data, etc.

DPF regeneration ensures that the vehicle state meets the following requirements:

1. First of all, when dpf is regenerated, the vehicle needs to ensure that the vehicle speed is 0, and the brake pedal, clutch pedal and accelerator pedal of the vehicle are in a normal relaxed state, that is to say, the accelerator, brake and clutch pedal of the vehicle are not stepped on.

2. In addition, the gear of the car needs to be kept in the neutral position, and the dpf regeneration function cannot be turned on with gear. At the same time, the hand brake of the car should be tightened.

3. In the process of starting the regeneration function of automobile dpf, it is also necessary to ensure that the engine of the automobile is always in an idle state, and the temperature of the automobile water tank is best kept above 40 degrees Celsius.

4. Engine running at idle speed, and water temperature should be higher than 80 Celse Degree.

5. Coolant temperature is higher than 60"C Degree; Fuel temperature is lower than 70"C degree;

The above conditions are necessary for the dpf regeneration process. If any of the above conditions are not met, the dpf function of the car will not work normally at this time.

✔️Service/Engine Oil Light Reset (for FUSO/HINO/ISUZU )

• ANCEL HD3200 diesel scan tool support Oil Light Reset. If the car owner replaced the relevant parts, but does not reset maintenance lamp, it will not affect the performance of the vehicle, but it will bring trouble to the next replacement of the car parts: it is impossible to know exactly when the new parts are used. The intelligent maintenance system CBS permanently monitors oil levels and the degree of wear and tear on individual components of your vehicle. It also checks the time/mileage recommendations for fixed services and it analyses this data and tells you when a service is next due.

HD3200 Most SYSTEM Diagnostic Scanner Tool for Heavy Duty Trucks

HD Truck full System

Engine, transmission, instrument panel, drivetrain, braking system, suspension, ABS, ESP, EPS, fuel system and etc

System Functions:

Read codes, erase codes, I/M Readness, Live data, EVAP Test, O2 sensor Test...etc

ABS:Like other systems, braking systems have evolved and become more complex, with multiple sensors and actuators operating together to make braking more smooth, consistent and safe for everyone. The HD3100 Pro truck scanner allows the user to monitor and diagnose critical ABS systems to ensure that repairs to this critical system are effective, and complete.

Transmission: Today’s transmissions provide a wealth of information about the success of up and downshifts, solenoid action (too harsh, too soft), clutch engagement, fluid temperature, fluid level, pressure, and other, critical, operational and diagnostic information.HD3100 Pro can easily solve the troubles caused by the Transmission for you.

Instrument panel：A well-functioning, always ready, Supplemental Restraint System (instrument panel) is absolutely critical for occupant and driver safety. Even minor issues might impact the operation, and performance, of the instrument panel system. The HD3100 Pro truck scanner quickly, and efficiently, allows the user to retrieve, read and interpret instrument panel issues and monitor system system functionality to rapidly diagnose, and repair, the cause of the issue.

Drivetrain：When the drivetrain light turns on, you will feel difficult to start the vehicle and it will consume more fuel. This scanner can turn off the light to make the vehicle have good power and fuel economy.

Braking：ABS automatically control the braking force of the brake when the car is braking, so that the wheels are not locked and in the state of edge rolling slip (slip rate is about 20%) to ensure the maximum adhesion between wheels and ground. HD3100 Pro can Performs various bi-directional tests, turn off the light,locate in the error part.

Cab climatie：Cab climatie plays an important role during driving. It can ensure the driving comfort and driving safety of the driver. When there is a problem on the cab climate, the HD3100 Pro scanner will help you to read the fault codes, show codes definitions and clear the fault codes

Suspension：If there is a problem with the suspension, the truck will bump when driving on uneven roads. The HD3100 Pro scanner can clear the relevant fault codes to ensure that the vehicle can run smoothly to give you a comfortable driving experience.

Particulate：The HD3100 Pro scanner is able to monitor vehicle exhaust emissions in order to protect the environment

and so on

For HD Truck(12V/24V) for Full System Diagnostic:
Covers more heavy duty trucks like HINO/ISUZU/FUSO/UD/UD VOLVO/HD VOLVO/Hyundai/KIA /Ford(6/9PIN), Ford(16PIN), Freightliner, HD Volvo, International, Kenworth, Mack, Peterbilt, Caterpillar, Terex, Case, Bobcat, ATLAS, BLACK, CAT, John Deere etc

OEM Level-Full System Diagnostic

It’s mean that HD3200 advanced truck diagnostic scanner can OEM level support all the systems that ISUZU HINO UD FUSO truck

HINO[Supported engine models]:E13CTJ, E13CTK, E13CTM, E13CTL, E13CTN, E13CTP,E13CTR, E13CTS,E13CTT, J08ETB, J08ETE, J08ETA,J05DTA,J05DTA, P11CUH, P11CUJ, E13CUN ,E13CUR, E13CUK, E13CUL, E13CUP,J07ETB, J05DTC,E13CVT, E13CUT,J08ETN,J08ETT,[Supported model]:General, Dutro, Ranger, Profia, Selega, Blue Bibbon City, Poncho, Melpha, Liesse, Liesse2, Rainbow, 700 series, 600 series, 500 series, 300 series, Bus/Coach, Industrial Engine.

FUSO is developed by the original factory agreement (Fuso original equipment), through system diagnosis (diagnosis by system)，Support almost all FUSO trucks on the market.

ISUZU [Supported engine models]:Euro 2, SOHC, 4HE1-TC, 4HF1, 4HG1, 4HJ1, 4HK1, 4HK1-TC, 4HLT, 4HV1(CNG), 4JB1, 4JG2, 4JJ1, 4JH1, 4JK1-TC, 4JX1(3.0 L4), 4KH1, 4ZE1, 6HK1, 6HL1, 6SD1-TC, 6UZ1, 6WF1, 6WG1, 4JJ1-TC，4HK1-TC，SCR, AT-JR405E, Chaoyang Diesel engine(Bosch diesel), Commins unit pump diesel engine, Isuzu alarm, Wuxi Diesel Engine(Bosch Diesel), Weifang diesel engine, Perkins diesel engine, Large diesel engines(Bosch diesel).[Supported models]:ELF200, ELF300, ELF400, ELF500, ELF500, ELF600,N-series w/3.0L Diesel(4JJ1),N-series w/5.2L Diesel(4HK1),N-series w/6.0 Gas,N-series w/6.0 Propane,Stripped Chassis w/3.0L Diesel(4JJ1),N/W Series w/4.8L Diesel(4HE1),N/W Series w/5.2L Diesel(4HK1),N/W Series w/5.7L (CAL) Gas,N/W Series w/5.7L (FED) Gas,N/W Series w/6.0L Gas,F/T Seires w/7.8L diesel(6HK1), ,N/W Series w/6.0L Gas, ,N/W Series w/4.8L Diesel(4HE1),N/W Series w/5.2L Diesel, ,N/W Series w/6.0L Propane, ,F/T Series w/7.8L Diesel(6HK1),,C-series w/7.8L Diesel(6HK1), H/C Series w/7.8L Diesel(6HK1),FRR/WT5500 w/7.8L Diesel(6HK1),FTR W/5.2L Diesel(4HK1),Isuzu Taiwan,NL series/NM series/ELF series：4JJ1-TC Euro 2,3,4,5,NP series：4HK1-TC Euro 2,3,4,5,ELF series.

UD [Supported engine models]:Nissan UD engine system, Hino engine, UD2004 and earlier, Volvo engine(8 pin square), FE6, RG8, RH8, RF8, GE13(KWP), MD92(KWP).[Supported models]CONDOR, DUMP U-CW520HVD,THUMB TRATOR HEAD KL-CK482BAT.

Kind reminder :
Due to the different system limitations of different vehicle models. So this product does not support all vehicles to do all functions. If you are not sure please contact us and tell us your vehicle information before purchasing.

HD3200 Diesel Truck engine:A09C, J05E, J05C, J05D, J07C,J07E,J08C, J08E, S05C, S05D, N04C N05C, A09C, K13C, E13C, F17D, P11CA09C, J05E, J05C, J05D, J07E, J08E, S05C, N04C, N05C, A09C, E13C, P11C700 series, 500 series, 300 series, 600 series,Retro,Hino bus, Hino CoachIsuzu truckEuro 2(with 20 pin square),SOHC , 4JJ1-TC, 4HK1-TC4HK1-TC, 4HL1,4JJ1, 4JK1-TC, 6HK1,6HL1, 6UZ1,6WG1,4HK1,Isuzu America area:
FTR W,N series,Stripped Chassis,N/W series,F/T Series,FRR/WT5500,C-series,H/C seiresIsuzu Australia modles:
N series,FXF, YGX series,ELF series(200/300/400/500/600),TF seriesIsuzu Taiwan models:
NL,NM , NP,ELFMitsubishi FusoEuro 2/3/4/5/6Euro 2/3/4/5/6Canter,Fighter,Super greatNissan UDFE6,RG8,RH8,RF8,GE13,MD92,
VOLVO engine(8 pin Square)UD VolvoVolvo J1708,Volvo 500KVolvo J1708
Volvo 500KVolvo J1708
Volvo 500KHyundai Truck/BusHyundai engine: D6CA, D6CB, D6CC, D6CD, D6CE, D6CF, D6CG, C6DA
D6AB, D6AC, C6AB, C6AC, C6AE, C6GA, C6GB, D6HA,D6HB, D6HC, D6BR ,D6GA
D4AF,D4AL, D4DA, Global900,H-1 TRUCK,H-100 TRUCK, H350, HD120,
5Ton Truck(KOR), Mega Truck(KOR),LightDutyTruck[HD35~78], Mighty(KOR), SOLATI(EU), Trago(KOR), NewPowerTruck(KOR), Trago Xcient, UniverseKIA Truck/BusHyundai engine: D6AB, D6CD, D6HA, D6CC, D6CB, D6CA, ...Construction Machinery( Enter Hino or Isuzu engine menu to read ) Hyundai construction machineryHino Engine: E13C J08E J05E J05D P11C J08E A09C√KATO machineryHino engine E13C,J08E J05D P11C J07E√Kobelco machineryHino engine E13C,J08E J05D P11C J05E
A09C S05C S05D N04C N05CHino engine E13C,J08E J05D P11C J05E
A09C S05C S05D N04C N05CTakeuchiHino engine: E13C,J08E J05D P11C J07E A09C U2engine√HITACHI construction machineryIsuzu engine: 4HK1√DOOSAN construction machineryIsuzu engine: 4JB1 4JH1/Yanmar machineryHino engine: E13C J08E J05D J07E P11C A09C,J05E,N04CSany machineryJ1708 diagnostic protocol
J1939 diagnostic protocol//Lishide machineryIsuzu engine: 4JH1,/Sumitomo machineryIsuzu engine:4JH1,4HK1√ZOOMLIONIsuzu engine 4JH1,
Hino Engine Control ModuleJ1708/J1939 protocol diagnosis/FUWAHino engine E13C,J08E J05D P11C J07E
A09C U2 engine√/Fuzhou SanyuanHino Denso engine/HENGTEHino Denso engine:E13C,J08E J05D P11C J07E A09C U2
BOSCH common rail√/LISHIDEJ1708/J1939 protocol diagnosis
Isuzu engine:4JH1//CM VolvoUD engine
J1708/J1939 protocol diagnosis //SUMITOMOIsuzu Engine: 4JH1 Isuzu 4HK1
Cummins engine√/Construction Machinery(Enter Cummins engine or Diesel OBD to diagnostic ) BLACK CATCummins engine(J1708/J1939 protocol diagnosis )//BobcatCummins engine(J1708/J1939 protocol diagnosis )//CaterpillarJ1708/J1939 protocol diagnosis//PengpuCummins engine(J1708/J1939 protocol diagnosis )//SHUNTONGCummins engine(J1708/J1939 protocol diagnosis )//sunwardCummins engine(J1708/J1939 protocol diagnosis )//TerexCummins engine(J1708/J1939 protocol diagnosis )//Yellow RiverCummins engine(J1708/J1939 protocol diagnosis )//Zhonglian machineryCummins engine(J1708/J1939 protocol diagnosis )//

For Cars(12V) for OBDII Engine Check :

Wide Compatibility: Compatible with OBD standard diagnostic protocol, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4. Support standard OBDII protocol cars, like following cars.

Read Codes
Erase Codes
Live Data Stream
I/M Readiness
VIN Information
Freeze Frame
EVAP System
DTC Lookup
O2 Monitor Test
On-board Monitor

Car (US Domestic) carafter 1996 : Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ford, GM, GMC, Lincoln, Jaguar, Jeep, Pontiac, Saturn

Car (Europe) after 2003: Audi, Bentley, BMW, Fiat, Jaguar, Land Rover, Mercedes Benz, Mini, Porsche, SAAB, Smart, Sprinter, Volvo, VW

Car (Asia) after 2004: Acura, Daewood, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitshubishi, Nissan, Scion, Subaru, Suzuki, Toyota;

How one-click to activate the HD3200?

Step 1: Simply plug into the OBD port on your car and turn the ignition on, after the vehicle power on, the device will automatically startup;

Step 2: Connect WIFI. Go to Settings>WIFI;

Step 3: After successfully connecting to WIFI, go to Settings>Activation, click "Activate".

Note:1. If the "Activation failed" prompt appears on the screen, please check whether your network connection is normal. 2. Click activate directly to use it, no registration is required.

Other Advantages Features of the ANCEL HD3200

One-click Print

HD3200 scanner supports the printing function, which can print diagnostic report data such as vehicle information, fault codes, and data streams, and can also print software interface. ( Note :HD3200 printer need to buy extra )

Note: The printer and HD3200 diagnostic scanner are sold separately. If you need to print data, you can buy the printer at the bundle link below the link.

One-click Screenshot

This function allows you to save important information about vehicle diagnosis through one-click screenshots, and then you can view the screenshots in “DATA MANAGEMENT”.

One-click Upgrade （Lifetime Free Update Online）

With this scan tool, you can one-touch update the diagnostic software via wifi anytime and anywhere, and no need to update on the computer. Then you will get the latest diagnostic systems and vehicle database of this scanner.

One-click response

This diagnostic tool supports one-click response. You can give us your response via this function if you have diagnostic problems, ANCEL's professional technical team will provide you with excellent solutions.

Create/Email report

In the model menu, click the "Report" icon in the upper right corner to start creating Report.

Click the mailbox icon in the upper right corner of the "Report" page to send the diagnostic report to your mailbox.

Data Management

You can view the data saved by the system of HD3200 code reader, including diagnostic reports, screenshots, response Package List

1pc x ANCEL HD3200
1pc x Packing box
1pc x User Manual
1pc x 6pin & 9pin Connector For Trucks
1pc x 16pin OBD2 Connector For Cars
