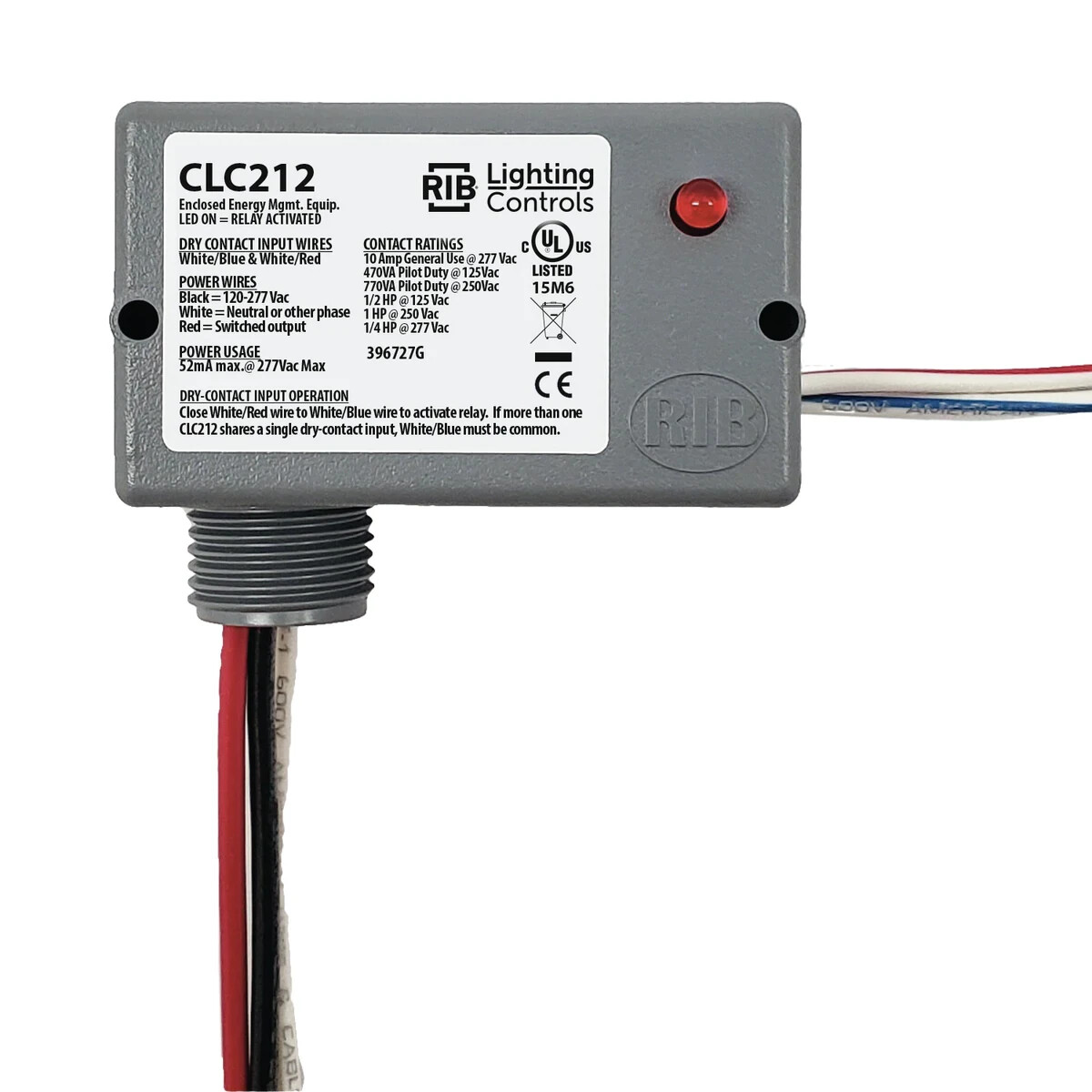

Automatic (RIB) CLC212 Closet Lighting Control Switch10A SPST, 120-277 V
Our closet light controllers are designed to switch a lighting load (ON/OFF)
determined by the opening or closing of a variety of switches for example
door jam switches, magnetic switches, ball switches, etc. This allows for
convenient closet light control.
Relays & Contact Type: One (1) SPST-N/O Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Relay Status: LED on = Activated
Dimensions: 1.70˝ x 2.80˝ x 1.50˝ with .50˝ NPT Nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, C-UL
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override Switch: No
Contact Ratings:
10 Amp General Use @ 277 Vac
1/2 HP @ 125 Vac
1 HP @ 250 Vac
1/4 HP @ 277 Vac
470 VA Pilot Duty @ 125 Vac
770 VA Pilot Duty @ 250 Vac
Power Usage:
50 mA @ 240 Vac Max
