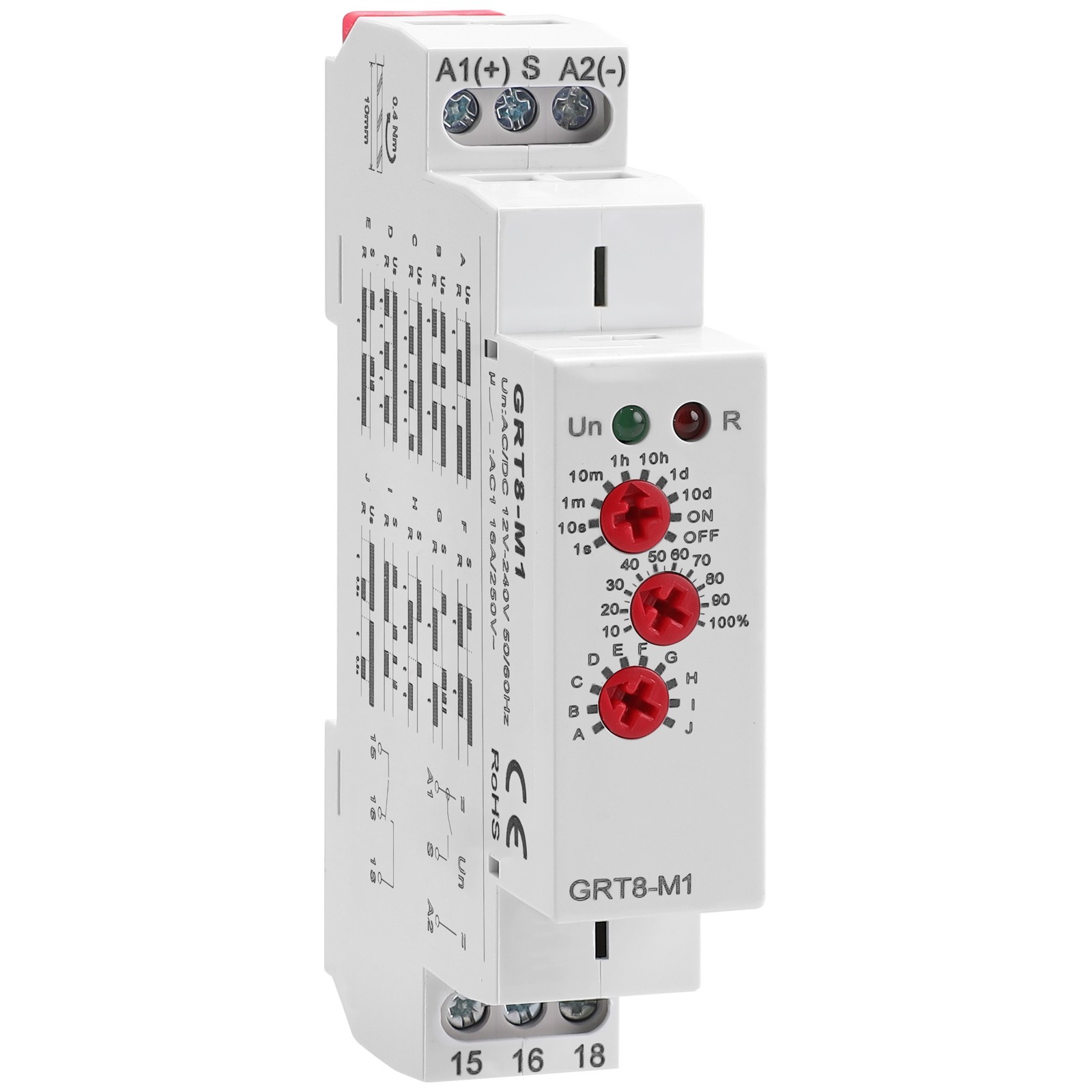

GRT8-M Multifunction Time Relay AC/DC 12-240V 16A 10 Timer Modes DIN Rail Mount For Sale

Industrial Product Template | ⚡IGEYAPA INDUSTRIAL ·ELECTRICAL · SOLUTIONS GRT8 Multi-Function Timer Relay 🔒 SAFE & SECURE ✅ 100% SATISFACTION 🚚 FAST SHIPPING 📦 Product Description

• FUNCTION & APPLICATION: GRT8-M1 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. It has a wide delay setting range from 0.1 seconds to 10 days, wide working voltage AC230V (50-60Hz), rated current of 16A. Output contact: 1SPDT (1NO1NC). This 12V time delay relay can be used in industrial equipment, lighting manufacturing, heating element control, motors to accurately control the delay time of changing lighting, heating, motors, machines, etc


• INDICATOR BUTTON: grt8 m1 ac dc 12-240v the working status of the delay relay is indicated by the LED : the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicating the stop of work). Refer to the detailed technical parameters for further customization and optimal performance: a. Select the desired function, e.g., A (Power-On Delay). b. Set the required delay time, e.g., 30 minutes. c. Adjust the time range knob to 1h. d. Turn the percentage knob to 50% for precise control.


• Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3.37 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact

⚙️ About Product 🔹 Item Details

• Brand: IGEYAPA
• Model: GRT8
• Contact Material: Brass
• Contact Type: Normally Open
• Current Rating: 16 Amps
• Mounting Type: DIN Rail Mount

🔹 Product Features

• Connector Type: Screw
• Operation Mode: Automatic
• Maximum Switching Voltage: 240 Volts
• Minimum Switching Voltage: 12 Volts
• Upper Temperature Rating: 131 Degrees Fahrenheit

Thanks for checking out our listing! 🛒

Before placing your order, please make sure you've selected the correct model. 📩 If you have any questions, please contact us right away. Your satisfaction is our top priority.
