Product Description:

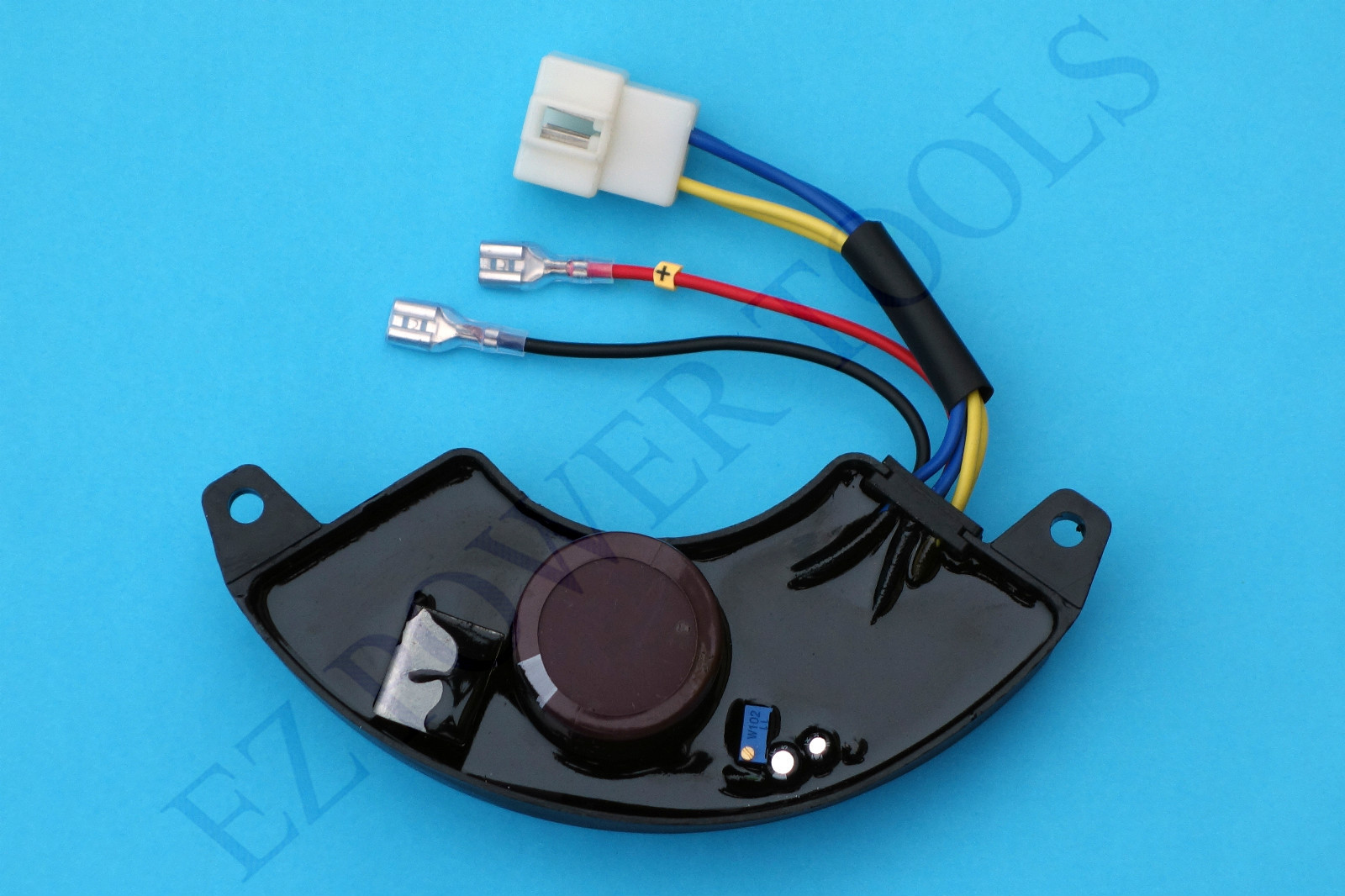

Premium Type A 4.0KW to 6.5KW Generator Automatic Voltage Regulator(AVR) for Brush Alternator, especially designed & developed for use with portable generators powered by China-made diesel engine 186F or gasoline engines 173F(242CC/8.0HP), 177F(270CC/9.0HP), 182F(337CC/11.0HP), 188F(389CC/13HP or 401CC/13HP/14HP). It works great as well for a generator of 3KW to 4KW powered by China-made 178F diesel engine. It is completely interchangeable with GTDK AVR up to 6.5KW power output.Alternator Rear Cover/Stand & Carbon Brush Assembly NOT Included and Sold Separately.Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out ofAtlanta, USAandEDT is about 1 to 3 business daysfor delivery in most areas of continental states.
Packing Contents: 1 X AVR-4565A.Special Note: A higher output AVR definitely works perfect on a generator of low power output while on the contrary, a low power output AVR CAN NOT be used for a generator of higher power output.Part Number:
AVR-4565A.It is also compatible with the following parts number:
6800S312, AVR-C5KW, AVR3-5KW, AVR5-1F, AVR-CD294, MXR250V470uF, Rubycon250V470uF, KMH250V470uF & KMG250V470uF.
Product Features:
- Built-in Full-Wave Output Bridge Rectification.
- Voltage Output Increase with Loading.
- Stable Voltage Output with Negative Voltage response.
- Over Voltage, Over Current and Short Circuit Protection.
- Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.
Technical Specifications:
- Maximum Output: DC 90V 3.5A.
- Excitation Voltage: 90V ~ 100V.
- response Voltage: 14V ~ 24V with an Average of 18V(Sampling Voltage).
- Frequency: 50/60Hz.
- AC Voltage Output: 120V/240V.
- Auto Voltage Adjusting Accuracy: ≤ ±1%.
- Maximum Temperature Rise: 130C or 266F.
- Continuous Working Time: >≥ 20 Hours.
- Installation-Center Distance: 140 ± 1mm (about 5.5 in).
