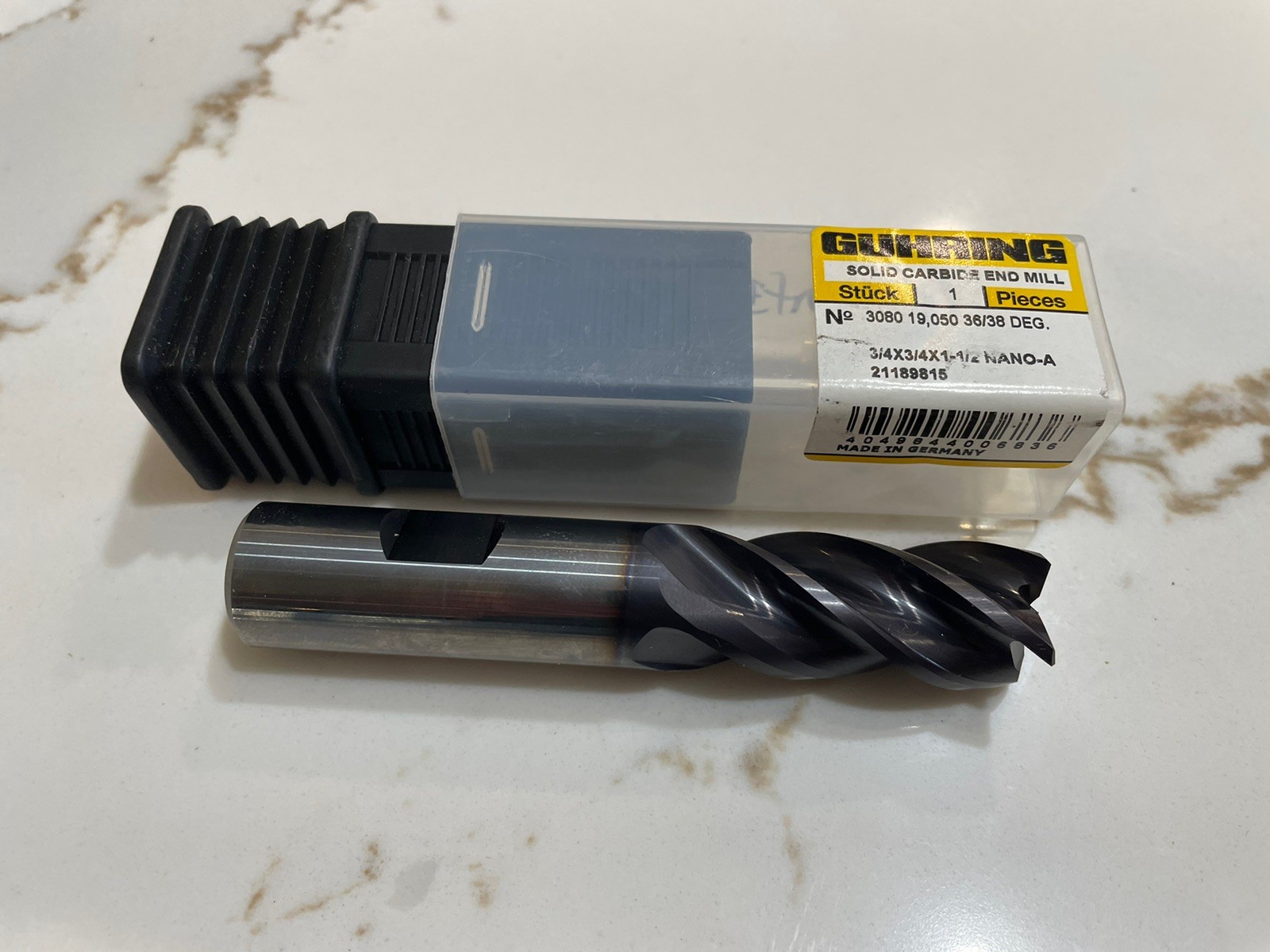

GUHRING 3/4” Corner Chamfer End Mill 4 Flute Solid Carbide nano-A Coat 89477509 For Sale

Specifications

Mill Diameter (Inch) 3/4 Mill Diameter (Decimal Inch) 0.7500 Number Of Flutes 4 Length of Cut (Inch) 1-1/2 Single Or Double End Single End Mill Material Solid Caroffere Chipbreaker No Coating/Finish nano-A Overall Length (Inch) 4 Centercutting Yes Flute Direction Right Hand Variable Index No Helix Angle 36; 38 Cutting Direction Right Hand Coolant Through No Overall Length (Decimal Inch) 4.0000 Length Of Cut (Decimal Inch - 4 Decimals) 1.5000 Length Type Regular Flute Type Spiral Extended Reach No Shank Type Weldon Flat Shank Diameter (Decimal Inch) 0.7500 Shank Diameter (Inch) 3/4 Minimum Helix Angle 36 Maximum Helix Angle 38 Mill Diameter Tolerance h10 Shank Diameter Tolerance h6 Primary Workpiece Material Stainless Steel; Steel UNSPSC Code 27112803 Primary Workpiece Material Code P; S; M Secondary Workpiece Material Cast Iron Secondary Workpiece Material Code K Material Grade Proprietary Series 3080 Country of Origin Germany
