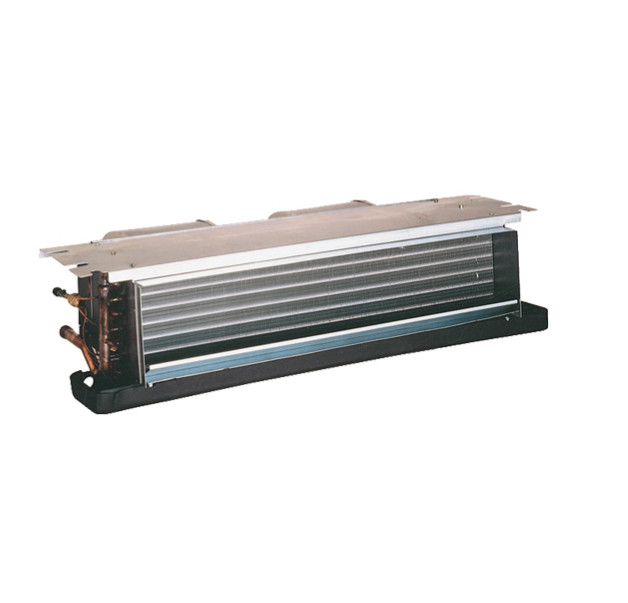

Goodman 2.5 Ton 30,000 BTU Goodman Ceiling Mount Air Handler ACNF300816:
$434.99
The Goodman ACNF300816 Ceiling Mounted Air Handler is designed for use with R-410A refrigerant and may be installed in a variety of locations.
Features
- Check flowrater for heat pump and cooling-only applications
- All-Aluminum tube/aluminum fin coil
- Direct-drive, resilient-mount, multi-speed motor
- Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
- High-efficiency evaporator coil
- Quiet operation
- PSC Motor
- Available with and without heat
- AHRI Certified; ETL Listed
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
Specifications
- Brand: Goodman
- Model/SKU: ACNF300816
- Cooling Capacity: 30,000 BTU
- Tonnage: 2.5 Ton
- Blower Motor Type: PSC Multi-Speed Motor
- Maximum Airflow: 1075 CFM
- Electric Heat: 8 Kilowatts
- Configuration: Ceiling Mounted
- Refrigerant Type: R-410A
- Liquid Line Size: 3/8"
- Suction Line Size: 3/4"
- Electrical Requirements: 208/230V, 1 Phase, 60 Hz
- Maximum Breaker Size: 40 Amps / 45 Amps
- Dimensions:
- Height: 6 1/2"
- Width: 49 1/4"
- Depth: 21"
- Weight: 79 lbs
|
|
