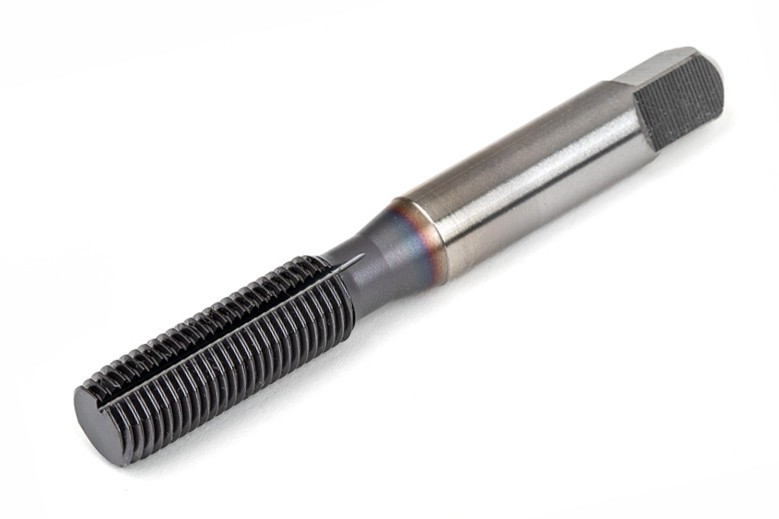

Haas 3/8\"-24 UNF HSS-PM Roll Tap 0.381\" Shank x 0.98\" Thread Length 3XD:
$109.15
System of Measurement
Inch - ANSI
Thread Series
UNF - Unified Natl. Fine
Thread Size
3/8\"-24
Tap Type
Roll Tap
Chamfer Type
Modified Bottoming
Shank Type
Square
Material
HSS-PM
Coating
TiCN
[TPI] Threads per Inch
24 tpi
Tap Drill Diameter
0.356 in
[ØDC] Cutting Diameter
0.375 in
[ØDMM] Shank Diameter
0.381 in
[L2] Chamfer Length
2P - 3P
[L1] Thread Length
0.98 in
[LU] Usable Length
1.252 in
[OAL] Overall Length
2.937 in
[SS] Square Size
0.286 in
[FHA°] Helix Angle
0
Length / Diameter
3 X D
Thread Class
GH7
Through Spindle Coolant
No
