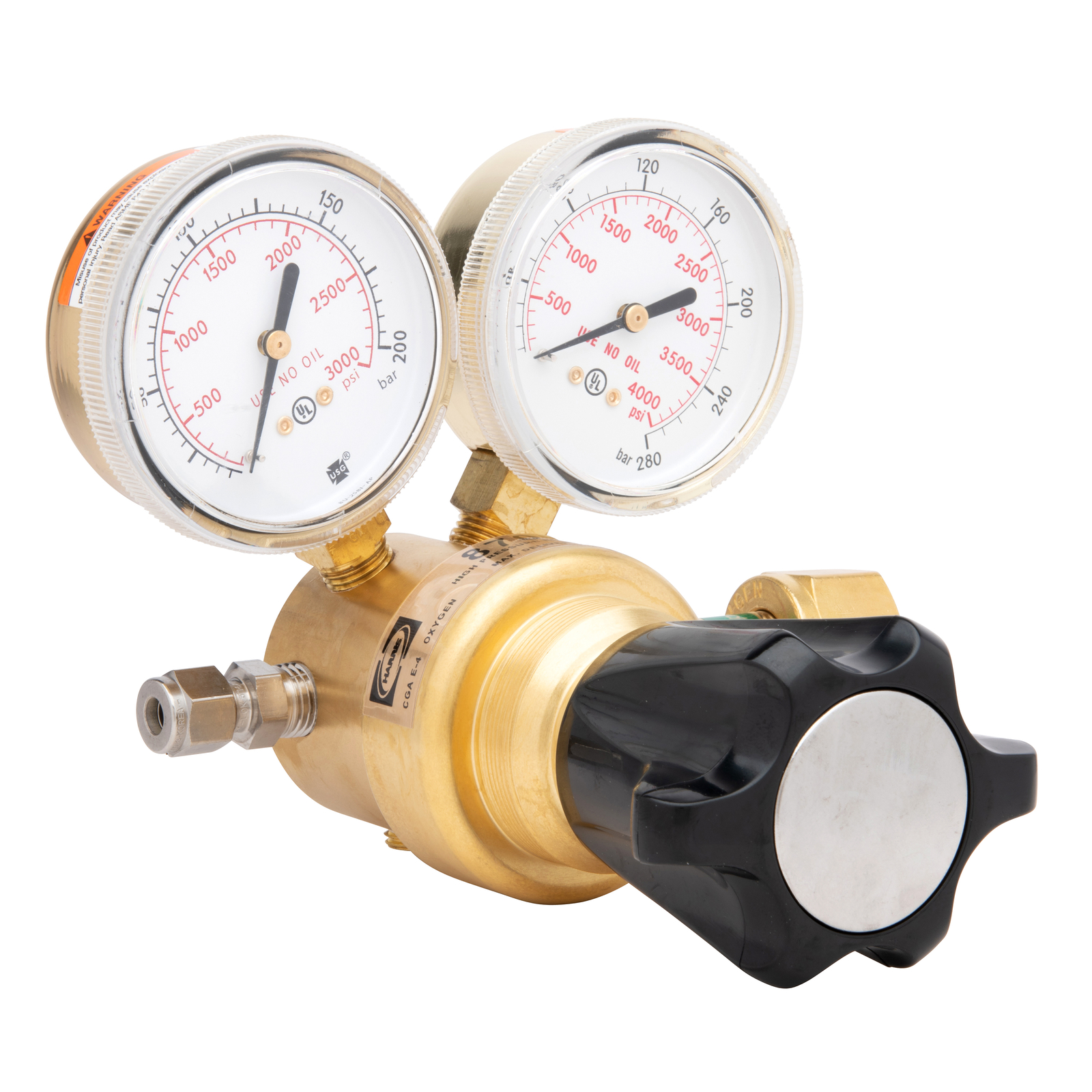

MIG WeldingTIG WeldingPlasma CuttingEngine DrivesWelding HelmetsGas EquipmentCable & Accessories Harris Model 8700-2500-540 Oxygen Ultra High Delivery Pressure Regulator 3200307 Product Details Model HP8700 is a single-stage brass regulator that is designed to operate on ultra high-pressure cylinders up to 7500 psig.
The Model HP8700 is suitable for high pressure testing charging accumulators and pressurizing struts for hydraulic systems and aircraft/heavy equipment.
This model features a brass body bonnet and dual scale (psig/bar) gauges ergonomic plastic knob for improved grip and ease of adjustment of the delivery pressure, and one-piece encapsulated seat that is design with internal filter and CTFE (Kel F®) seat. It has a 1/4" NPT outlet with stainless steel 1/4" tube fitting.
Product Features
- Operates on high pressure cylinders up to 7500 psig
- Brass barstock body and bonnet and brass nozzle for longer service life
- Ergonomic ABS plastic knob for improved grip and precise adjustment
- 2.5" Brass barstock dual scale easy-to-read gauges (psi/bar)
- One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PCTFE(Kel-F™) seat from particulate contamination
- Neoprene diaphragm for greater sensitivity and improved performance
- 1/4" NPT outlet with stainless steel 1/4" tube fitting
- Suitable for high pressure testing, charging accumulators and pressurizing aircraft struts
- Conforms to CGA E-4 standard for gas pressure regulators
Product Specifications
- Model: 8700-2500-540
- Product Type: Single-Stage Pressure Regulator
- Gas Service: Oxygen
- Maximum Inlet Pressure: 3000 PSIG
- Delivery Pressure Range: 0-2500 PSIG
- Delivery Pressure Gauge: 4000 PSIG
- Supply Pressure Gauge: 4000 PSIG
- Inlet Connection: CGA 540
- Outlet Connection: 1/4 in SS Tube Fitting
- Duty Rating: Ultra High Pressure
- Cv: 0.08
- Weight: 5.8 lb / 2.63 kg
- Pressure Regulation: 3.3 PSIG per 100 PSIG
Applications & Notes
- CGA E-4
- One-piece encapsulated seat with internal filter and CTFE seat
- Inert-gas and air models may be self-relieving; SG denotes oxygen Surge Guard
