Specifications:Color: BlackMaterial: Steel, CopperProcess: FinishingVoltage: DC12VPower: 800WSpeed: 2850 rpmDisplacement: 0.65 ccLoading Speed: 25 mm/0.98 in/sMax. Thrust in Straight Direction: 2 T/4409 lbsSupport Force: 2 T/4409 lbsMax. Load Capacity: 2 T/4409 lbsCylinder Stroke: 200 mm/7.87 inCylinder Diameter: 50 mm/1.97 inCenter Distance between Two Holes: 38.5 cm/15.16 inRod Diameter: 28 mm/1.1 inBore Diameter: 16 mm/0.63 inUse Frequency: 2.5 Min Work, 2.5 Min IntermittentWaterproof Rating: IP54Product Width: 16 cm/6.3 inRetracted Length: 43.85 cm/17.26 inExtended Length: 63.85 cm/25.14 inPackage Size: 60 × 20 × 13 cm/23.62 × 7.87 × 5.12 inGross Weight: 15 kg/33.07 lbsNet Weight: 12 kg/26.46 lbs

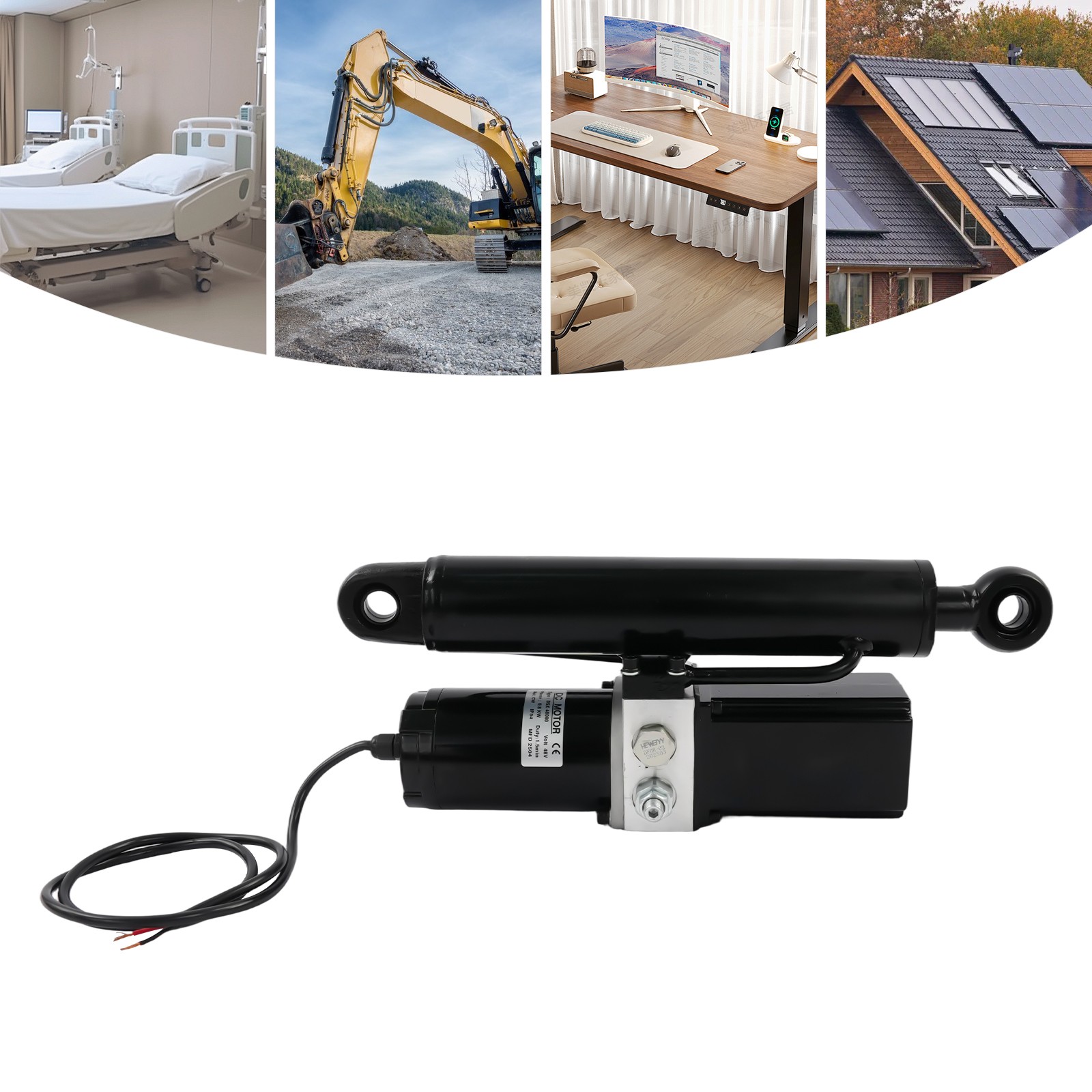

Heavy Duty Electro-Hydraulic Actuator 8\" Stroke 4409 lbs Lift 12V 800WDescription
The electro-hydraulic actuator is a remarkable engineering tool that seamlessly combines electrical efficiency with hydraulic precision. This device acts as the driving force behind complex automation and heavy machinery, where precise force application and control are essential. Think of it as a conductor\'s baton, skillfully directing intricate mechanical movements with outstanding accuracy. ⚙️
Stable and Durable: Crafted from high-quality steel and copper, this actuator boasts excellent performance. With an IP54 waterproof rating, it resists dust and moisture, ensuring longevity even in harsh environments. 🌧️
Efficient Working: Featuring a powerful motor that operates at 2850 rpm, it achieves a loading speed of 0.98 in/s and can handle a maximum load capacity of up to 2 tons, making it versatile for various applications.
Strong Power: Utilizing an electric motor as its power source, it generates pressure oil through a offerirectional gear pump, controlling it to the oil cylinder for smooth reciprocating motion of the piston rod.
Overload Protection: Designed with overload protection, it can start under load without risking damage to the motor or machine components.
Convenient Speed Regulation: This actuator supports wireless push and pull speed regulation, accommodating a wide range of driving forces for different applications.
Smooth Running: The full hydraulic transmission ensures sensitive action and smooth operation, effectively buffering external impacts.
Two-way Self-locking Function: The integrated oil circuit features a pressure self-locking mechanism, allowing the piston rod to lock in place when the motor stops, maintaining pressure.
Easy Maintenance: Compared to purely mechanical or large hydraulic systems, this actuator has a compact structure and good sealing, making routine maintenance straightforward.
This actuator is ideal for a variety of industries, including electric power, machinery, metallurgy, mining, petroleum, chemical, transportation, lifting, construction, food processing, dump trailers, lifting platforms, solar tracking systems, and wheelchair Black
Material: Steel, Copper
Process: Finishing
Voltage: DC12V
Power: 800W
Speed: 2850 rpm
Displacement: 0.65 cc
Loading Speed: 25 mm/0.98 in/s
Max. Thrust in Straight Direction: 2 T/4409 lbs
Support Force: 2 T/4409 lbs
Max. Load Capacity: 2 T/4409 lbs
Cylinder Stroke: 200 mm/7.87 in
Cylinder Diameter: 50 mm/1.97 in
Center Distance between Two Holes: 38.5 cm/15.16 in
Rod Diameter: 28 mm/1.1 in
Bore Diameter: 16 mm/0.63 in
Use Frequency: 2.5 Min Work, 2.5 Min Intermittent
Waterproof Rating: IP54
Product Width: 16 cm/6.3 in
Retracted Length: 43.85 cm/17.26 in
Extended Length: 63.85 cm/25.14 in
Package Size: 60 × 20 × 13 cm/23.62 × 7.87 × 5.12 in
Gross Weight: 15 kg/33.07 lbs
Net Weight: 12 kg/26.46 lbs
What’s in the Box:
Usage Tips:
Always check the specifications before purchasing.
Read the instruction manual thoroughly before installation and use, paying special attention to safety instructions.
Care & Maintenance:
This electro-hydraulic actuator is a reliable choice for your automation needs. Don’t miss out on enhancing your machinery with this powerful tool—order yours today!
