High Voltage Silver Plated Copper PTFE 22 AWG Wire 9 KV Gore CRN1317 25 feet:
$42.50

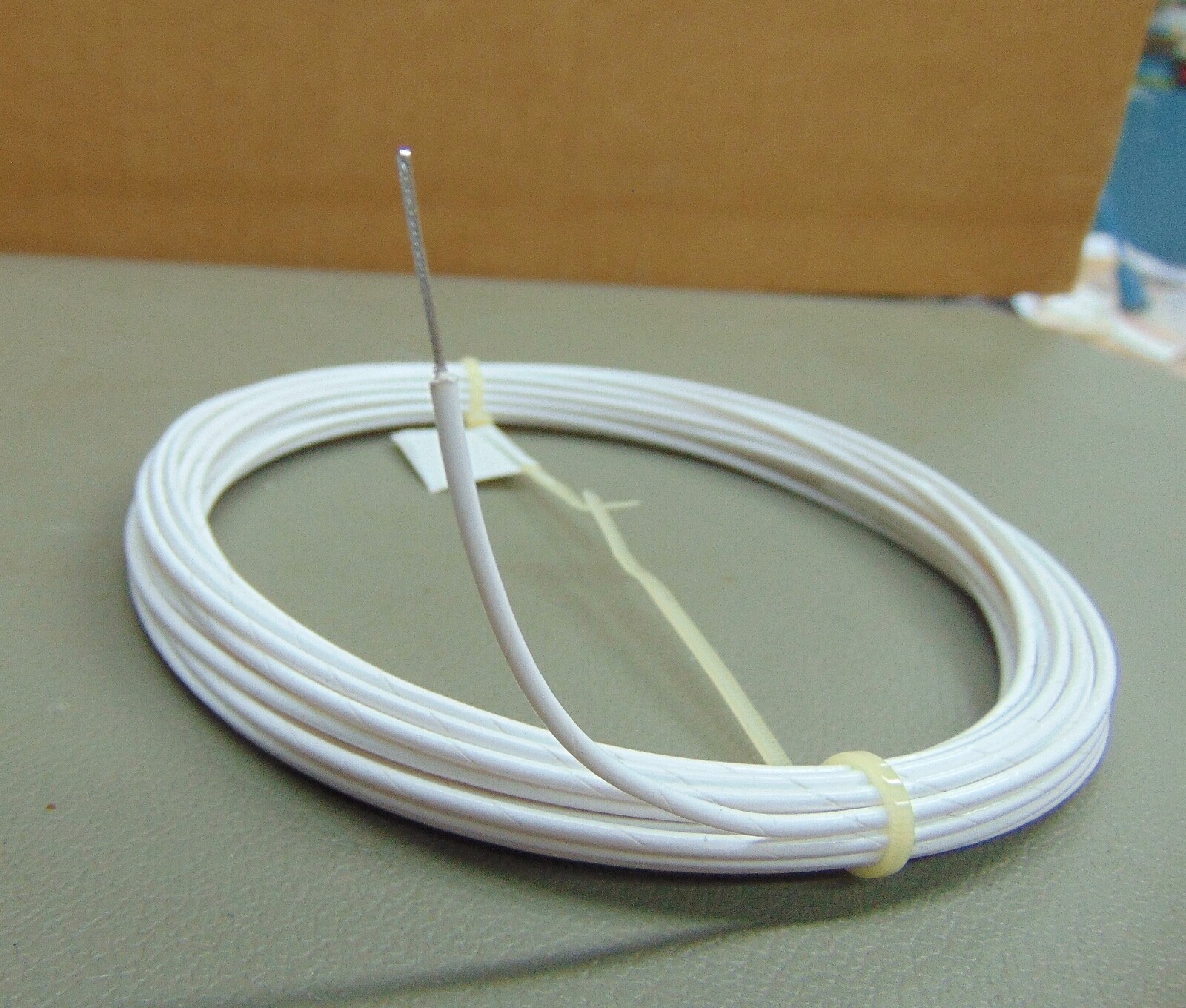

This is high voltage silver plated copper wire with PTFE (Teflon) insulation. High voltage wire with PTFE insulation is not thick and bulky as high voltage wire with silicone rubber or polyethylene. This wire is 22 AWG stranded with 19 strands. It is made by Gore in the USA. The Gore part number is CRN1317. The mil. spec number is HMS2-1526-22UN-020-09. The voltage rating is 4000 volts AC 9000 volts DC. The conductor diameter is 0.0300 inch. The Insulation wall diameter is 0.020 inch. The outside diameter is 0.0720 inch. The temp rating is 200C. This is very high quality wire and the best high voltage wire available made in the USA. This is a 25 foot length of wire. If you buy more than one I will ship it as a continuous length.
