Hose Assembly Flexible Tubing 10921189 Eaton Aeroquip 276614-20-16S34 NOS For Sale

110' FEET Continental Contitech Hydraulic Oil Hose M8788-12 4720005548088 $548.99 Shop Hose Assembly Flexible Tubing 10921189 Eaton Aeroquip 276614-20-16S34 NOS

WHAT IS IT:

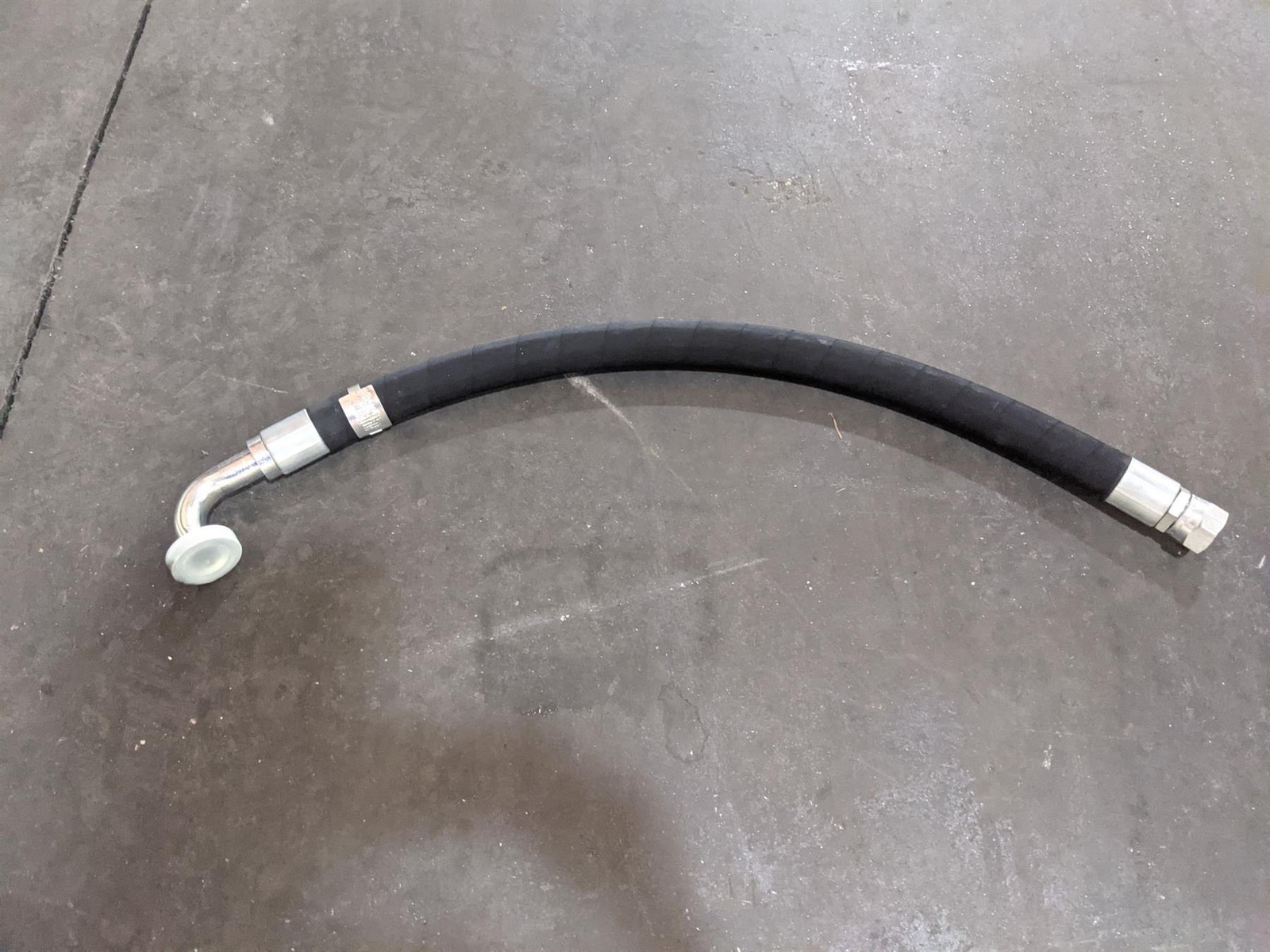

Hose Assembly Flexible Tubing 10921189 Eaton Aeroquip 276614-20-16S34 NOS Military

DETAILS - SPECS:

HOSE OR TUBING SPEC/STD DATA MIL-H-13531 TYPE 2,CLASS A SPECIFICATION

INNER CONVEYING TUBE MATERIAL RUBBER, BUTADIENE ACRYLONITRILE

INSIDE SURFACE CONDITION SMOOTH

LAYER COMPOSITION AND LOCATION 1ST LAYER BRAIDED STEEL WIRE 2ND LAYER BRAIDED STEEL WIRE OUTER LAYER MOLDED RUBBER, CHLOROPRENE

OUTER COVERING ENVIRONMENTAL PROTECTION MILDEW RESISTANT AND OIL RESISTANT AND OZONE RESISTANT

EXTERIOR COLOR ANY ACCEPTABLE

CROSS-SECTIONAL SHAPE STYLE 1 ROUND

INSIDE DIAMETER 1.000 INCHES NOMINAL

OUTSIDE DIAMETER 1.500 INCHES NOMINAL

MEASURING METHOD AND LENGTH 34.875 INCHES NOMINAL WORKING

MINIMUM INSIDE BENDING RADIUS 11.000 INCHES

FIRST END CONNECTION TYPE THREADED INTERNAL TUBE

FIRST END STYLE DESIGNATOR C3 SWIVEL NUT FLARE

FIRST END SEAT ANGLE IN DEG 37.0

FIRST END CONNECTION DESIGN STRAIGHT

FIRST END SWIVEL ACTION CAPABILITY NOT INCLUDED

FIRST END FITTING/COMPONENT AND MATERIAL COMPLETE FITTING STEEL, QQ-S-633-CANCELED

FIRST END FITTING/COMPONENT AND SURFACE TREATMENT COMPLETE FITTING CADMIUM, QQ-P-416, TYPE 2, CLASS 2

FIRST END THREAD SERIES DESIGNATOR UN

FIRST END NOMINAL THREAD SIZE 1.312 INCHES

FIRST END THREAD QUANTITY PER INCH 12

FIRST END THREAD CLASS 2B

FIRST END THREAD DIRECTION RIGHT-HAND

SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL

SECOND END CONNECTION TYPE PLAIN FACE FLANGE

SECOND END STYLE DESIGNATOR G1 PLAIN

SECOND END FLANGE CONSTRUCTION SOLID

SECOND END FLANGE SHAPE STYLE 6 ROUND W/BOLT HOLES

SECOND END FLANGE OUTSIDE DIAMETER 2.000 INCHES NOMINAL

SECOND END FLANGE THICKNESS 0.560 INCHES NOMINAL

SECOND END CONNECTION DESIGN ELBOW

SECOND END FLOW ANGLE IN DEG 97.0

SECOND END SWIVEL ACTION CAPABILITY NOT INCLUDED

SECOND END FITTING/COMPONENT AND MATERIAL COMPLETE FITTING STEEL, QQ-S-633-CANCELED

SECOND END FITTING/COMPONENT AND SURFACE TREATMENT COMPLETE FITTING CADMIUM, QQ-P-416, TYPE 2, CLASS 2

TEMP RATING -65.0 DEG FAHRENHEIT AND 250.0 DEG FAHRENHEIT

MAXIMUM OPERATING PRESSURE 2000.0 POUNDS PER SQUARE INCH

HYDROSTATIC TEST PRESSURE 4000.0 POUNDS PER SQUARE INCH

BURST TEST PRESSURE 8000.0 POUNDS PER SQUARE INCH

MANUFACTURERS CODE 19207

DESIGN CONTROL REFERENCE 10921189

CONDITION:

BRAND NEW

BRAND:

LOCKHEED MARTIN

MPN:

10921189

CROSSOVER - INTERCHANGE - COMPATIBLE WITH:

10921189

276614-20-16S34 EATON AEROQUIP

4720004304231

4720004304231

FG2028MMN0340 EATON AEROQUIP

APPLICATION - USED ON IN - WHAT IS IT FOR:

Suitable for use with M-109 M-110 Tank

FIELD ARTILLERY AMMUNITION SUPPORT VEHICLE (FAASV) HOWITZER, M-109 SERIES, U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM HOWITZER, M-109 SERIES FIELD ARTILLERY AMMUNITION SUPPORT VEHIC HOWITZER, M-109 SERIES SPACE COAST IC, INC.
