Hydraulic Top Link Cat 2-2 with Locking Block 9 11/16-28\'\' with 2x Hose Black US For Sale

Details

Material: Steel

Color: Black

Process: Polishing and Welding

Surface Treatment: Painting

Pull Force: 2.5t/5511lbs

Thrust Force: 3.5t/7716lbs

Model: 19 11/16-28\'\'

Stroke: 21cm/8.26in

Bore Diameter: 6.3/7.6cm(2.48/2.99in)

Rod Diameter: 3.5cm/1.37in

Joint Bearing Width: 6.4cm/2.51in

Joint Bearing Thickness: 2cm/0.78in

Pin Diameter: 2.5cm/0.98in

Max. Length: 71cm/27.95in

Min. Length: 50cm/19in

Port Size: M14*1.5

Hydraulic Cylinder Work Pressure Max: 20Mpa

Double Pilot Check Valve Port Size: G3/8

Double Pilot Check Valve Press Max: 30Mpa

Double Pilot Check Valve Flow Max: 12L/min

Hydraulic Oil Hose Length: 75cm/29.52in

Hydraulic Oil Hose Port Size: G3/8*19

Packing Size: 60*10*10cm/23.62*3.94*3.94in

Gross Weight: 13kg/28.89lbs

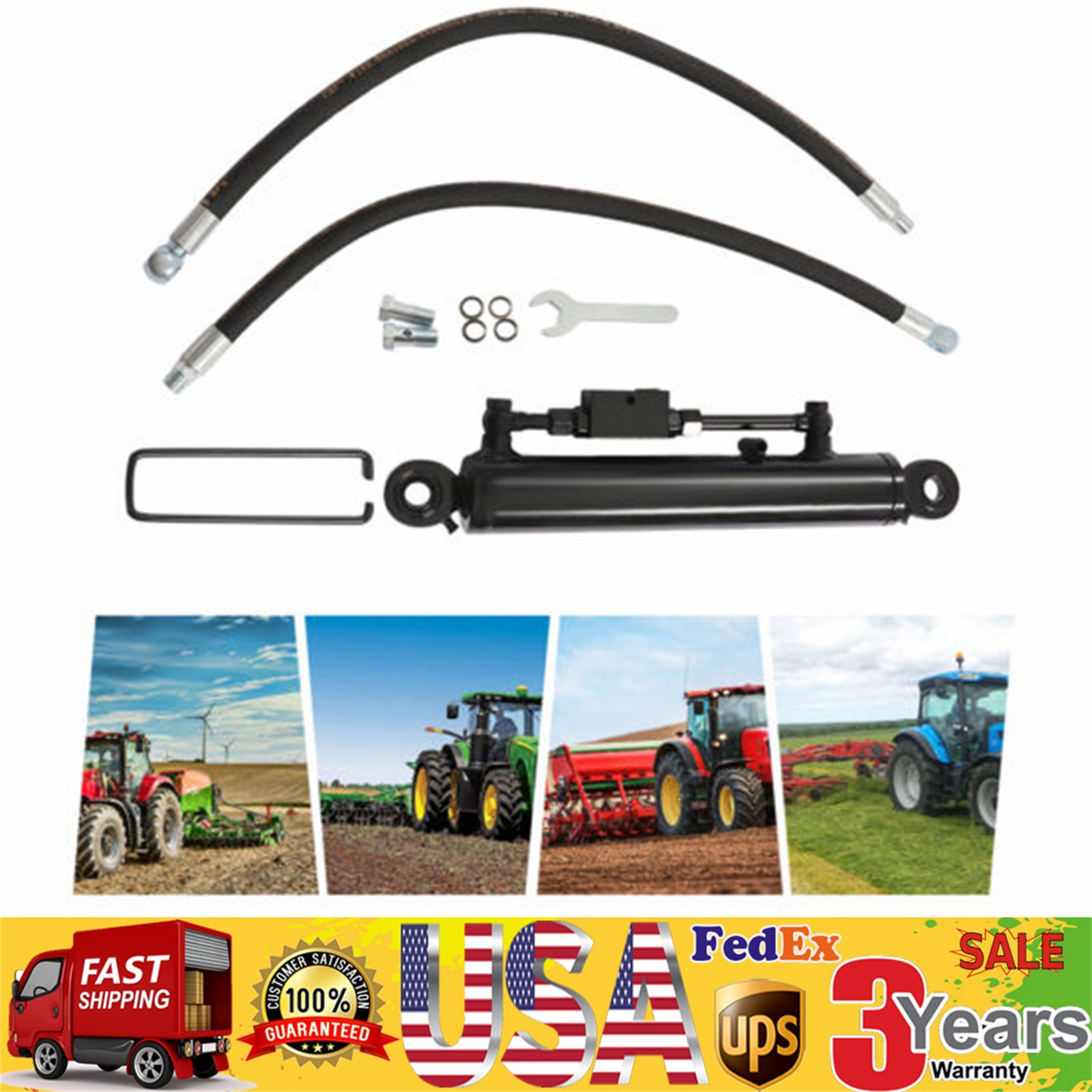

Items included

1* Double-acting Hydraulic Cylinder

2* Hoses

2* Banjo Bolts

3* Sealing Rings

1* Wrench

1* Bracket

1* English Manual

Description

This double-acting hydraulic cylinder converts the input hydraulic pressure energy into the mechanical energy of the piston\'s linear motion, thus providing strong pull and thrust for all types of mobile equipment. Its compact shape provides stable performance in compact devices. Through the welding and polishing process, the fixation is more durable, and it is also an ideal choice for applications in harsh environments.

Key Features

Strong and Durable: It is made of high-quality steel, with a painted finish, which is solid,wear-resistant, rust-proof, and corrosion-resistant, ensuring a long service life.

Complete Accessories:In addition to the double-acting hydraulic cylinder, the package is also equipped with hoses, banjo bolts, sealing rings, and a wrench, making it convenient for your use and installation without additional configuration and purchase.

Excellent Performance:Its high-strength steel piston, precision threaded gland with wear ring, polished hard chrome plated rod, and high tensile welded steel base ends enable our hydraulic cylinder to be suitable for various heavy applications and can withstand exxtreme weather.

Two-Way Design: It is equipped with a two-way check valve, which can complete retraction and extension. The valve allows free flow in one direction, and the pressure drop is relatively small. In the opposite direction, it is usually closed, and the valve can be opened only when there is pilot pressure from another oil circuit.

Good Sealing: The piston adopts a high-quality five-component compact seal for excellent performance, and the rod adopts a standard U-cup polyurethane rod seal with inner O-ring, POM-C wear rings, and polyurethane wiper to ensure excellent sealing performance, which is helpful to solve the problems of oil evaporation, air leakage, and piston blockage.

Strong Hydraulic Power: The double-acting hydraulic cylinder can exert linear motion and force through the hydraulic system(maximum working pressure of 20Mpa), without the need for mechanical gear or lever to generate 5511lbs pull force and 7716lbs thrust force. So, it can achieve maximum performance even under heavy loads.

Compact Design:This double-acting hydraulic cylinder has a compact structure and can be used for mobile equipment with small installation space, and is also convenient for maintenance and repair.

Protective Transportation:In order to prevent the products from being scratched and colliding during transportation, we use five layers of corrugated boxes and add fillers to fix them, to maximize the protection of your products.

Customer Service:We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as Lock Check Valve: The hydraulic lock check valve can lock the circuit and prevent the circuit oil from flowing, so as to ensure that the cylinder can still keep its position even if there is a certain load outside, which makes the operation process more smooth, safe, and reliable.

Practical Hose: The hose is made of rubber and steel wire, which has good toughness, and oil resistance and is not easy to crack for long-time use. It comes with G3/8 * 19 connector, which is convenient for you to use and install directly.

Support Bracket:A removable bracket is included in the package to provide secure can be directly mounted on tractors, excavators and Class 1 and 2 equipment and is widely used in waste, recycling, construction, transportation, agriculture, material treatment and other Always check the cleanliness of oil for pollution. Please do not weld on the tube

2. Please note that the rod must be lubricated. At the same time, pay attention to protect the rod when cleaning.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
