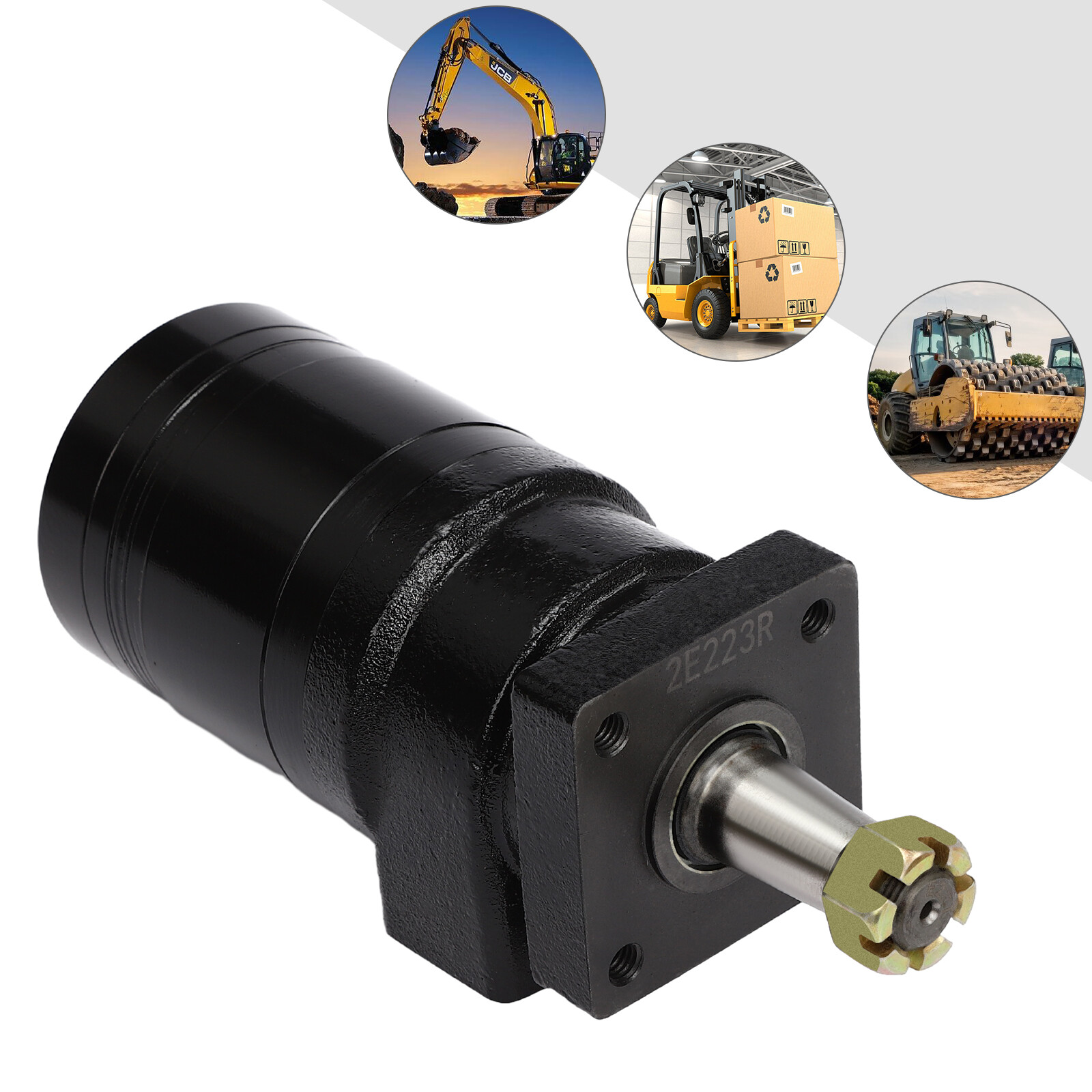

Wheel Motor, Hydraulic Motor, Hydraulic Wheel Motor 1-603718Description
This hydraulic motor has the characteristics of small size and lightweight, but high torque and speed. Compared with other transmission methods, it is more energy-efficient and has higher work efficiency. The sturdy cast iron material ensures its high performance, long lifespan, and safe and reliable features. If you need a hydraulic motor, why not try this product?
Key Features
Build to Last: Cast iron makes the whole product have high resistance to corrosion, wear, and heat, and not easy to rust so that it can remain beautiful and practical for a long time.
Good Sealing: The high-pressure sealing ring can effectively prevent oil leakage, not only ensuring a smooth use process but also saving you costs.
Strong Power: This product has a maximum continuous speed of 247 RPM and a maximum continuous torque of 378 N.m, providing continuous and powerful power.
Excellent Pressure Resistance:This product can withstand a maximum back pressure of 5 megapascals, and even in harsh environments, it still has good working ability.
Careful Design: The high-quality bearings make the product have a strong radial force and high-pressure resistance, so you can use it safely.
Simple to Use: The one-piece structure allows you to use the product directly without an additional assembly.
Effortless Cleaning: The smooth surface and simple structure allow you to remove dust and residues with a towel easily.
Customer Service: Communication is the best way to solve problems. If you encounter any problem after purchase, please contact us in time. We will do our best to solve the problem for you.
Details
4 Flange Holes: They can help firmly secure this product to the instruments that need to be installed.
Rounded Edges: The rounded edges can effectively prevent you from being accidentally injured in the process of use.
Application
It applies to industrial, logistics, agricultural, refitting, engineering machinery, industrial machinery, construction machinery, shipbuilding and aviation, harvester equipment, excavator equipment, light machinery equipment, various types of automobiles, and more.
Specification
Color: Black
Material: Cast Iron
Model: BME 2-230
Installation Method: 4 Flange Holes
Max. Speed: 247 (Con.)/328 (Int.) RPM
Max. Torque: 378 (Con.) * 528 (Int.) N. m
Max. Flow Rate: 57 (Con.)/75 (Int.) L/Min/15.06 (Con.)/19.81 (Int.) gal/Min
Max. Pressure: 12 (Con.)/16.5 (Int.) Mpa
Displacement: 226 cm³/7.64oz ³/ Rev
Port A Specification: 7/8-14
Port B Specification: 7/8-14
Recommended Anti-Wear Hydraulic Shaft: No. 68
Working Temperature: Within 80℃/176℉
Max. Back Pressure: Within 5 MPa
Product Size (D * H): 9.66 * 24.1cm/3.8 * 9.49in
Packaging Size: 31 * 17 * 13cm/12.2 * 6.69 * 5.12in
Gross Weight: 9kg/19.84lbs
Net Weight: 8.2kg/18.08lbs
Package Included
1*Hydraulic Motor
Notes
- Please confirm the compatibility before purchasing.
- When ordering and replacing a hydro pump, please always replace the wheel motor and lines, flush the tanks, and install a new oil filter. Not doing so could cause the hydro pump to fail due to contamination.
- This product is not allowed to be used simultaneously at maximum speed and maximum pressure.
- It is recommended to run the product at 30% load for one hour first, and then run it at full load.
