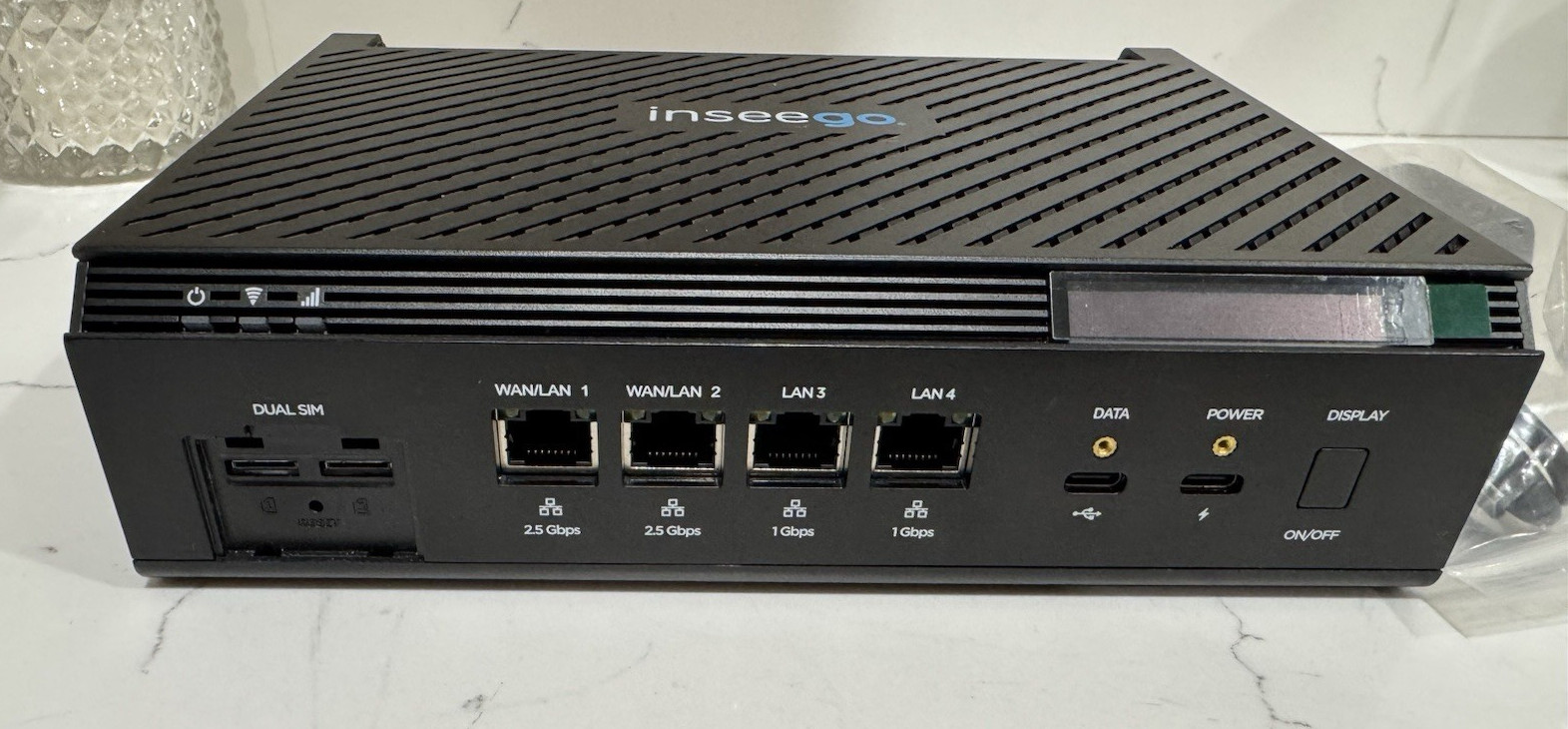

Device is in Good conditions with moderate signs of use and has been fully tested. Device comes without original box and packaging. Device is missing battery cover. Device works as intended other then minor signs of use. Please see images.Device is Ready for Activation .
Device comes unlocked, so can be used on any GSM or CDMA carrier.
Device comes with Original battery, High Quality charging cable and Wall adapter.
DUAL Physical Sim Device.
IMEI: 016785000226827
Clean IMEI/ESN for Activation on all GSM and CDMA networks locally and worldwide.Specifications :
Chipset
Powered by Qualcomm Dragonwing™ FWA Gen 3 Platform
SIM typeDual SIM (2x Nano 4FF)
Carrier certifiedInseego FX4200 is certified for the following carrier networks:
Certified for T-MobileCertified for T-Mobile
Certified for VerizonCertified for Verizon
Certified for AT&TCertified for AT&TNetwork connectivity*5G NR (SA/NSA) with 3x Downlink CA and 2x Uplink CA
4x4 MIMO 5G sub-6 GHz
4G LTE Cat 20 fallback
4x4 MIMO 4G LTE
Bands supported5G sub-6: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48, n66, n70, n71, n77 (ext 2A), n78 (ext 2A)
4G LTE Cat 20: 2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 30, 38, 41, 42, 43, 46, 48, 66, 70, 71
Wi-FiWi-Fi 7 with 2x2 MU-MIMO
802.11be with EasyConnect standards
Simultaneous dual-band Wi-Fi
Full power AP Wi-Fi (30dBm) with mesh
Connects up to 256 Wi-Fi enabled devices
Primary and guest networks
Display3x LED for device, Wi-Fi, and cell status
Single line display for Wi-Fi & cell details, status, mesh pairing, and FOTA updates
BatteryRechargeable Li-ion back-up battery
Power24W (12V, 2A) AC power adapter
USB-C power
Ports2x 2.5 GbE RJ45
2x 1GbE RJ45
1x USB 3.1 Type-C data
1x USB PD Type-C power
4x external full spectrum SMA cellular antenna (.6-6 GHz each)
Internal antennas6x WWAN antennas (4 dBi peak gain)
2x Wi-Fi antennas
1 GPS antenna
Operating temperature32 °F to 104 °F (0 °C to +40 °C)
Operating system featuresSeamless WAN failover and failbackWAN prioritizationFirewallVPN passthroughIP PassthroughNetwork slicingOn-device speed testIPv4 and IPv6 with XLAT supportWPA2/3 personal and enterpriseSecure local user interfaceData usage monitoringFIPS 140-3 OpenSSLWired and wireless Wi-Fi mesh supportCloud-based managementInseego Connect remote managementInseego Mobile™ appInseego Connect API support2Firmware management and schedulingAutomatic carrier selectionRemote troubleshooting and diagnosticsZero-touch deploymentOn-device speed testNotifications and alertsGPS with map locationIPsec VPN and OpenVPNData usage monitoringAccessories (sold separately)Inseego Wavemaker mesh Wi-Fi X700
External antennas
FeaturesPerformanceThe FX4200 features simultaneous dual-band Wi-Fi 7 mesh and 5G NR technology, supporting up to 256 connected devices. Powered by the Qualcomm Dragonwing™ FWA Gen 3 Platform and a high-performance quad-core processor, it delivers ultra-fast speeds — up to 7.5 Gbps down / 3 Gbps up — with seamless coverage and intelligent failover.
SecurityBuilt for enterprise-grade protection, the FX4200 features FIPS 140-3 compliant OpenSSL, IPsec/OpenVPN, secure boot, encrypted configuration backup/restore, and advanced routing features such as network slicing. Designed and developed in the U.S., it meets stringent security standards for sensitive business environments.
FlexibilityUse the FX4200 as a primary WAN connection or a failover solution with dual SIM support and automated dual WAN switching. Its compatibility with Inseego Mesh Wi-Fi X700 and support for wired/wireless mesh backhaul make it ideal for scalable deployments across multiple locations.
ReliabilityEquipped with dual SIM failover, out-of-band management capabilities, and a rechargeable battery backup, the FX4200 ensures uninterrupted connectivity even during power or network outages. It’s engineered for 24/7 uptime in mission-critical environments.
Ease of useThe FX4200 offers zero-touch provisioning, automatic carrier selection, and smart diagnostics for fast setup. The Inseego Mobile app guides users through installation and optimization, while Inseego Connect provides centralized cloud-based management, monitoring, and remote updates via API.
