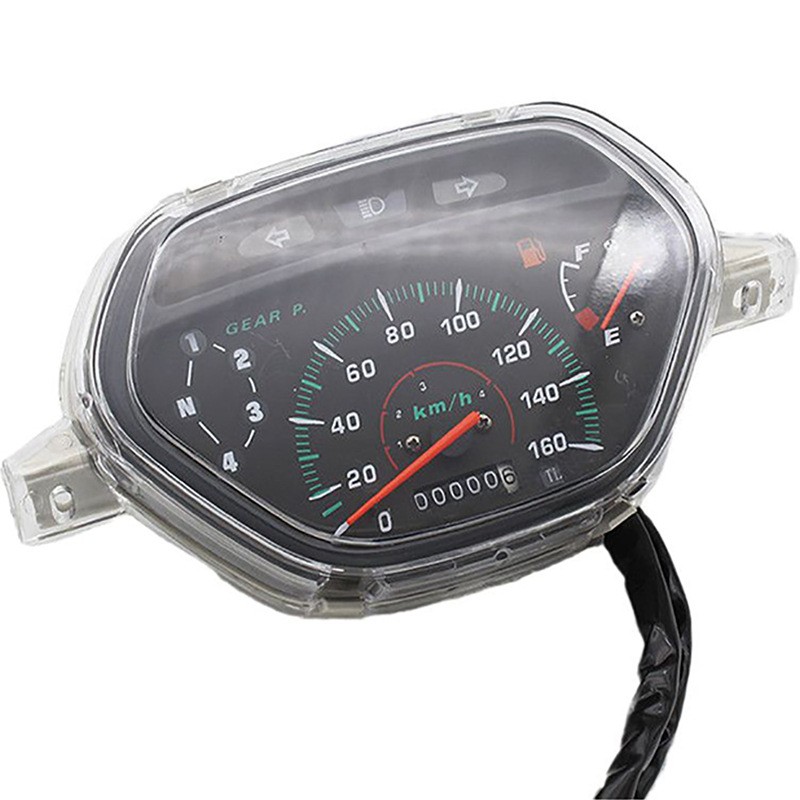

Instrument Cluster Speedometer Gauge – for TBT110 110cc Underbone Replacement gauge that fits TBT110 and compatible 110cc underbone models. Displays speedometer, odometer, fuel level, and indicator lights – restores full gauge function. Clear lens, durable plastic housing. Plugs in and bolts on directly, no modification needed. Aftermarket part – verify connector and mounting pattern before ordering.
Overview
This instrument cluster speedometer gauge serves as a replacement for the current unit on TBT110 110cc underbone motorcycles and compatible models. The cluster shows key riding information including speed, odometer, trip meter, and indicator lights for turn signals, high beam, and neutral. Over time, the existing gauge can become damaged, faded, or fail – replacing it with this unit can help restore full instrument function and improve visibility while riding.
Compatibility Reference
BrandModel / SeriesNotesTBT110cc UnderboneDirect fit for TBT110 platformHondaWave / Supra / XRM (110–125cc)Verify connector and mounting compatibilityYamahaCrypton / Jupiter (110cc)Verify connector and mounting compatibilitySuzukiSmash / Step (110cc)Verify connector and mounting compatibilityGeneric110cc Underbone / Cub‑styleVerify connector and mounting compatibility
Note: This table is for reference only. Fitment may vary by model year and regional specification – verify your current cluster\'s connector type, mounting points, and wiring pinout before ordering.
Key Features
Fits as a replacement – built to vehicle specifications, no modification required in most cases
Analog speedometer – displays speed with a traditional dial and needle for easy reading
Odometer and trip meter – tracks total and trip distance
Indicator lights – built‑in warning indicators for turn signals, high beam, and neutral
Backlit display – illuminated for nighttime visibility
Durable construction – made with quality materials to withstand daily riding conditions
Easy bolt‑on installation – uses existing mounting points and connector (verify pinout before installation)
Installation (Brief)
Disconnect the vehicle\'s battery negative terminal.
Remove the old instrument cluster from the handlebar or fairing.
Disconnect the wiring harness from the back of the old unit.
Install the new cluster and reconnect the wiring harness.
Secure with the existing mounting hardware.
Reconnect the battery and test all functions – speedometer, odometer, and indicators.
Important Notes
This is an aftermarket replacement product.
Fitment verification – confirm your current cluster\'s connector type and wiring pinout before ordering.
Speedometer calibration – speed reading may vary between models – verify compatibility with your wheel and tire size.
If the cluster does not work after installation, check the connector seating and wiring pinout.
Periodically check the cluster and mounting bolts for secure attachment – vibration can loosen hardware over time.
Condition: Brand New – Aftermarket Replacement
