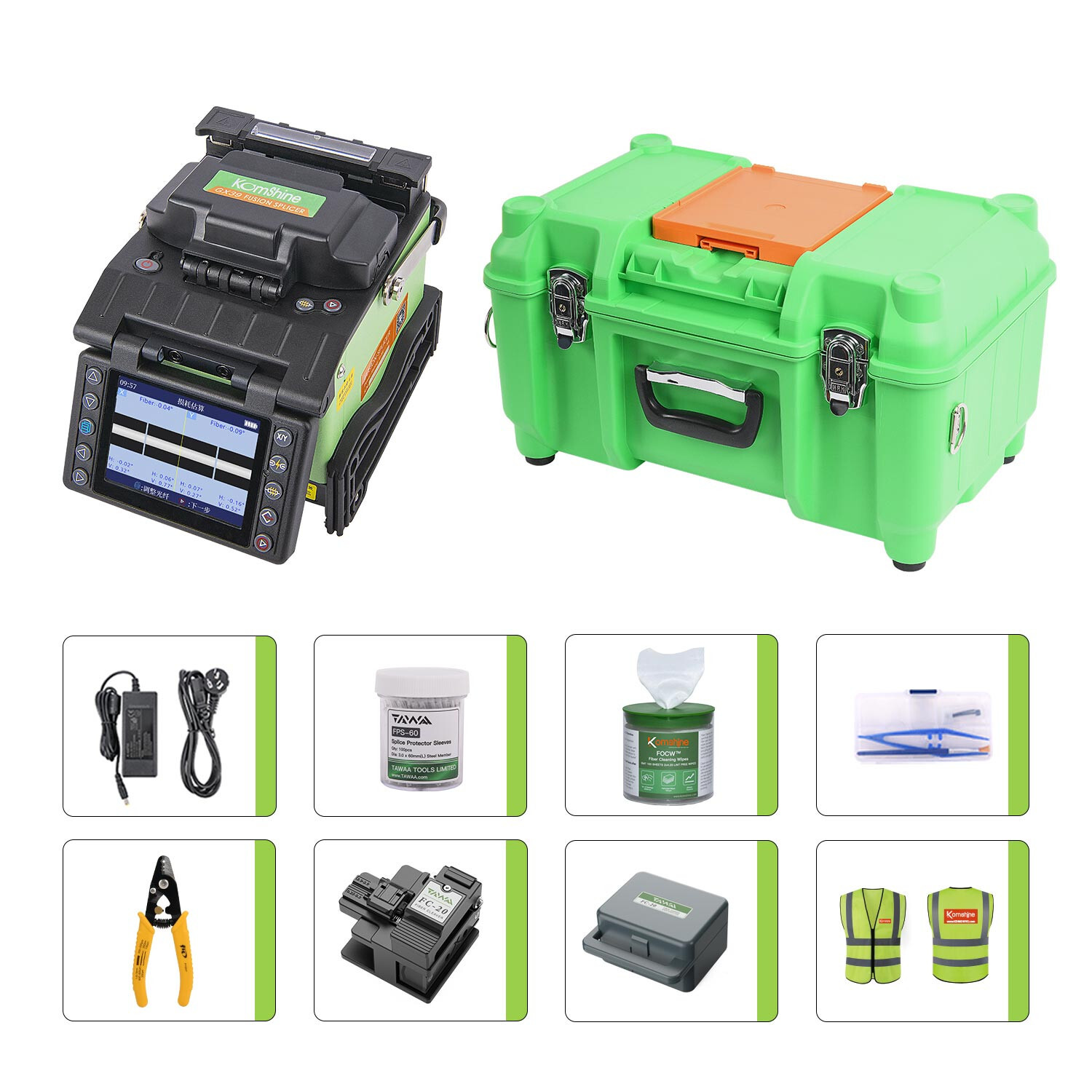

Komshine GX39 FTTH Optical Fiber Fusion Splicer Welding Splicing Machine with 9s Splice
Description:
Komshine GX39 FTTH optical fiber fusion splicer is widely used in industries such as fiber-to-the-home, fiber-optic cable rapid termination, machine room jump fibers remediation and so on. Its newestall-in-one fixture design can splicingvarious optical fibers.The machine has automatic, manual, and semi-automatic functions to choose. At the same time, the machinesmall in size;light weight;anti-shock and drop resistance; the volume is 40% smaller than the traditional welding machine and the weight is only 1.77KG. 5200mAh large-capacity lithium battery, which can be connected and heated more than 350 times after being fully charged.
Adventages:
[ Fast-splicing: 9S Fast-heating: 20s ] [ 3000 Times ElectrodeServicelife ] [ Average Lossunder0.01dB ] [ 5200mAh Battery Capacity. Circular Welding 350 times ] [ 3.5Inch 800 x 480 HD LCD Screen ] [ Real Time Discharge Correction. Stable Fiber Splicing ]
Specification:
Type
GX39
Fiber Type
SM(G652 &G657) 、 MM(G651)、DS (G653)、NZDS(G655)
Actual Splicing Loss
0.02dB（SM） 0.01dB（MM） 0.04dB(DS/NZDS)
ControlTechnique
Real-time control and correction of welding arc; Self-adaptation within working environment; Self-adaptive electrode oxidation
Return Loss
Better than 60dB
Tube Typical Splicing Time
9S(Standard SM)
Tube Typical Heating Time
20S(Heating time can be set. Heating temperature can be adjusted)
Fiber Aligning Method
Meticulous ; Core ; Clad ; Manual
Fiber Diameter
Clad Diameter is 80 ~ 150μm; Coating100 ~ 1000μm
Cutting Length
Coating layer＜250μm: 8 ~ 16 mm; Coating 250 ~ 1000μm: 16mm
Heat-shrinkable Sleeve
60 mm、40 mm and a series of thermal sleeves
Tension Test
Standard 2N(can choose)
Fiber Clamp
Suitable for Bare fiber, Tail fiber, Jumper wire, Leather wire
Fiber Image Magnification
300X(X-axis or Y-axis); 150X(X-axis and Y-axis)
Graphical Display
3.5Inch TFT Color LCD,can be flipped, convenient offerirectional operation
External Port
USB 2.0 interface, convenient for data download, using U disk upgrade software
Splicing Program
100(User Mode) ; 53(Factory Mode)
Heating Program
40 (User Mode) ; 11 (Factory Mode)
Fusion Splicing Record
Saved 10000 groups splicing results.100 sets of latest Images
Internal battery
Lithium battery 12.5V power supply (10.8V storage), independent charger, charging time ≤3.5,heating time no less than 350 times(Typical)
Power Supply
Power supply connector, external adapter (Import AC:AC100~240V,50/60Hz, 0~1.5A, Export DC:DC13.5v/4.8A)
