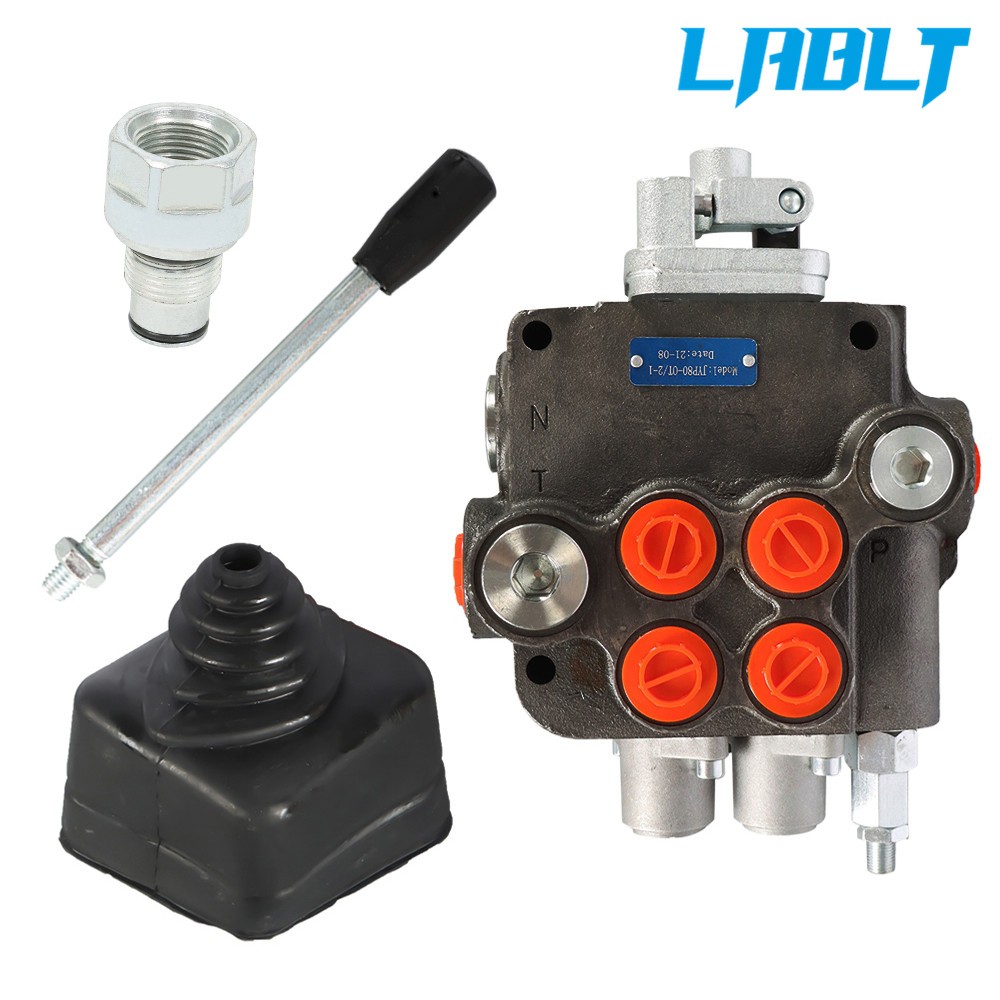

Description:Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSIFlow Rating: 21 GPM (80 l/min)A & B Work Ports: #10 SAE O-Ring (7/8”-14) ThreadInlet Port: #10 SAE O-Ring (7/8”-14) ThreadOutlet Port: #12 SAE O-Ring (1-1/16”-12) Thread3 – 5/16” Mounting Holes2 Spool valve with compact design allows for installations in tight areasAll spools are standard double acting with spring return to neutral position which are ideal for double acting cylindersUsed for open center systems (Pump to Tank Flow) - closed center option availableAnti-drop load checks on each spool LABLT Hydraulic Control Valve with Joystick w/conversion plug 21 GPM 2 Spool
Description:
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 21 GPM (80 l/min)
A & B Work Ports: #10 SAE O-Ring (7/8”-14) Thread
Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
Outlet Port: #12 SAE O-Ring (1-1/16”-12) Thread
3 – 5/16” Mounting Holes
2 Spool valve with compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (Pump to Tank Flow) - closed center option available
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of Closed Center or Power Beyond (conversion plug required)
Vertical or horizontal handle mount
Adjustable Relief Valve Range: 1500 to 3625 PSI
Used as motor or single-acting spool possible (#10 SAE port plug required)
This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.
Operate hydraulic cylinders (Double-Acting or Single-Acting)
Operate hydraulic motors ("D" Spool Required)
Install rear remotes on a tractor
Port Sizes: PT: 7/8" NPT, AB: 3/4" NPT, Port C: 7/8" NPT
Package Includes:
21GPM 2 Spool Hydraulic Directional Control Valve for Tractor Loader w/Joystick conversion plug required
About LABLT：
LABLT has rich experience in the production, sales and after-sales service of Industrial parts. For many years, we have been committed to providing professional and personalized services to enhance the shopping experience of buyers. If you need any parts, please come to LABLT to buy them. We look forward to cooperating with you!
Item SpecificsCountry of Origin United StatesBrand LABLTMPN OM134298OCMaximum Flow Rate 21 gpmType Control ValvesValve Operation ManualSpool Count 2-SpoolCapable of Closed Center or Power Beyond With conversion plug required
