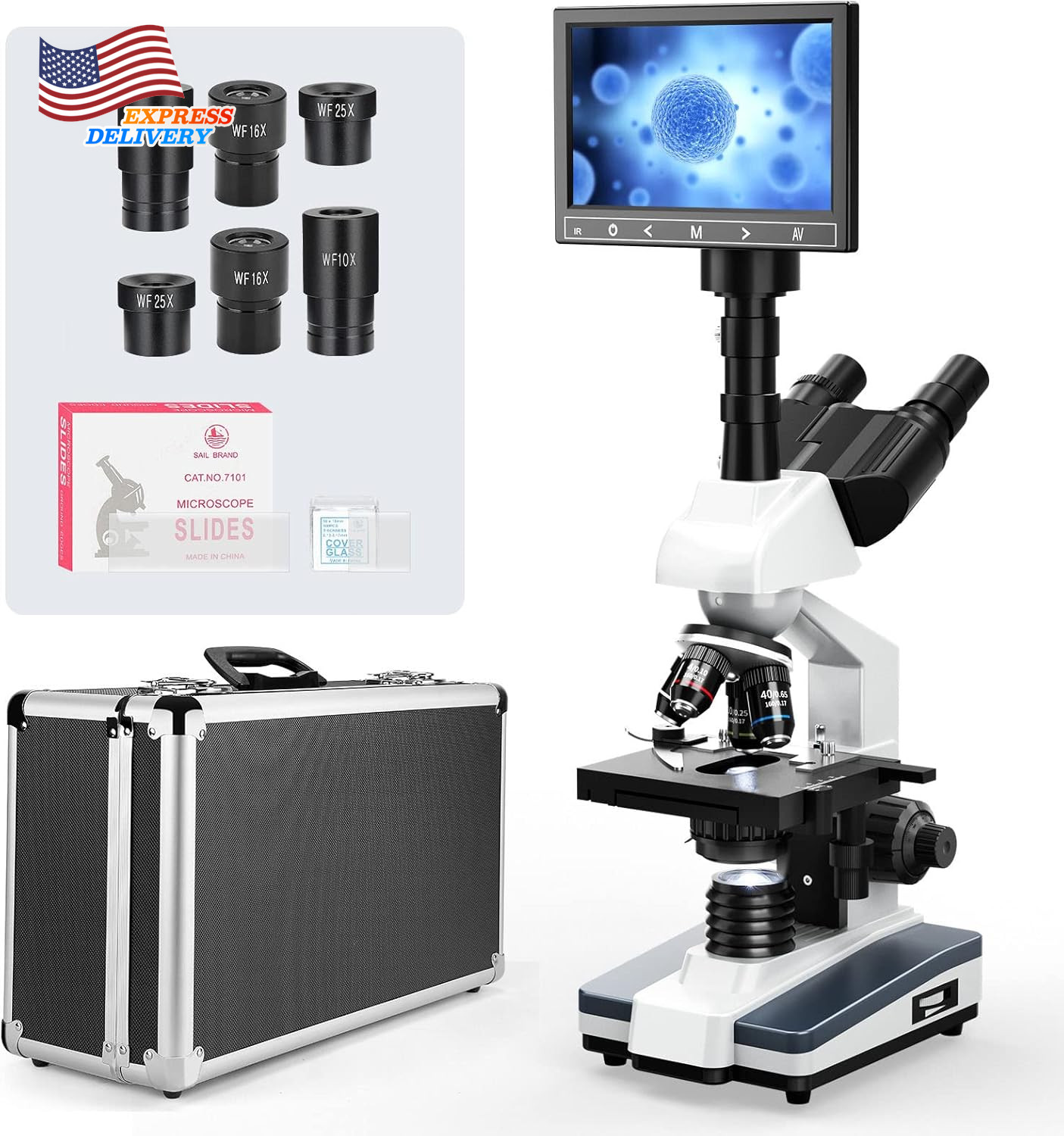

Lab Compound Trinocular Microscopes 40X-2500X Magnification with 7" LCD ScreenDescription Item model number VB-M002-G Light Source Type LED Style Brightfield Trinocular Model Power Source AC Color White Real Angle of View 30 Degrees Material Aluminum Objective Lens Description Achromatic Item Weight 6.21 Kilograms Voltage 110 Volts (AC) Magnification Maximum 2500.00 Package Dimensions 20 x 12.5 x 9 inches
- [Upgrade function]: Vabiooth Biological Microscope has a 5MP Electronic Eyepiece 360 degree 7" large LCD display and an Adjustable Mechanical Stage,ideal for researching the aquatic fish disease, mites, algae research.
- [Eyepieces & LCD Screen]: Equipped with WF10X/25X/16X glass eyepieces fixed at an ergonomic 30 degree tilt to reduce neck strain, easily adjustable for different interpupillary distances without losing focus, 5MP E-eyepiece and 360 degree 7" LCD display allows you to get a larger field of view directly from the screen without an external large screen display, provide a more comprehensive view and enable sharing. 4 Achromatic objectives offer 4x 10x 40x(s) 100x(Spring Oil).
- [Double-layer mechanical stage & LED light]: With 1.0mm stage divisions, locks slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide. LED illumination, and 1.25 NA Abbe condenser with iris diaphragm for clear examination and light control
- [Best Gift & Carry Case]: Comes with aluminum carry case which is the perfect to protect the device and accessories, best gift for microbiological enthusiasts.
- [Takes still photo and video]: Support with Video capture card to make the microscope get this function.
Product description
- VB-M002 Vabiooth Compound Trinocular Microscope
- The VB-M002 boasts design elements that make it powerful enough for laboratory use, while still remaining user-friendly as a teaching tool in high school, university, and clinical settings. Serious hobbyists will also find much to love with this microscope's adaptability features, such as swappable oculars and objectives, and cost-effective cost enables every micro enthusiast and academic researcher to obtain a medium and high-end professional microscope instrument at an affordable cost.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. video Merchant Video
- How to take still shots and videos?
The monitor cannot take still shots and videos, but the monitor makes viewing specimens clearly and without any distortion, you can use the phone's "professional mode" to take the picture or videos directly.
On the other hand, you can purchase a "USB 2.0 Audio Video Capture Card" and you can take pictures or videos to your PC.
This is the most economical way and is dozens of times cheaper than microscope cameras.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. video Merchant Video
- How to show the speciment on the monitor?
(1)Turn on the microscope. (2)Adjust the light.(3)Push back the arm of the specimen holder. (4)Push back the specimen holder arm.(5)Center the specimen using the X and Y-axis knobs on the mechanical stage.(6)Move the objective lens to 4X. (7)Use the coarse-focusing knob to bring the specimen into view. (8)Use the fine-focusing knob to adjust the focus for a clearer image.
Open the aperture and field diaphragms to their widest position when using the 4X or 10X objectives for the best quality.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. video Merchant Video
1 Pet Hospital2 Farms3 Animal Husbandry4 Scientific Experiment1 7" HD display screen2 Objective3 Mechanical Stage1 Coarse and Fine focusing2 LED illumination3 High grade packagingVB-M002 Feature Eyepieces WF10X H16X and WF25X eyepieces 4 Objective lenses 4X, 10X, 40X (Spring), 100X (Spring, Oil) Magnification levels 40X, 64X, 100X, 160X, 250X, 400X, 640X, 1000X, 1600X, 2500X Interpupillary distance 55-75mm Adjustable ocular diopter +/- 5dp Head 30 degree inclined, 360 degree rotatable trinocular head Mechanical stage Mechanical stage with rack stop, 110x120mm Mechanical stage Stage x-y travel range: 70x30mm Abbe condenser NA 1.25 Abbe condenser with iris diaphragm Knobs Coaxial coarse and fine focus knobs LED light Transmitted illumination with 1W LED bulb, adjustable brightness Power supply 110-240V power input ABOUT US
