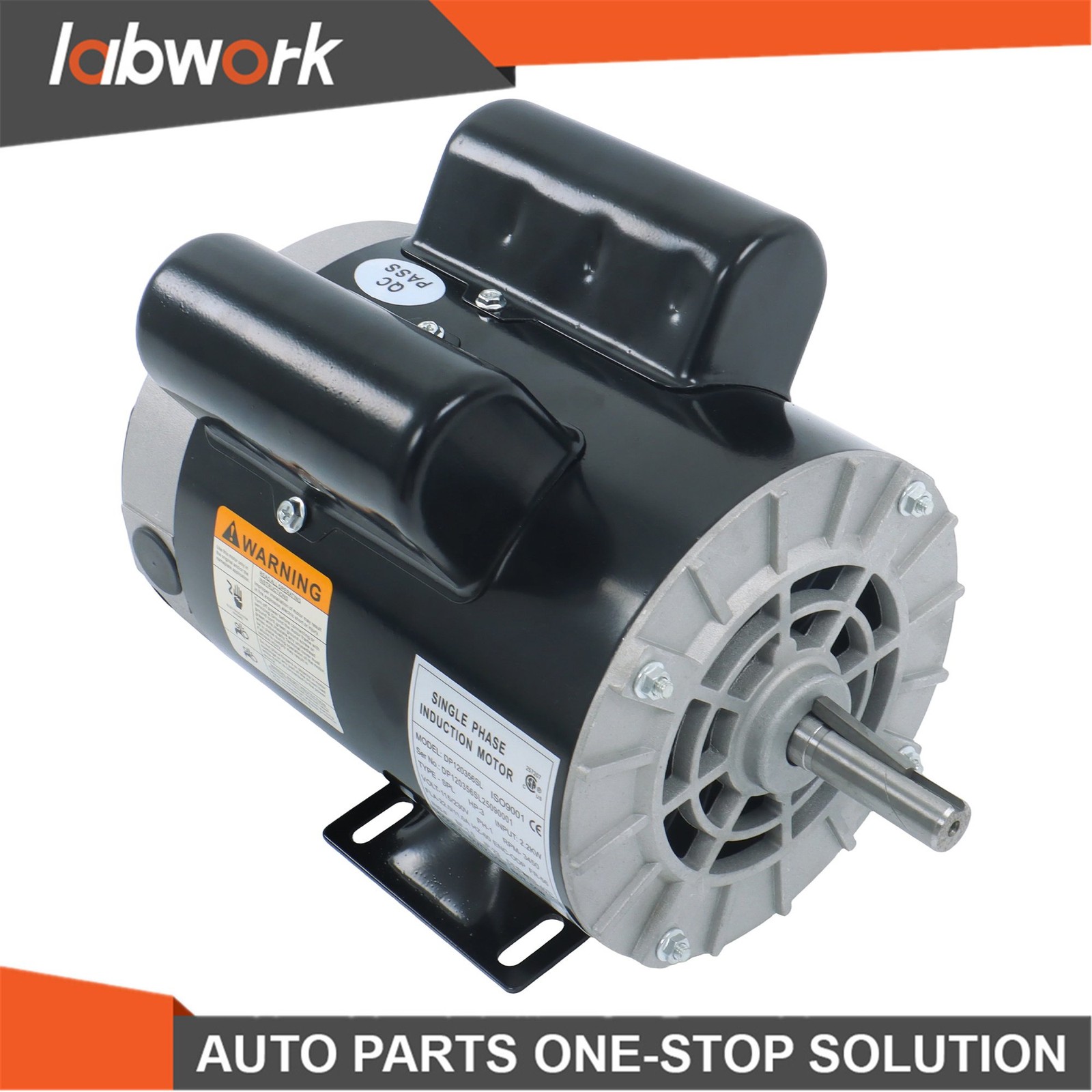

Labwork Electric Motor 3 HP SPL 3450RPM 56 Frame 1Phase 115-230Volt For Sale

Specification：

Model: CM03256

Type: SPL

Input: 2.2 kW

Horsepower: 3 HP SPL

Voltage: 115/230V

Phase: Single Phase, 2 Pole

Amperage: 22/11A

Rated Speed: 3450 RPM

Frequency: 60 Hz

Synchronous Speed: 3600 RPM

Frame: 56 Frame

Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft

Shaft Length: 1.875 in / 4.8 cm

Rotation: CCW

Service Factor: 1

Efficiency: 80%

Insulation Class: F

Mounting Type: Base-Mounted

Enclosure Type: ODP (Open Drip-Proof)

IP Rating: IP 23

Current Type: AC

Single Phase Electric Motor

Sturdy Steel Construction

Overload Thermal Protector

Fast Heat Dissipation

Labwork Electric Motor 3 HP SPL 3450RPM 56 Frame 1Phase 115-230Volt

Specification：

Model: CM03256

Type: SPL

Input: 2.2 kW

Horsepower: 3 HP SPL

Voltage: 115/230V

Phase: Single Phase, 2 Pole

Amperage: 22/11A

Rated Speed: 3450 RPM

Frequency: 60 Hz

Synchronous Speed: 3600 RPM

Frame: 56 Frame

Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft

Shaft Length: 1.875 in / 4.8 cm

Rotation: CCW

Service Factor: 1

Efficiency: 80%

Insulation Class: F

Mounting Type: Base-Mounted

Enclosure Type: ODP (Open Drip-Proof)

IP Rating: IP 23

Current Type: AC

Single Phase Electric Motor

Sturdy Steel Construction

Overload Thermal Protector

Fast Heat Dissipation

ODP for Dry Phase Electric Motor: This Air Compressor Electric Motor Runs At 3 Hp Spl. Rated Speed: 3450 Rpm, Input: 2.2 Kw, Voltage: 115/230v, Amperage: 22/11a, Frequency: 60 Hz, Synchronous Speed: 3600 Rpm, Frame: 56 Frame, Shaft Diameter: 5/8 In / 1.6 Cm Keyed Shaft, Shaft Length: 1.875 In / 4.8 Cm, Rotation: CCW. Push Your Air Compressor To The Limits With This Well-Balanced Motor!

-Sturdy Steel Construction: The 3 Hp SPL Compressor Motor Shell Is Made Of Premium Steel Material. The Robust And Reliable Body Can Guard The Internal Circuit Well Against Overheating. The Attached Steel Bracket Also Offers Excellent Stability. Two Capacitors And High-Quality Ball Bearings Ensure Long Service Life. Mounting Type: Base-Mounted.

-Overload Thermal Protector: The 3hp SPL Electric Motor For Air Compressor Adopts A Manual Reset Knob Allowing It To Stand Up Against High-Temperature Overloads. A Reduced Starting Amperage Design Ensures The Reduced Voltage Will Start At A Rated Load. Insulation Class: F, Service Factor: 1.

-Fast Heat Dissipation: The 56 Frame Electric Motor Has Multiple Heat Dissipation Strips For Heat Dissipation. It Can Also Guard Chips And Objects Against Dropping Into The Motor And Causing Accidents. Power And Protection That You Can Trust. Works Hard While Maintaining High Performance.

-Odp For Dry Environments: The Open Drip-Proof Motor Demonstrates Optimal Performance When Used In A Relatively Clean And Dry Environment. Specifically Designed For Air Compressor Duty Uses. Ensure Our Motor Matches The Specific Specifications Listed On Your Compressor Before Purchase.

Product Description：

High-Performance Motor：3 Hp SPL Electric Compressor Motor Allows You To Conserve Energy Over Extended Periods, Reducing Power Costs And Overheads. It'S Effortless To Move And Strong Enough To Maintain A High Working Efficiency.

3450 Rpm High Speed：The Compressor Motor 230v Runs At 3450 Rpm, Synchronous Speed: 3600 Rpm. Our High-Quality Steel Shaft Has Toughness, Hardness, And The Characteristics Of Low Rotating Noise And Stable Operation.

Rugged & Durable Construction：The 3 Horsepower SPL Electric Motor Housing Is Constructed From Reliable Metal Material, Which Features Robustness, Strength, And Durability, Offering A Long Service Life. A Smooth Surface Provides Comfortable Use.

Strip-Shaped Cooling Holes：The Table Saw Motor Replacement Has Multiple Heat Dissipation Holes On Both Sides. It Can Quickly Dissipate Heat While Running For A Long Time, Effectively Guarding The Motor'S Body.

Rigid Mounting Bracket：The Single-Phase Commercial-Duty Open Drip-Proof Air Compressor Motor Comes With A Sturdy Mounting Bracket, Which Enhances The Motor'S Stability And Reduces Friction.

Designed For Air Compressors：This 3 Hp SPL Single Phase Electric Motor Is Intended To Be Used In Dry And Non-Dusty Environments. Suitable For Various Kinds Of Air Compressors And Other Related Appliances.
Single Phase & Odp Enclosure & For Air Compressor Uses
Labwork Heavy-Duty Air Compressor Electric Motor Is Rated At 3 Hp Spl 3450 Rpm And Can Be Connected To 115/230v Incoming Power Devices. This Single-Phase 56 Frame Electric Motor Conforms To The Standard For High Hardness And Performance, Which Is Well Suited For Air Compressor Applications. Built Tough To Work Tough, Can You Handle That! Our Motor Will Have Your Air Compressor Roaring For The Next Job!

This motor of ours can operate at two voltages: 115v and 230v, but it is necessary to achieve this by changing the wiring. Be sure to carefully compare the voltage with the wiring. Each wiring can only correspond to one voltage.

This model of ours is a 3hp SPL and cannot be directly used as a 3-horsepower motor. Please do not purchase the wrong one. Please provide the customer with a photo of the original motor nameplate (note that it is not the nameplate photo of our motor) to prevent the customer from buying the wrong motor.

Package Include：

1 x Air Compressor Electric Motor

Notes：
-If You Are Not Sure The Item 100% Fit For Your Vehicle Before Your Purchase.
-Please Allow 1-3CM Differs Due To Manual Measurement.
-Due To The Different Display And Different Light, The Picture May Not Reflect The Actual Color Of The Item. Thanks For Your Understanding.
