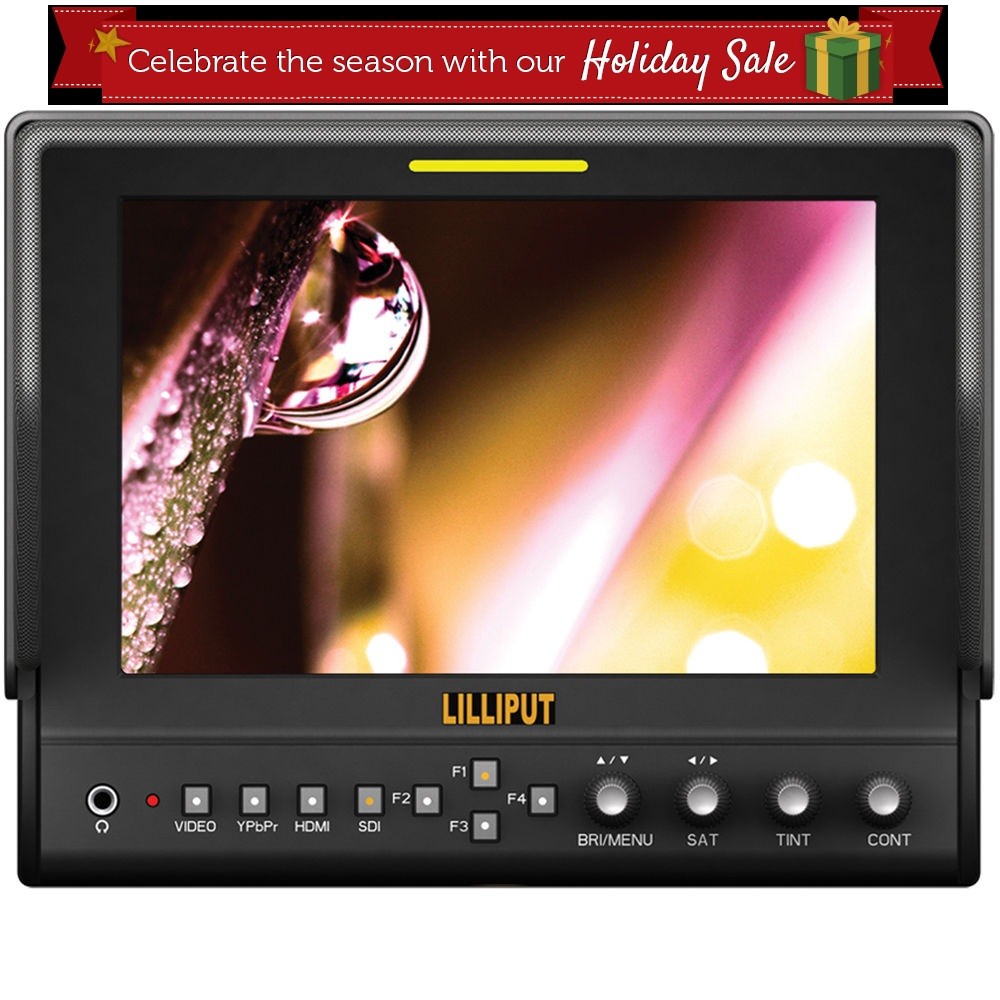

Lilliput 7\" 663/O IPS HDMI In & Out Monitor for Canon 5D2 5D3 with LP-E6 batter For Sale

Model: 663/O

7\" LED HDMI Field Monitor with metal shell for DSLR & Full HD Camcorder with Free LP-E6 battery and charger.

The Lilliput 663/O monitor is a 7 inch 16:9 metal framed LED field monitor with HDMI IN&OUT , YPbPr (via BNC), Composite video and collapsible sun hood. Optimised for DSLR cameras.

compatible with BlackMagic PCC (WITH HDMI ) ,the PCC isn\'t included

Color/RGB histogram, waveform, vector scope & Audio level meter,
IPS panel 178° wide viewing angles,
High resolution: 1280×800,
High brightness: 400cd/㎡,
High contrast: 800:1,
Metal housing,
TALLY interface with indicating light,
POP-UP shortcut menu.

663/O with HDMI input & output

DISPLAY

Panel

7\" IPS

Physical Resolution

1280×800, support up to 1920×1080

Aspect Ratio

16:9

Brightness

400cd/㎡

Contrast

800:1

Viewing Angle

178°/178°(H/V)

INPUT

HDMI

1

YPbPr

3(BNC)

VIDEO

1

AUDIO

2(L/R)

OUTPUT

HDMI

1

AUDIO

Speaker

1(built-in)

Ear Phone Slot

1

POWER

Current

900mA

Input Voltage

DC 7-24V(XLR)

Battery Plate

F970 / LP-E6

Power Consumption

≤11W

ENVIRONMENT

Operating Temperature

-20℃～60℃

Storage Temperature

-30℃～70℃

DIMENSION

Dimension(LWD)

191.5×152×31 / 141mm (with cover)

Weight

760g / 938g (with cover)/ 2160g (with suitcase)

PRODUCT DESCRIPTION

5．YPbPr: Indicator lights up when signal switch to YPbPr state.

6．HDMI: Indicator lights up when signal switch to HDMI state.

7．SDI: Indicator lights up when signal switch to SDI state (optional).

9．Knob BRI/MENU: Press the knob to access the menu function, pressing the knob in the menu to return to the previous page or exit the menu. Rotate knob to select an option.

Default as Brightness function.

10．Knob SAT: Press the knob to select main MENU options; rotate knob to confirm the selection and adjust parameter values.

Default as Saturation function.

11．Knob TINT: Default as Tint function.

12．Knob CONT: Default as Contrast function.

Package Included:
- 7\" TFTLCD(no touch screen,no HD-SDI,with HDMI out)
1.FoldableSun Shade
2.Hot Shoe Stand Mountfor Camera(Not for Sony/Minolta camera)
3. DV battery adapter (for Canon LP-E6 battery)
DV battery adapter (for SONY F970 battery)
4.HDMI to mini HDMI Signal Cable
5. DC 12V Home Power Adapter for Monitor
6. Powe and TALLY cable
7. Operation Manual
8 .Metal suitcase

9 free Gift: PISEN LP-E6 battery and charger
