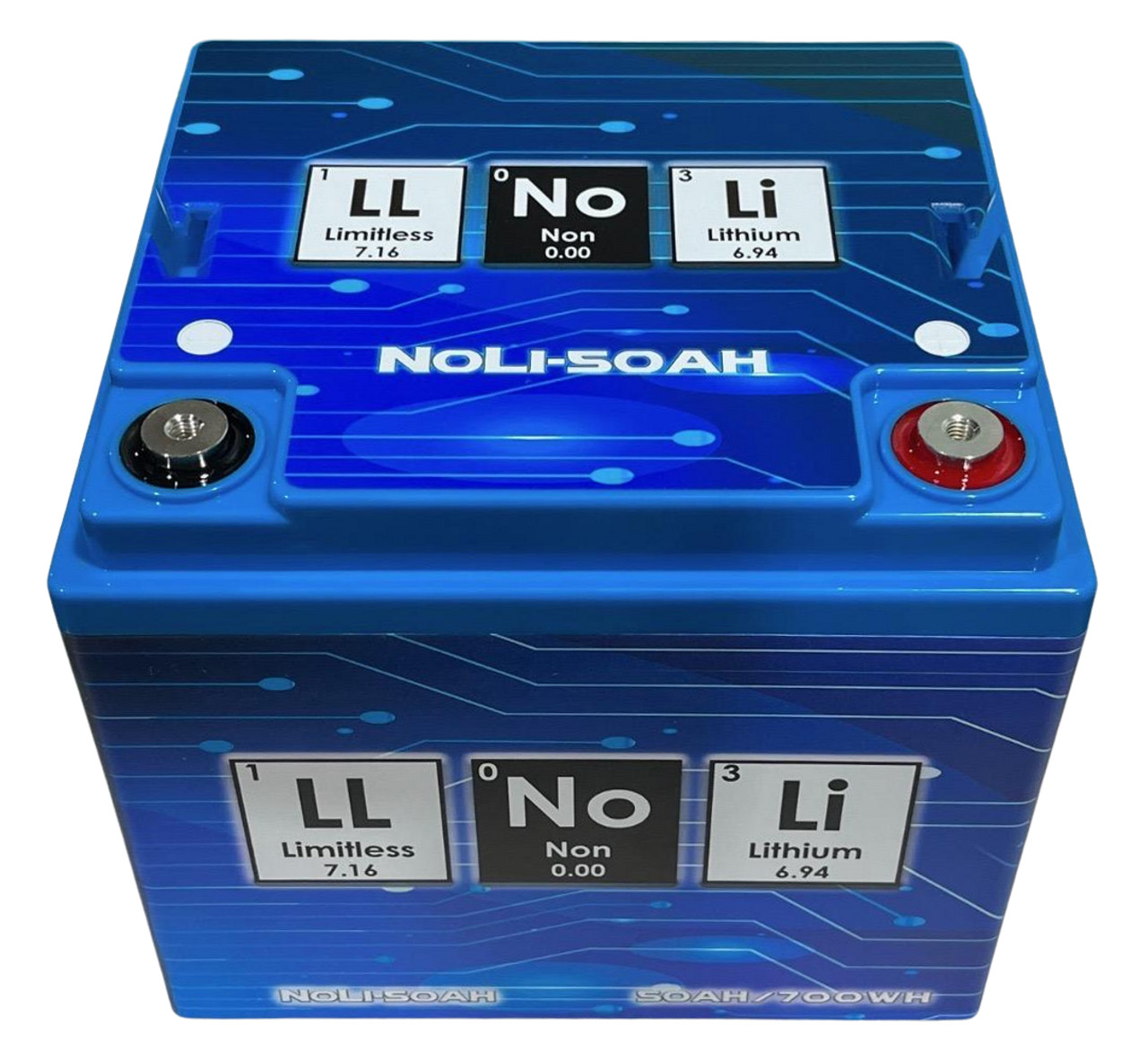

LIMITLESS BATTERY Voltage (Charge Voltage Charging Voltage
14.2V
Max Charging Voltage
16V
Minimum Charging Voltage
10V
Capacity (Ah)
50AH
Capacity (Pb Eq)
180Pb Eq
Cell Chemistry
SIB
Cell Life Cycles
4,000
80% DOD
Cranking Amps (CA)
3000
Cold Cranking Amps (CCA)
2250
Nominal Operating Temperature Bolt Size
M6-1.0
Terminal Orientation
Right Positive
Balance Board Management System Installed 14.6V (Standard Voltage)
RMS Wattage (Installed with 100A stock alternator)
6,500W-8,000W
14.6V Input Voltage
Max Burst Wattage (Installed with 100A Alternator)
8,500W
14.6V Input Voltage
RMS Amperage Output (Stand Alone for 30 seconds)
500A
Starting at 14.6V
Max Burst Amperage Output (Stand alone for 10 seconds)
600A
Starting at 14.6V
Recommended Charging/Input Current
300A
Maximum Charging/Input Current
450A
Charging above 450A Shortens the cycle life
- Performance 16V (High Voltage)
RMS Wattage (Installed with 250A H/O Input Voltage
Max Burst Wattage (Installed with 250A H/O Alternator)
15,000W
16V Input Voltage
RMS Amperage (Stand Alone for 30 seconds)
750A
Starting at 16V
Max Burst Amperage (Stand alone for 10 seconds)
1,000A
Starting at 16V
Recommended Charging/Input Current
300A
Maximum Charging/Input Current
450A
Charging above 450A Shortens the cycle Length
6.75"
Overall Width
7.75"
Overall Height
6.50"
Overall Height (Without Terminals)
6.50"
W eight
14.4 Lbs
BCI Battery Group Model
86
