pamus

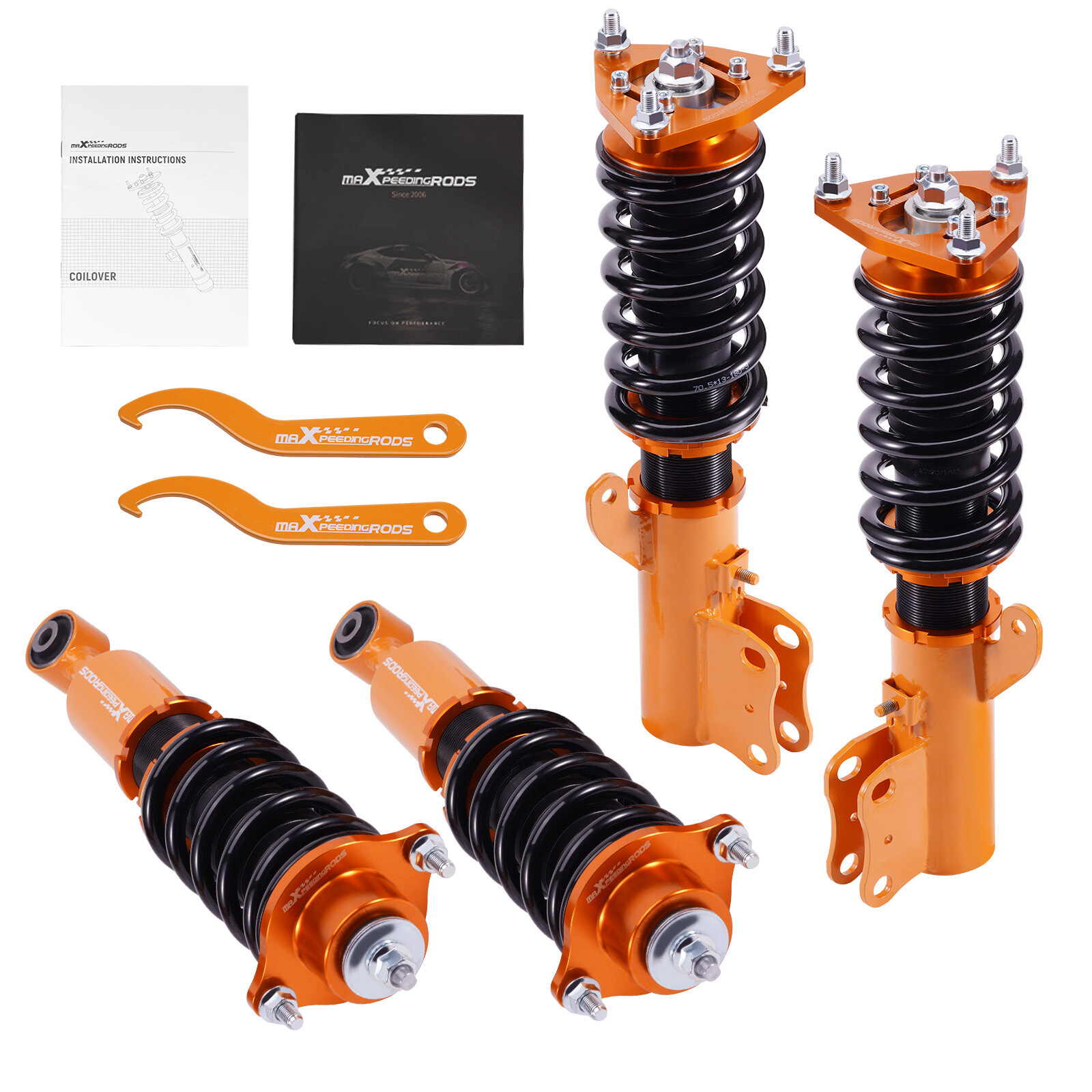

MaXpeedingrods Adjustable Coilovers Kit for Mitsubishi Lancer (CX/CY) 08-16
All modifications must be installed by licensed mechanics and in compliance with your local modification
55mm Large Diameter Damper Body
High Oil Capacity For Superior Heat Dissipation, Consistent Damping Performance, And Extended Service Life.
CNC Machined T6 6061 Aluminum Top Mount
Adjustable Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.
High Rigidity 55CrSi Steel Cold-bent Coil Springs
720-Hour Salt Spray Tested — Exceptional Corrosion Resistance.
Drops From 1 to 3 Inch From Factory Ride Height
Full Threaded Absorber Tube Casing For Independent Height Adjustment.
55mm Large Diameter Damper Body
CNC Machined T6 6061 Aluminum Top Mount
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Drops From 1 to 3 Inch From Factory Ride Height
Specifications
Top mount material Aluminum Height adjustable Yes, Lowering 1-3 inch Front Spring length 180 mm Rear Spring length 180 mm Front spring length 9 kg/mm (504 lbs/in) Rear spring length 6 kg/mm (336 in/lbs) Front Damper Body Diameter Φ55mm (2.17") Rear Damper Body Diameter Φ55mm (2.17") Package Including 2 Front + 2 Rear Warranty 1 Year
Features
1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Anti-Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Mitsubishi Lancer(CX/CY) 2008-2016, except Lancer Evolution
For Mitsubishi Outlander Sport(GA) Front top mount: Pillow ball with camber plate
- Rear top mount: Standard rubber
- Damping adjustable: Not available
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Front Spring Rate: 9 kg/mm (504 lbs/in)
- Rear Spring Rate: 6 kg/mm (336 in/lbs)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 180 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring
Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
- 100% Brand New, Never Used Or Installed- Independent Ride Height Adjustable- 55mm Large Diameter Damper Body- High Durability Bearing and Thrust Seat- Reinforced Rubber Bushing with T-6061 Billet Aluminum Upper Mount- 55CrSi Steel Cold-bent Spring- Balanced Comfort & Performance- Full 1 Year Limited Warranty From Date of Purchase.
