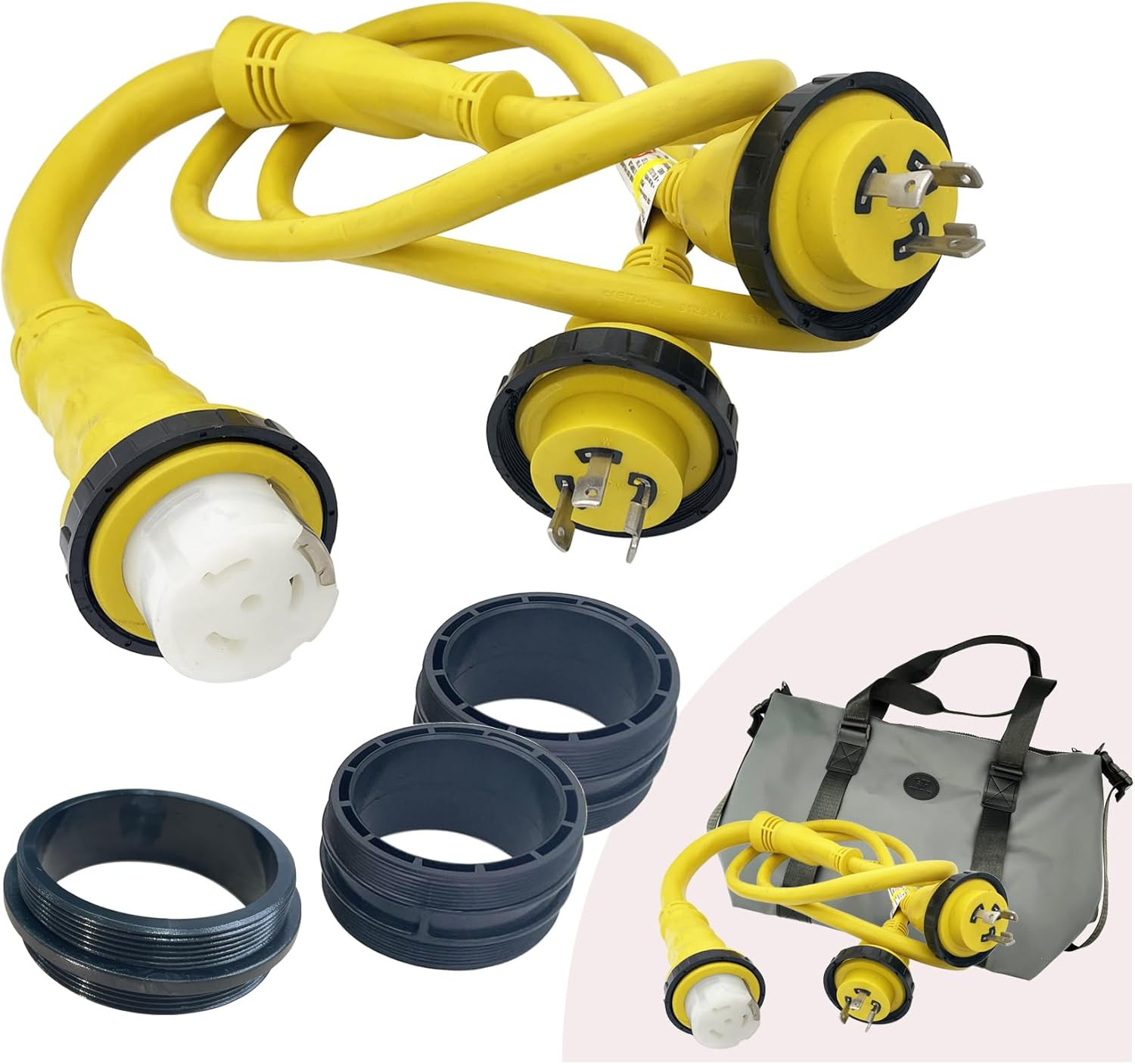

Marine Shore Power Reverse Y Adapter Cord Splitter 2x L5-30P to SS2-50R 30A 50A For Sale

Application:

• The TREXFLOW TF REVERSE Y is for use with boats with 50A 125V/250 Volt inlets where only 30A 125 volt receptacles are available on the dock.
• Caution: Boats with 50A 125 volt inlets CANNOT use this REVERSE Y.
• The Two 30A 125 volt dockside receptacles must be supplied from a SINGLE POWER SOURCE which provides from 208 volts ~250 volts, otherwise the REVERSE Y will not operate.

Features/ Spec.:
- Dock Side: (2x) 30A 125v Male L5-30P reverse to Boat Side: (1x) 50A 125v/250V Female SS2-50R
- Dock Side: (2x) 10AWG*3 Heavy Duty STW cord connecting to Boat Side (1x) 6AWG *4 Heavy Duty STW Cord
- 30Amps Connectors with Sealing Collars
- 50Amps Connectors with Sealing Collar

- ETL Qualified Manufacturer
- Total Length: 5.5ft long(4ft from 30 Amps Male Connector to the Y Knot center; 1.5ft from the Y knot center to the 50 Amps Female Connector)
- Package includes: 1x REVERSE Y ADAPTER CORD, 2x 30A sealing collars, 1x 50A sealing collar, 1x carry bag.

WARNING!!!:
- DO NOT plug the REVERSE Y into receptacles from two different power boxes. The REVERSE Y must receive power from a single source (transformer). Receptacles in different power boxes may receive their power from two different transformers, which causes Risk of Phase Mismatch.
- DO NOT exceed 30A per leg.
- DISCONNECT BOAT FIRST, then unplug.
- DO NOT allow the REVERSE Y to be immersed in water.
- STORE the REVERSE Y indoors while not in use.
- ALWAYS USE the sealing collar provided with the REVERSE Y to connect the boat’s 50A shore power cord to the REVERSE Y. The sealing collar provides a weather resistant seal between the plug and the connector. If the boat’s shore power cord is without sealing collar, other provisions must be made to make the connection weather resistant.
