MICRON® America TEP-1 Manual Grommet Press Starter Kit – Self-Piercing Dies + 500 Brass Grommet Sets – Choose Size
Begin installing professional self-piercing grommets with a complete MICRON® America TEP-1 starter package.
Each kit includes one TEP-1 manual hand press, one size-specific self-piercing grommet die set, and 500 matching brass grommets with washers. The included components are designed to work together, eliminating the uncertainty of selecting a compatible machine, die set, and fastener size separately.
Choose the required grommet size before completing your purchase. Each order includes one machine, one die set, and 500 complete grommet-and-washer sets for the selected configuration only.
AVAILABLE SIZE OPTIONS
• Size #1.7 – 1/8\"
• Size #00 – 11/64\"
• Size #0 – 3/16\"
• Size #1-J – 1/4\"
• Size #1 – 5/16\"
• Size #2 Regular – 3/8\"
• Size #2 Long Neck – 3/8\" – 9 mm neck
• Size #3 – 7/16\"
The die set and grommets supplied with each package correspond only to the selected size. Dies and grommets made for different sizes are not interchangeable.
COMPLETE STARTER PACKAGE
Each selected kit includes:
• 1 × MICRON® TEP-1 manual hand press
• 1 × matching self-piercing grommet die set
• 500 × brass self-piercing grommets
• 500 × matching washers
• Total: 500 complete grommet-and-washer sets
TEP-1 MACHINE FEATURES
• Brand: MICRON® America
• Model: TEP-1
• Product type: Manual fastener-attaching hand press
• Operation: Manual
• Construction: Heavy-duty sphero cast iron
• Approximate machine weight: 10 lb – under 5 kg
• Compact and portable design
• Interchangeable die system
• Upper-die interface: 1/4\"-20 UNC threaded
• Compatible lower-die bases: Approximately 18.95 mm or 11.95 mm smooth base
• Can be used free-standing for light applications
• Base includes mounting holes for secure bench installation
• No electricity or air compressor required
• Made in Europe
• Condition: New
WHY CHOOSE THE TEP-1 STARTER KIT?
• Includes the machine, matching dies, and fasteners needed to begin installation
• Removes compatibility uncertainty when purchasing components separately
• Self-piercing system cuts and sets compatible materials in one controlled motion
• Manual operation requires no electricity or compressed air
• Compact size is suitable for workshops, repair stations, and mobile use
• Heavy-duty cast-iron construction provides dependable strength
• Interchangeable dies allow the machine to support other compatible fasteners
• Suitable for repairs, prototypes, custom projects, and small production runs
• Includes 500 complete brass grommet-and-washer sets
SELF-PIERCING INSTALLATION
When used with the included size-specific dies, the grommet cuts through compatible material and attaches to the matching washer in one pressing motion. A separate pre-punched opening is generally not required for compatible materials.
Confirm that the grommet, washer, and installed dies are all the same size.
Install the matching upper and lower dies securely in the TEP-1 press.
Position the grommet in the corresponding die.
Place the washer into the matching opposite die.
Position the material carefully between the grommet and washer.
Operate the handle using firm, controlled pressure.
Inspect the finished installation for alignment and secure attachment.
Test several installations on scrap material before beginning production.
Material thickness, density, number of layers, die adjustment, and applied pressure can affect the finished result.
VERSATILE APPLICATIONS
Ideal for:
• Banners and signs
• Canvas projects
• Tarps and protective covers
• Tents and outdoor equipment
• Awnings
• Curtains and draperies
• Bags and fabric accessories
• Upholstery projects
• Garments and textile products
• Leathercraft projects
• Arts and crafts
• Repair and replacement work
• Sample and prototype production
• Small workshops and light production

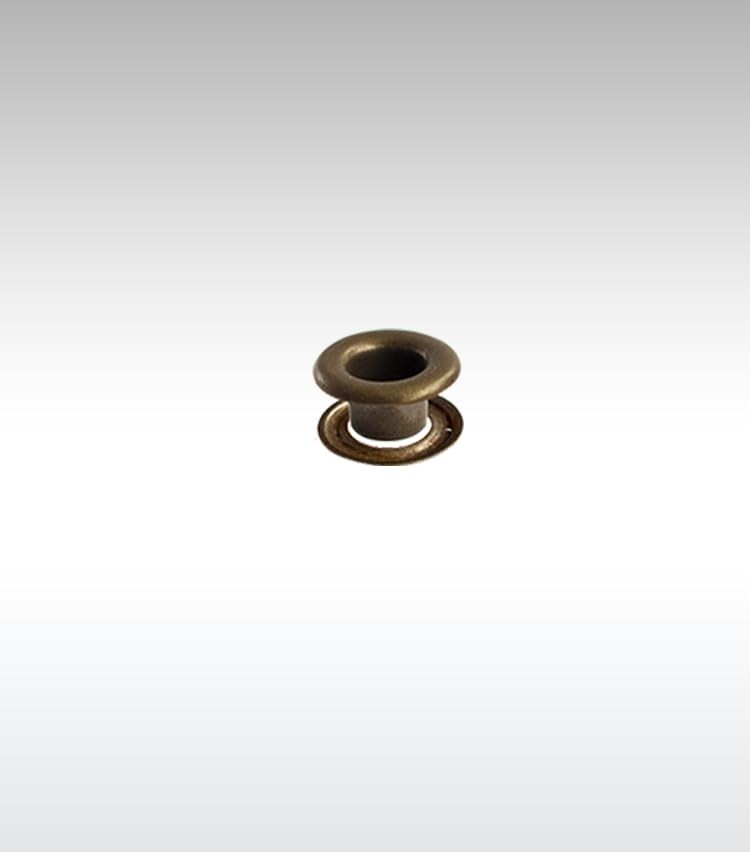

BRASS GROMMET CONSTRUCTION
The included grommets are manufactured from heavy-gauge brass for durability, malleability, and corrosion resistance. Each complete fastening set consists of one self-piercing grommet and one matching washer.
Brass construction provides:
• Dependable fastening strength
• Rust and corrosion resistance
• Suitability for indoor and outdoor applications
• Reliable rolling and setting when installed correctly
• A professional finished appearance
IMPORTANT MATERIAL LIMITATION
Self-piercing grommets are intended to cut through compatible flexible materials. They may not cut reliably through extremely dense or reinforced materials such as heavy polyester webbing, elastic, thick multi-layer assemblies, or rigid materials.
These applications may require a separately pre-punched opening or specialized industrial equipment. The TEP-1 is not compatible with separate hole-piercing die sets.
Always test the complete installation on scrap material before starting production.
IMPORTANT MACHINE INFORMATION
The TEP-1 accepts 1/4\"-20 UNC threaded upper dies only. It does not accept a smooth-shank upper die unless a compatible alternative configuration is specifically provided.
For improved stability, alignment, leverage, and repeatable production results, secure bench mounting is recommended. Suitable mounting hardware and a stable work surface must be selected according to the installation location.
The TEP-1 is intended for manual and light-production applications. For high-volume or continuous industrial production, a pneumatic, hydraulic, or automatic MICRON® machine may be more appropriate.
PACKAGE INCLUDES
• 1 × MICRON® America TEP-1 manual hand press
• 1 × self-piercing grommet die set in the selected size
• 500 × brass self-piercing grommets in the selected size
• 500 × matching washers
• Total: 500 complete grommet-and-washer sets
Each order includes only one selected grommet size and its corresponding die set.
Additional die sets, additional fasteners, mounting bolts, workbench, materials, fabric, leather, compressor, and other accessories are not included unless specifically shown or stated in the listing.
FINAL SALE INFORMATION
Setting dies are final sale and cannot be returned. Please confirm the required grommet size and neck length before ordering.
