Jensen Transformers JT-115K-E Microphone Input Transformer with 1:10 step-up ratio for use with low noise FET or vacuum tube input amplifiers, Wire Leads

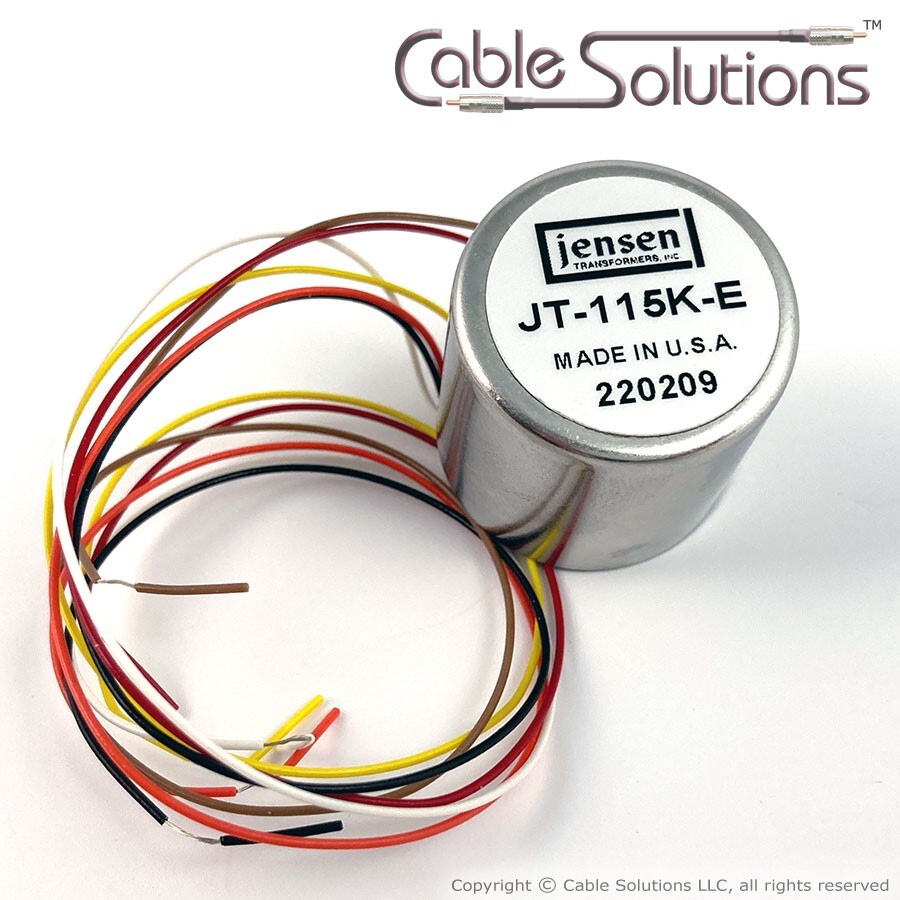

Jensen Transformers JT-115K-E Microphone Input Transformer

Legendary for their sonic transparency, Jensen mic input transformers use internal Faraday shielding to virtually eliminate hum, buzz, and RF interference. The JT-115K-E is enclosed in a MuMETAL® magnetically shielded can to reduce hum caused by nearby magnetic fields.

Featuring a 1:10 step-up turns ratio, this transformer is designed to optimize input stage noise performance. All Jensen Transformers offer extended low-frequency and Bessel-tailored high-frequency responses, which results in the ultra-low time-domain distortion (DLP) that only Jensen offers. Insertion loss is minimal and adding phantom power is simple.

This model can be mounted with the included angle bracket hardware. Also available in PCB mounting style as JT-115K-EPC.

• Impedance Ratio: 150:15K
• Turns Ratio: 1:10
• Maximum Input: +2 DBu @20 Hz
• THD at 20 Hz: 0.065%
• Frequency Response: 20 - 20,000 Hz -0.26 dB / -0.13 dB

NOTE: It is not possible to include PDF documents here. Out only option was to include images of the datasheet in the pictures carousel, but \'s presentation prevents enlarging to 100 percent, so at the time of this writing, there is no good way to present documentation in the venue. If you find the pages difficult to read, we do have real PDF datasheets available on our website

With inferior products coming from all over the world, we think it is a genuine treasure to find a company like Jensen Transformers, actually designing and manufacturing some of the finest products in the world, right here in the USA, and we are proud to be able to offer their products. The JT-115K-E is made in the USA, is backed by the manufacturer\'s comprehensive one-year warranty, and has a remarkable 20-year warranty.

Jensen Transformers' Description Jensen Transformers JT-115K-E Microphone Input Transformer

1:10 STEP-UP FOR HIGH IMPEDANCE AMPLIFIERS

• Ideal for FET or vacuum tube input amplifiers
• Wide bandwidth: -3 dB at 2.5 Hz and 90 kHz
• 20 dB of voltage gain with Noise Figure of only 1.5 dB
• Input impedance of 1.4 kO for loading loss of 0.9 dB
• High common-mode rejection: 110 dB at 60 Hz

This transformer is designed for highest practical step-up ratio. Its secondary source impedance makes it ideal for use with low noise FET or vacuum tube input amplifiers. The primary is fully balanced and its leads may be
reversed to invert polarity, if required. A 30 dB magnetic shield package is standard.

Full PDF datasheet available on our website.

Right perspective view

JT-115K-E box contents.

Here is the datasheet in PDF format.

Dear customer, has made it impossible to include PDF documents in item descriptions, so if you want to see this one, you will need to refer to our website, has also made it impossible to provide outside links, but we are not hard to find: Why Cable Solutions?

• Cable Solutions is an Authorized Jensen Transformers Distributor, so our customers are ensured full warranty protection and technical support. (Jensen Transformers is obligated to provide neither warranty nor technical support for products purchased from unauthorized resellers!)
• We stock this item locally so that it will be ready for immediate shipment, and no one works harder than we do to get your order shipped out to you fast! On business days, orders that are funded by noon will ship the same day. Orders funded on weekends or holidays will ship the next business day.
• Customer service is our first priority. We do our best to help you find the best solutions for your particular application. We\'re enthusiasts too, so we know what it\'s like to wait for cables and accessories that are needed to hook up new gear. We also know how important it is to be able to get a response when you need help, so you\'ll often find us working long hours in an effort to get you the answers that you need.
• If you have had enough of outsourced support or worse yet, companies that do not even publish a phone number or a functional email address, we think you will be absolutely delighted that you found our company. We know how important it is to be able to get help when you need it. That\'s why we have people, right here in Texas, ready to respond to your email or answer your phone call. If English is your language of choice, you will have the simple pleasure of communicating with people whose first language is English. Granted, if you call on the phone, you may detect more than a trace of a Texas accent, but that is to be expected when dealing with a family-owned business run by native Texans. We sincerely hope that you will find our heritage of courtesy, honesty, and an ethical way of doing business to be a refreshing experience.

Design excellence, high quality materials, meticulous workmanship, and superior service...put it all together and you get a superior product. Don\'t get stuck with bad advice, poor service, slow shipment or an inferior product. If you want the best, here it is.
