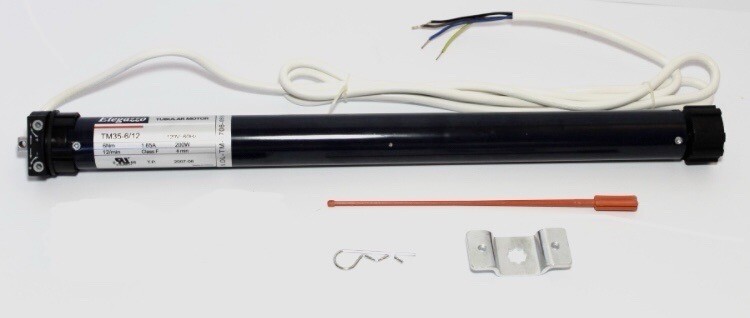

Elegazzo Tubular Motor TM35-6/12
These motors are perfect for DIY Smart blinds and shades projects. Rated for heavy venetian blinds, they will easily carry other loads such as shades and shutters.
Motor mounting diameter: 4 cm or 1.575 inches.
Diameter of the metal motor tube: 35mm or 1.378in.
Voltage: 120/60 (Standard U.S. residential voltage)
Power (W): 150
Speed (rpm): 12
Torque (Nm): 6
Working time (min): 4
Insulation Class: F
Cable Length: 1.5 meters
Motor Length: 19.5 inches
Lifting capacity: 22kgs or 50lbs.
Uses European coded wires. Blue= neutral. Yellow/green= ground. Brown= Live / clockwise. Black= live counter-clockwise. Easily usable in single phase 120/240 V (US residential/commercial standard) areas.
Can be controlled with a DPDT/SPDT (on-off-on) switch.
Compatible with most z-wave, zigbee, iftt, iot controllers.
We do not sell other motor accessories. Because installations are specific to each application, we do not have information on how these motors might be installed.
Be aware that returns are not accepted.
