NEW BELIMO B209+TR24-SR-T US / B2TR0094 US Characterized Control Valve, CV = 0.8 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

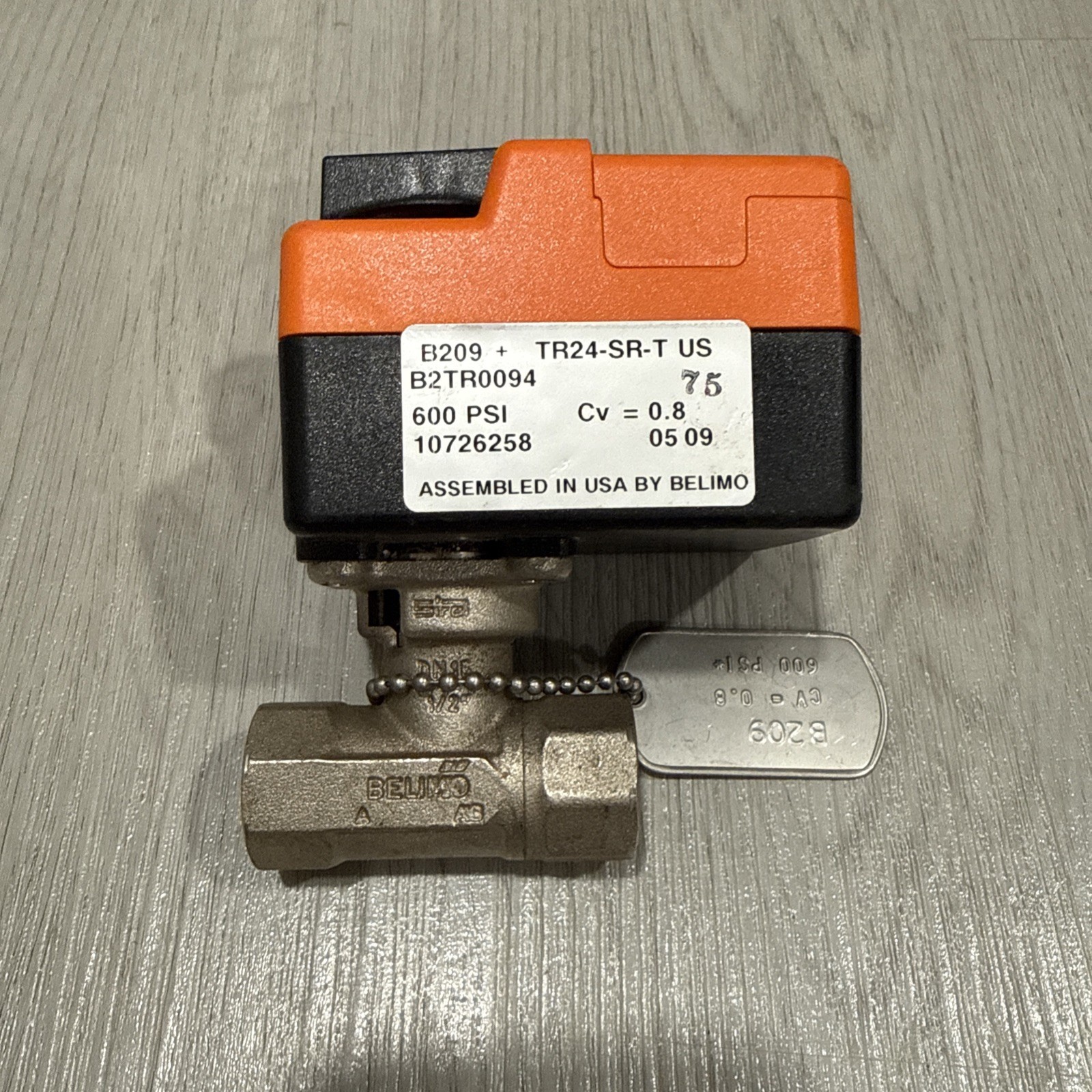

NEW BELIMO B209+TR24-SR-T US / B2TR0094 US Characterized Control Valve, CV = 0.8:
$99.00
The Belimo B209+TR24-SR-T US is an assembled 2-way Characterized Control Valve (CCV) designed for precise control in HVAC applications. This assembly combines the B209 valve body with the TR24-SR-T US actuator. Product Specifications - Valve Model: Belimo B209
- Type: 2-way ball valve
- Size: 1/2 inch
- Flow Coefficient (Cv): 0.8
- Pressure Rating: 600 psi
- Close-off Pressure: 200 psi
- Trim Material: Stainless steel ball and stem
- Fluid Compatibility: Chilled or hot water, up to 60% glycol
- Flow Characteristic: Equal percentage
- Actuator Model: Belimo TR24-SR-T US
- Type: Non-spring return (non-fail safe)
- Control Signal: Modulating (2-10V DC or 4-20mA with resistor)
- Power Supply: 24V AC/DC
- Torque: 18 in-lb
- Electrical Connection: Screw terminal strip (indicated by the "-T" suffix)
- Running Time: 90 seconds
|
|
