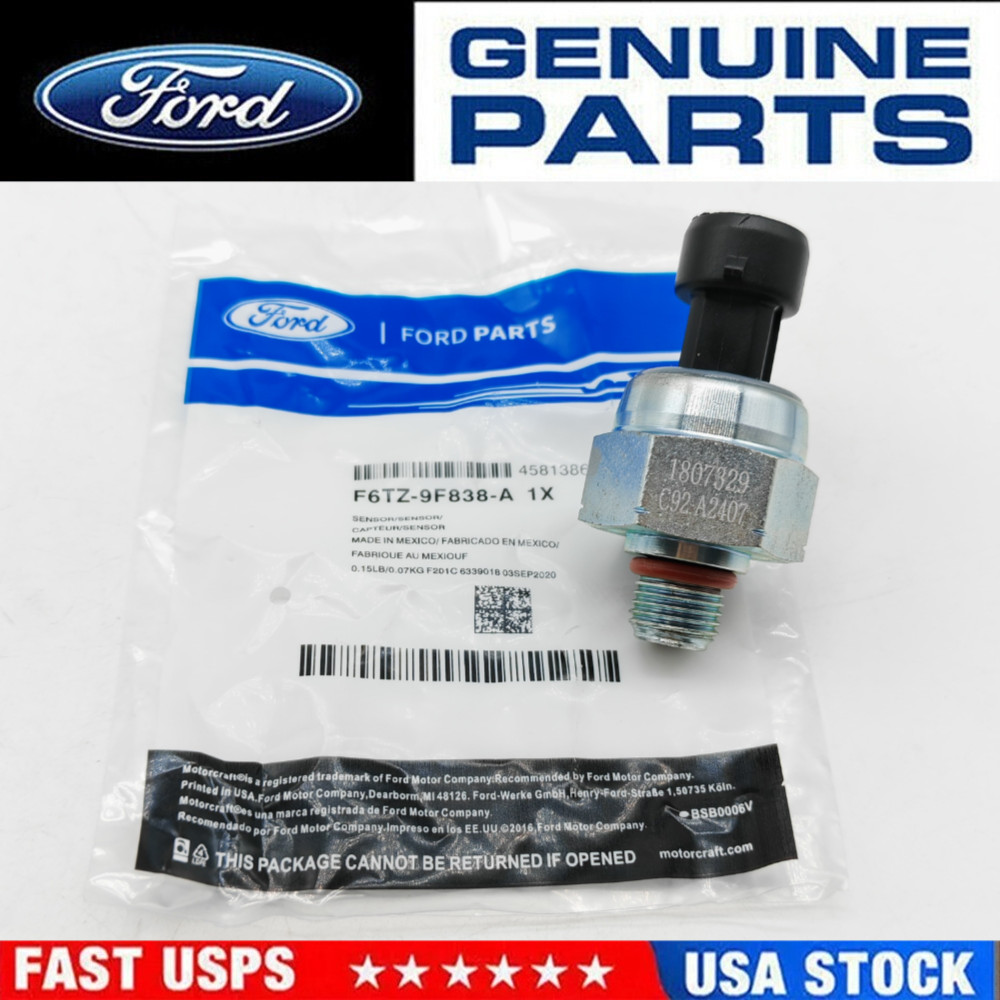

OEM 7.3L Powerstroke ICP Transducer / Fuel Injection Pressure Sensor Exclusive 1994-2003 7.3L Powerstroke diesel turbo engine, the core electronic control sensor of this diesel model, originally matched with Motorcraft model DY-846. Responsible for real-time collection of high-pressure engine oil (hydraulic oil that drives fuel injectors) pressure signals and transmission to the ECU. The computer precisely controls the injection timing and quantity based on the oil pressure.
⚙️ PART DETAILS

OE original part number: F6TZ-9F838-A
Original factory substitution code: F6TZ9F838A, 1807329C91, F6TZ-9F838-B
Swap cross part numbers: AP63408, ICP101, 904-751, 1807329
Product Type: Injection Control Pressure (ICP) Sensor
Mounting Style: Bolt On Thread Straight Screw Installation
Thread specification: 1/4 "NPT external thread
Electrical interface: 3-pin waterproof rectangular plug
Working pressure range: 0-4000 PSI ICP oil pressure
Output signal: 0.5-4.5V linear analog signal
Working temperature range: -40 ℃~+150 ℃
Shell material: aluminum alloy valve body+oil resistant engineering plastic plug
Gasket Material: Viton Fluoro Rubber, resistant to diesel and high temperatures
Item Diameter ：32 mm / 1.26 in
Item Length： 76 mm / 3.00 in
Net weight per unit: 0.16 kg/0.35 lbs
Finish: Metal original color die-casting aluminum shell

🚚 COMPATIBLE VEHICLES

7.3L Diesel Injector Control Pressure(ICP)

Fits 1997-2003 Ford 7.3L Powerstroke Diesels F250/350/FSD Trucks (Built after 12/31/1996) Core Function: Real time monitoring of high-pressure engine oil pressure, adjusting fuel injection pressure to ensure sufficient diesel atomization;
Fixed common faults: difficulty starting, severe idling shaking, weak acceleration, engine stall, excessive black smoke, power attenuation, malfunction light on (P1211, P1212, P0470, P0274 and other ICP related fault codes);
Original factory integrated sealing structure, pre installed with fluororubber O-ring to prevent oil pressure leakage, suitable for diesel high temperature and high pressure working conditions.
