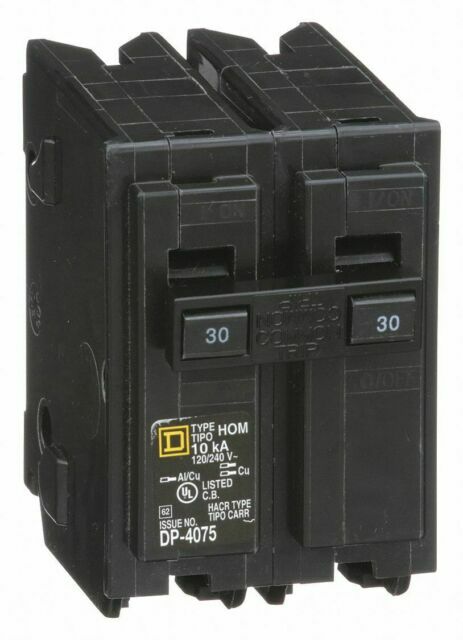

Mini circuit breaker, Homeline, 30A, 2 pole, 120/240 VAC, 10 kA AIR, standard type, plug in mount
BUY MORE AND SAVE $$$ + free shipping!!
MainProductMiniature circuit-breakerRangeHomelineCurrent Rating30 ACertificationsUL ListedVoltage Rating120/240 V ACMounting TypePlug-inNumber of Poles2PShort Circuit Current Rating10 kANumber of Spaces2Circuit Breaker TypeStandardRatingsHACR ratedElectrical ConnectionClamp terminal for 2 cablesWire SizeAWG 14...AWG 8 aluminium/copper)1
AWG 14...AWG 10 copper)2Complementarytightening torque35.40 lbf.in (4.0 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14)
35.40 lbf.in (4.0 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)Maximum Height3.13 in (79.50 mm)Maximum Width2 in (50.80 mm)Maximum Depth2.98 in (75.69 mm)EnvironmentAmbient Air Temperature for Operation104 °F (40 °C)Ordering and shipping detailsCategory00046 - HOM/T 15-30A 1P; 15-60A 2PDiscount ScheduleDE3DGTIN00785901065296Nbr. of units in pkg.1Package weight(Lbs)10.41 oz (295 g)ReturnabilityYesCountry of originMX
