Item Specifics:

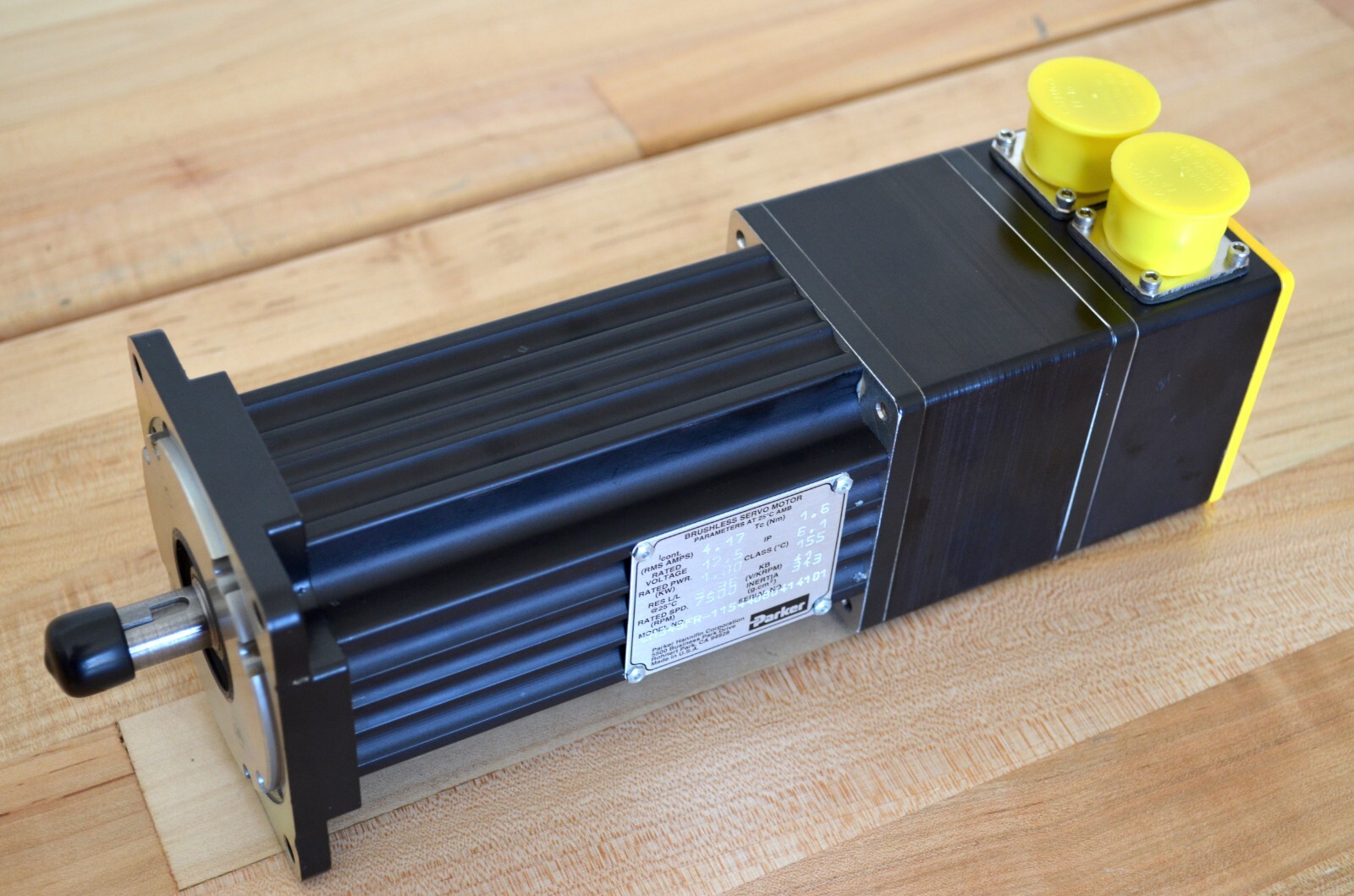

NEW ParkerN0343FR-KMSB
\'Neometric\' Brushless Servo Motor
Nema34 Frame, 7500 rpm, 340vdc, 1.0kW
\'MS\' Style Motor/Encoder Connectors
Resolver response , 24vdc Brake
1/2\" dia. Front Shaft w/ 1/8\" Key
Custom Part # CM343FR-115445
Item Description:
This sale is for a brand new Parker \'Neometric\'
brushlessservo motor that is in perfect condition.
The modelnumber for this motor isN0343FR-KMSB.
Please note that it does have a custom part number
because the motor has a custom front shaft seal and
it also has imperial size allen wrench screws for the
back plate and motor connectors (instead of metric),
but otherwise it is the same as the N0343FR-KMSB.
It\'s a sizenema34motor with a power rating of 1.00kW.
The frontshaft is 1/2\" diameter with 1/8\" key.
This motor has standard MS motor connectors that
can be used with the standard Parker servo cables.
I recommend using the 71-018304-xx power cable
andthe 71-018307-xx resolver response cable.
Motor Spec\'s for N0343FR-KMSB:
Continuous Torque = 1.6Nm (227 oz-in)
Peak Torque = 5.30Nm (757 oz-in)
Rated Speed = 7,500 rpm\'s
Continuous Current = 4.17 amps
Peak Current = 15.7 amps
Rated Voltage = 340vdc
Rated Power = 1.00 kW
Resolver Resolution = 4096 counts/rev
