Item Specifics:

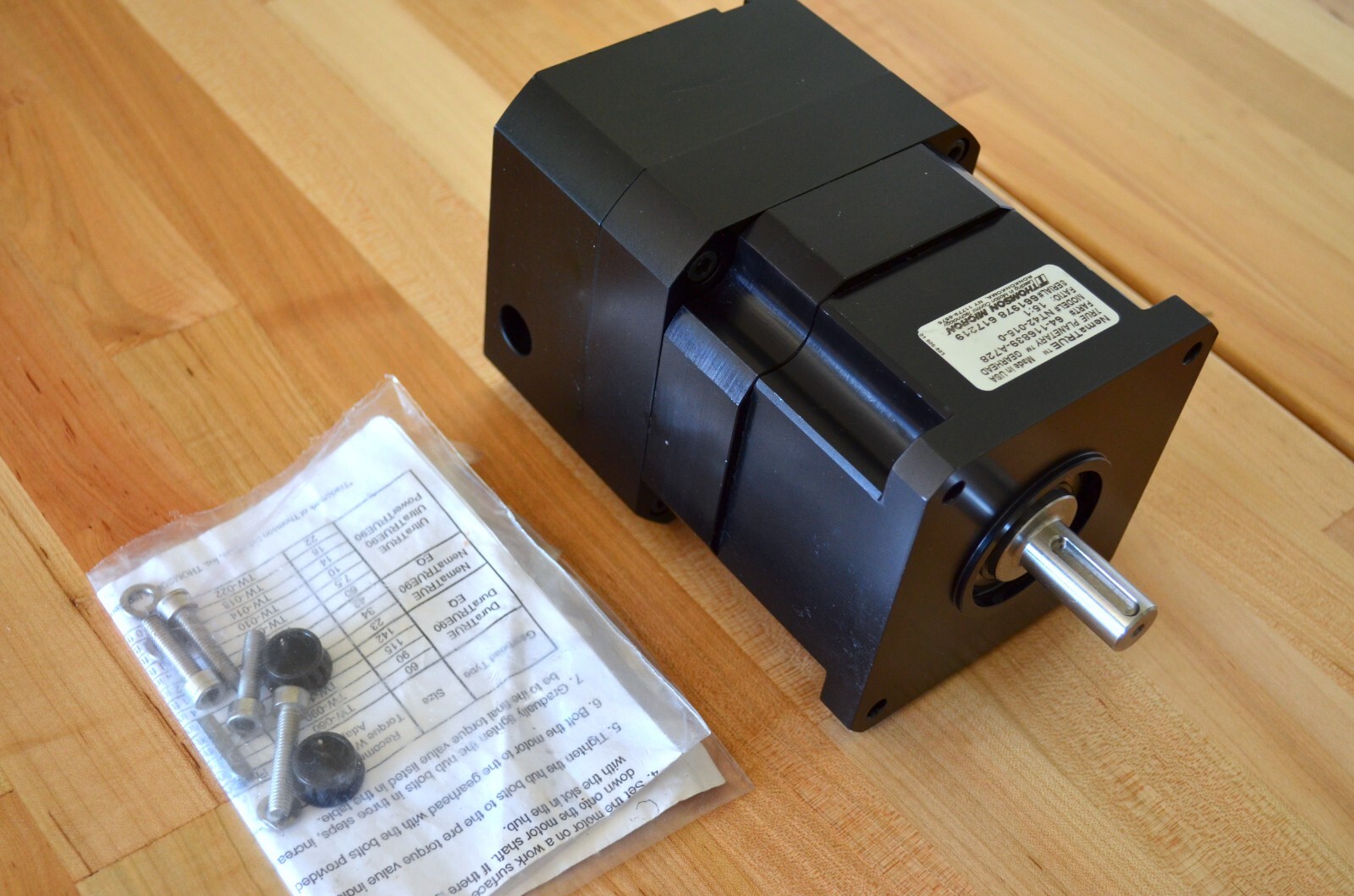

New Thomson NemaTRUE NT42-015
Micron Planetary Gearhead,
Size Nema42 , 15:1 Ratio
Output = Nema42 with 5/8" Shaft
Input = Nema42/115mm with 5/8" Shaft
Includes Mounting Instructions + Hardware
Item Description:
This is a new (unused surplus) Thomson NemaTRUE
planetarygearhead that is in perfect working condition.
It is a model NT42-015-0 with a 15:1 ratio.
The frame sizeis nema42 with a 5/8" dia. output shaft w/ key.
The input side of the gearhead is 115mm square with a 80.5mm dia.
'pilot' bore and mounting holes spaced on a 4.95"mmbolt hole circle,
for usewith a 115mm frame motor that has a 5/8" dia. shaft.
(This will also work with nema42 motors with a 5/8" shaft.)
NT42-015-0 Spec's:
Torque @ 1,000 rpm's = 454in-lbs (51.3Nm)
Torque @ 2,000 rpm's = 416in-lbs (47Nm)
Torque @ 3,000 rpm's = 391in-lbs (44.2Nm)
Torque @ 4,000 rpm's = 373in-lbs (42.1Nm)
Peak Output Torque = 1,600in-lbs (180.8Nm)
Torsional Stiffness = 31in-lbs/arc-min
