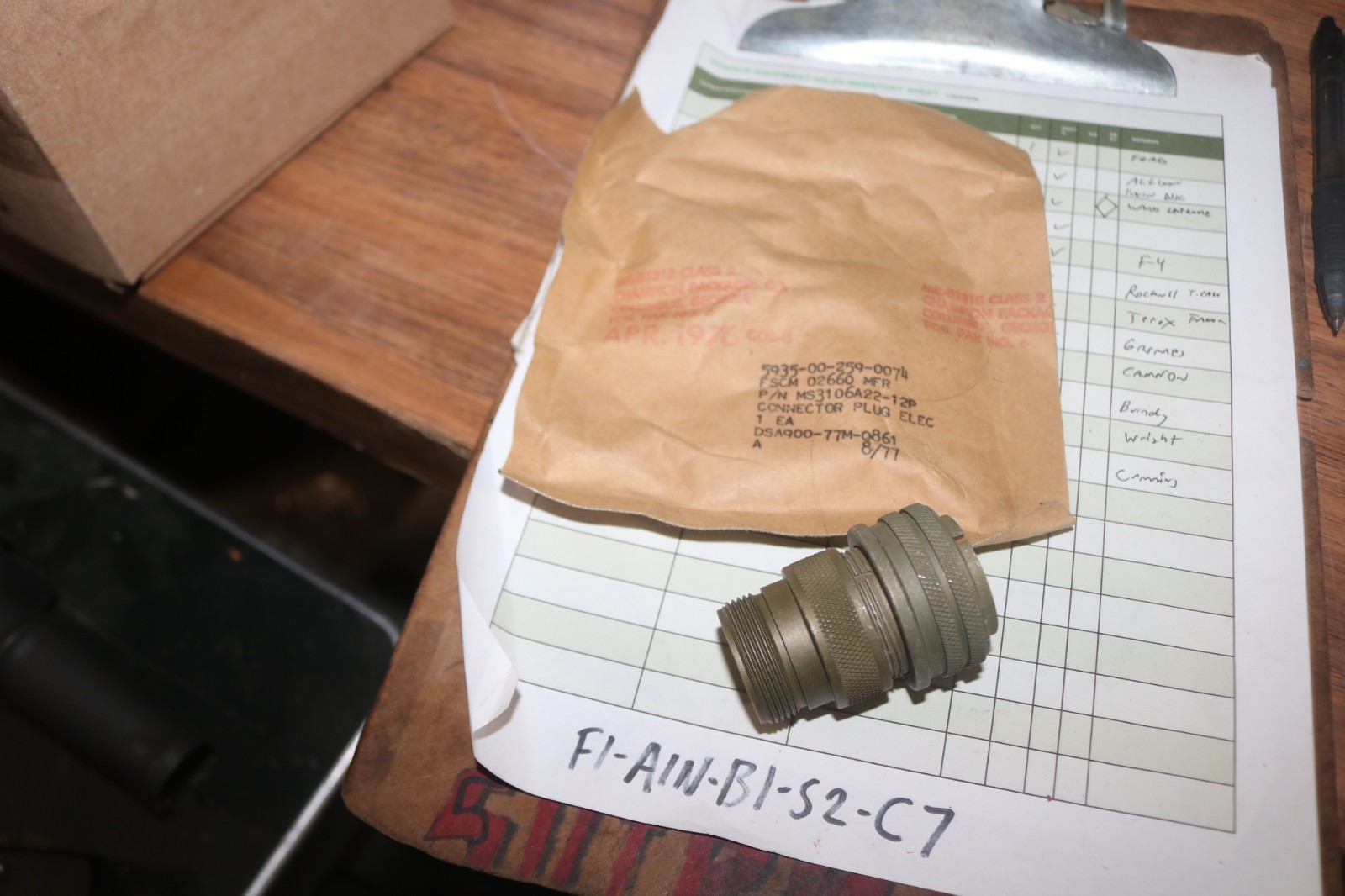

NOS Amphenol electrical connector PN MS3106A22-12P 5935-00-259-0074 For Sale

NOS USGI Class2A and 2BAAJFThread DirectionRight-handAAQLBody StyleStraight shape, internal couplingABHPOverall Length2.500 inches maximumADAVOverall Diameter1.594 inches maximumADZCEnvironmental ProtectionMoisture proof and salt water resistant and vibration proofAFQRThreaded Device TypeBack shell and coupling facilityAFQWMating End Quantity1AFQXContact Position Arrangement Style22-12 single mating endAFQZContact RemovabilityRemovable single mating end all contact groupingsAFRCContact Maximum Current Rating in Amps22.0 single mating end 2ND contact groupingAFRCContact Maximum Current Rating in Amps73.0 single mating end 1ST contact groupingAFRDContact Maximum AC Voltage Rating in Volts900.0 single mating end all contact groupingsAFREContact Maximum DC Voltage Rating in Volts1250.0 single mating end all contact groupingsAFRNPolarization MethodKeyway or multiple keywayAFRPInsert Position in DEG0.0AFRTShell TypeSolidAFRVConnector Locking MethodInternally threaded coupling ringAKMGNominal Thread Length0.290 inches and 0.664 inchesCMLPThread Quantity per Inch1818CQJXNominal Thread Size1.312 inches and 1.375 inchesCQTMTerminal LocationBack single mating end all contact groupingsCQTZContact MaterialCopper alloy single mating end all contact groupingsCQYHContact Surface TreatmentGold single mating end all contact groupingsCQZGInsert MaterialRubber silicone class Q single mating endCRBJContact Surface Treatment Document and ClassificationMIL-G-45204 mil spec single treatment response single mating end all contact groupingsCSCFTerminal TypeCrimp single mating end all contact groupingsCSPTShell MaterialAluminum alloyCSWMShell Surface TreatmentCadmium and chromateCTBCShell Surface Treatment Document and ClassificationQQ-P-416, ty 2, class 3 fed spec all treatment responsesCXCGIncluded Contact Quantity2 single mating end 1ST contact groupingCXCGIncluded Contact Quantity3 single mating end 2ND contact groupingCXCLIncluded Contact TypeRound pin single mating end all contact groupingsFEATSpecial FeaturesIn order to complete the connector assembly, the user must obtain/provide the backshell; standard versions may be ordered as nsn 5935-01-172-8574, P/N M85049/52-1-22W for the straight style, or nsn 5935-01-190-6817, P/N M85049/51-1-22W for the right angle stylePMLCPrecious Material and LocationContact surfaces goldPMWTPrecious Material and Weight0.013 gold grains, troyPRMTPrecious MaterialGOLDTESTTest Data Document81349-MIL-C-5015 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).THSDThread Series Data96906-MS3456 government standard
LOC: F1-A1N-B1-S2-C7
