Technical Specifications

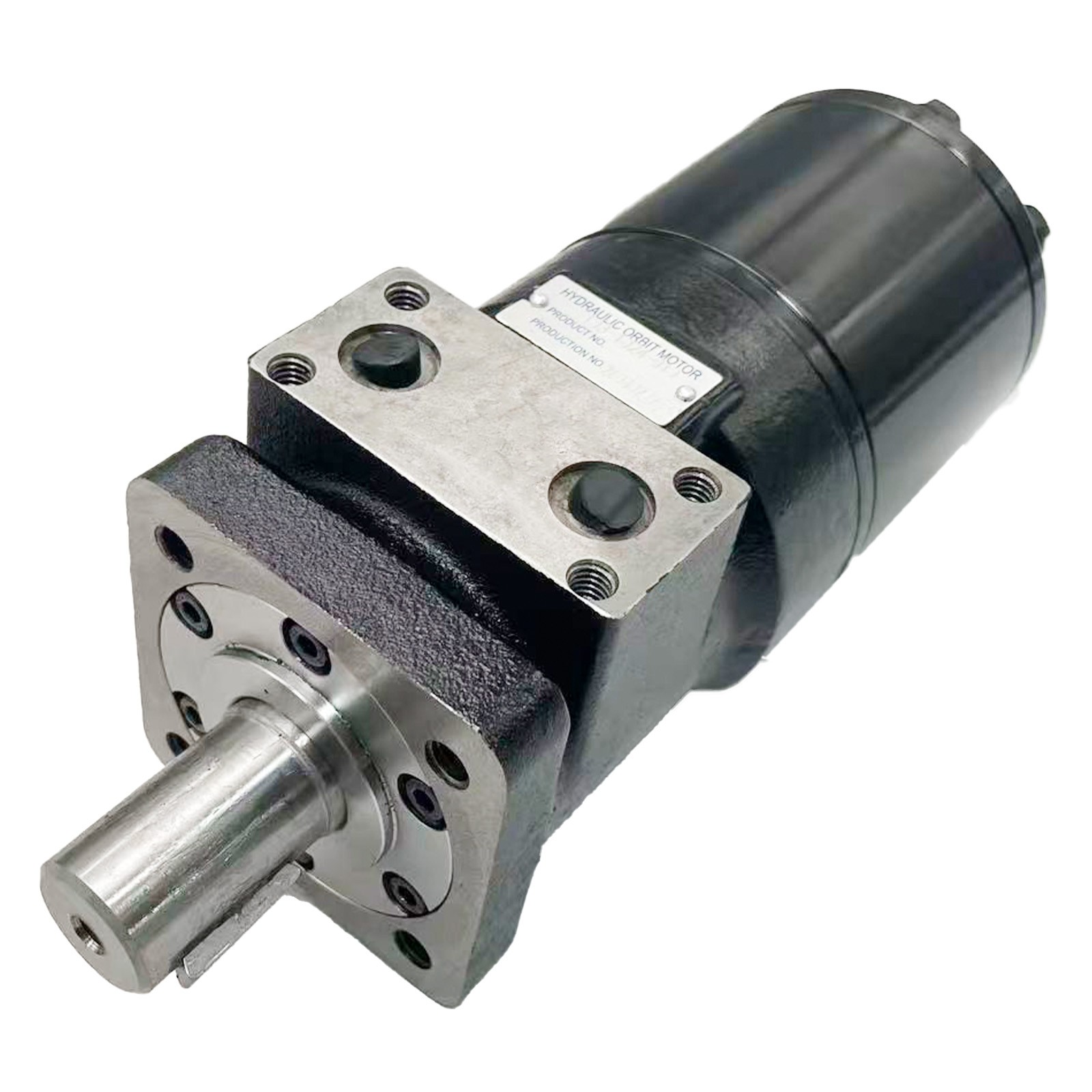

- Model: 103-1024-010
- Series: Char-Lynn 1000 Series Orbital Motor
- Displacement: 4.1 cu in/rev (67 cc/rev)
- Mount: 2-Bolt SAE A Flange
- Shaft: 1" Straight Keyed Shaft
- Ports: #10 SAE O-Ring, 180 Degree Ports
- Continuous Torque: 2450 in-lbs
- Intermittent Torque: 3450 in-lbs
- Continuous Speed: 605 RPM
- Intermittent Speed: 750 RPM
- Max Continuous Flow: 15 GPM
- Max Intermittent Flow: 20 GPM
- Max Working Pressure: 2800 PSI
Applications
Brush cutters, rotary mowers, sweepers, snow blowers, augers, conveyors, winches, tractor attachments, lawn equipment and other low-speed heavy load hydraulic drive machinery.Package & Important Notes
Package Includes: 1 × 103-1024-010 Hydraulic Motor
Brand: CHAR-LYNN Condition: NO - New without Factory Packaging, NO Model Number: 103-1024-010 Shaft Size: 1 IN Shipping Weight: 22.7 lbs Shipping Dimensions: 12 x 8 x 7 in SKU: D1766385 Category: Hydraulic Motors
