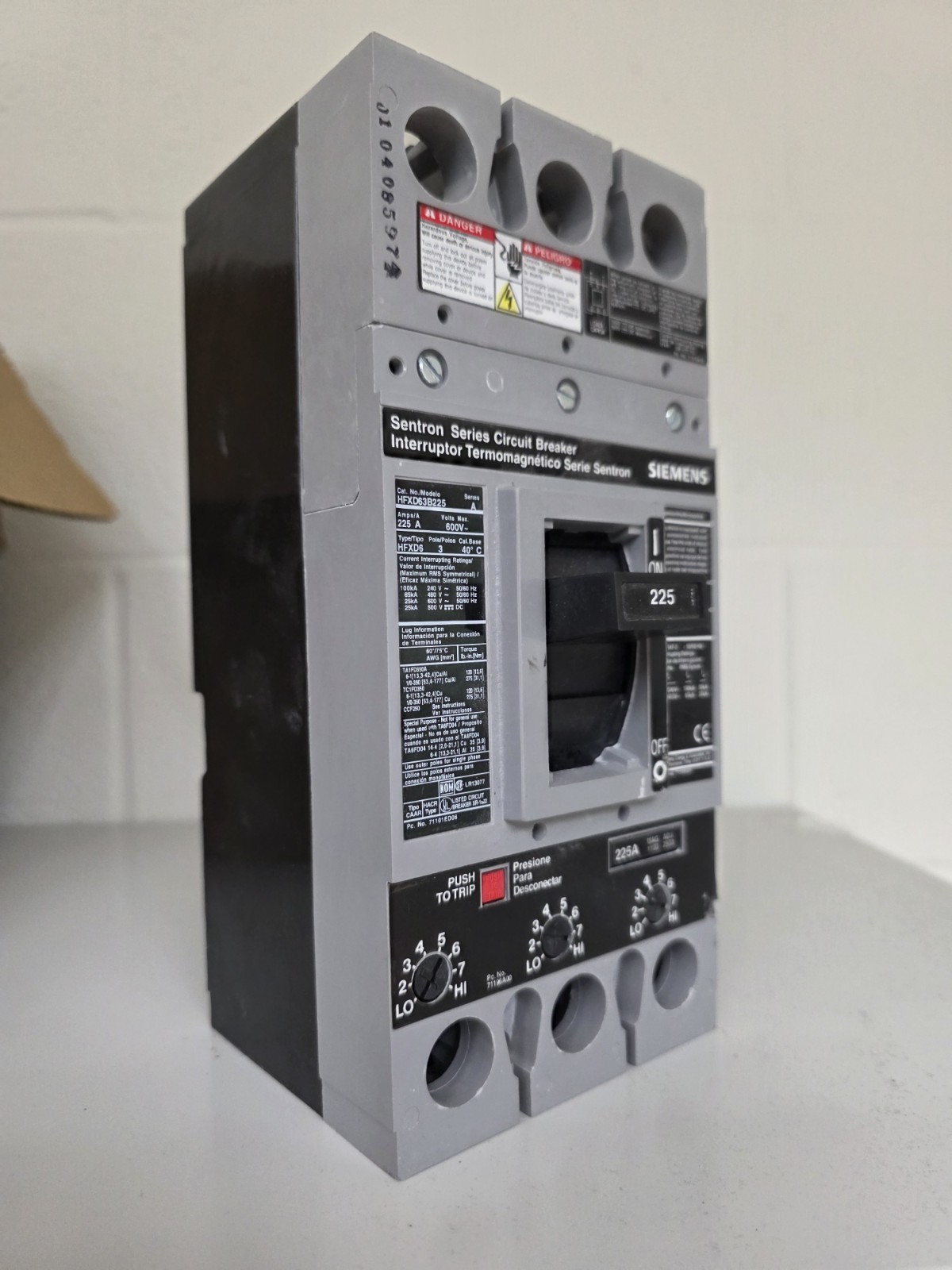

Cat. No./Modelo
Series
HFXD63B225
Amps/A
A
225 A
Volts Max. 600V~
Type/
Tipo Pole/Polos Cal.Base
HFXD6 3
40° C
Current Interrupting Ratings/Valor de e Interrupción Interrupción (Maximum RMS Symmetrical) /(Eficaz Máxima Simétrica)
100kA
240 V
50/60 Hz
65kA
480 V~ 50/60 Hz
25kA
600 V~50/60 Hz
25kA
500 V DC
Lug Information Información para la Conexión de Terminales
60°/75°C AWG [mm²]
Torque lb.-in.[Nm]
TA1FD350A
120 [13,6]
1/0-350 [53,4-177] Cu/Al
275 (31,1)
TC1FD350
120 (13,6)
1/0-350 [53,4-177] Cu
275 (31,1)
CCF250
See Instructions
Ver Instrucciones
Special Purpose - Not for general use when used with TA6FD04 / Proposito Especial No es de uso general cuando es usado con el TA6FD04
TA6FD04 14-4 [2,0-21,1) 6-4 (13,3-21,1)
Cu 35 [3,9)
Al 35 [3,9)
Use outer poles for single phase
Utilice los polos externos para conexión monofásica
NOM LR13077
HACALLISTED CIRCUIT CAAR Type /BREAKER XR-1632
Pc. No. 71101ED06
