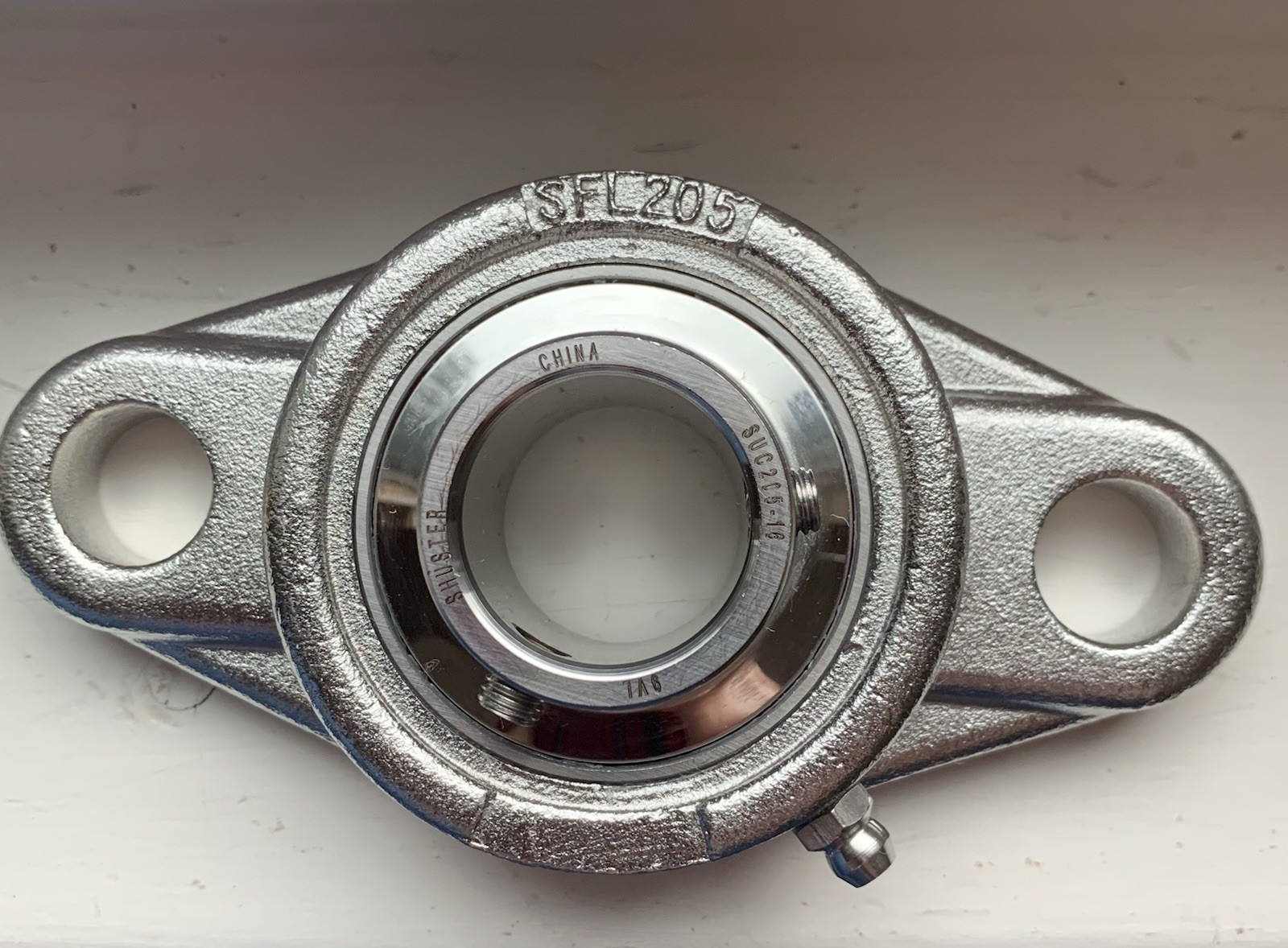

SUCSFL205-16 is a 1-inch bore, 2-bolt oval flange mounted bearing unit engineered with a corrosion-resistant stainless steel housing and insert. This standard-duty unit features a wide inner ring with two set screws for secure shaft locking and is commonly used in food processing, chemical washdowns, and agricultural machinery. Manufactured by Shuster Precision Bearings in China.
Dimensional Data:
Shaft Diameter / Bore: 1 inch.
Bolt Hole Spacing (Centres): 3 57/64 inches (99 mm).
Overall Length: 4 7/8 inches (130 mm).
Number of Bolts: 2.
Material & Construction:
Housing Material: AISI 304 Stainless Steel.
Bearing Insert Material: AISI 440C Stainless Steel.
Housing Construction: Solid cast base.
Locking Device: Set Screw Locking.
Performance & Environment:
Radial Dynamic Load Capacity: 2,675 lbf (11.9 kN).
Radial Static Load Capacity: 1,416 lbf (6.3 kN).
Temperature Range: -10°F to 250°F (-23°C to 121°C).
Lubrication: Pre-lubricated with food-grade grease (such as Mobil FM222).
Seal Type: Silicone rubber contact seal with stainless steel flinger.
