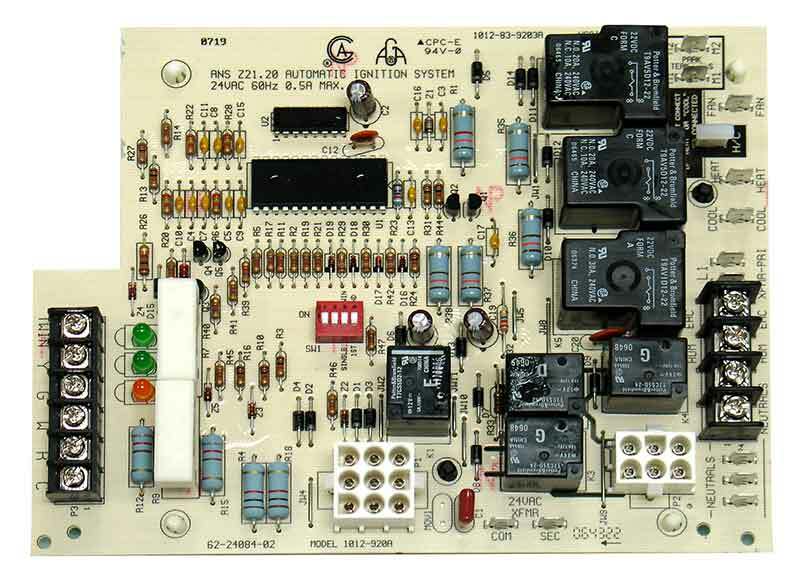

OEM Rheem Ruud Furnace Fan Control Board 62-22694-11 62-22694-12:
$259.99
NEW OEM Rheem Ruud 62-24084-82 Ignition Module Control Board Remote Flame Sensor Kit(62-24044-71)may be REQUIRED to upgrade to the new control board.Specifications: HOT SURFACE IGNITION MODULE CONTROL BOARD. 9 second ignition time. Gas Type: Natural or LP. 100% Lockout. Hot Surface Ignitor Sensor. Quick Connector Ignitor Cable. 30 Second Pre-Purge. 120/24 Volts. 1 Amp.
Direct Replacement for Obsolete Circuit Board Part Numbers:
62-22694-01, 62-22694-02, 62-22694-03, 62-22694-11, 62-22694-12, 62-22694-82, 62-22694-83, 62-22694-91, 62-22737-06, 62-22737-07, 62-22737-08, 62-22737-10, 62-22737-87, 62-22737-88, 62-24044-01, 62-24044-81, 62-24044-91, 62-24045-01, 62-24045-99, 62-24046-01, 62-24084-01,62-24084-02*, 62-24084-71,62-24084-82*, 62-24084-91 and 62-24084-92 *The62-24084-02 &62-24084-82are identical boards. (The -82 indicates the series of production).
Check the manufacture date code listed in the furnaceserial number (this is the FIRST 4 digits of the LAST 8 digits in the serial number). If the date code is older than \"3294\" (the 32nd week of 1994), a Remote Flame Sensor Kit(62-24044-71)is REQUIRED to upgrade to the new control board.
Used in the following Corsaire, Rheem, Ruud, Weatherking Furnace Modelsand many more that are not listed here:
(Gas Code is the first 2 digits of the furnace serial number) MODEL-GAS CODE - RGDG - - - - - - - EU,EV,
- RGLJ -EU,EV,
- RGPJ -EU,
- RGRA - DC,DH,DF,DG,
- RGSA -DC,DF,
- RGTA -DC,DH,DF,DG,
- RGVJ -EU,EV,
- 80LJ - EU,EV,
- 80PJ - EU,EV,
- RGPJ -EV,
- UGDG - - - EU,EV,
- UGLJ -EU,EV,
- UGPJ - EU,
- UGRA - DC,DH,DF,DG,
- UGSA - DC,DF,
- UGTA -DC,DH,DF,DG,
- UGVJ -EU,EV,
- UGPJ -EV,
|
