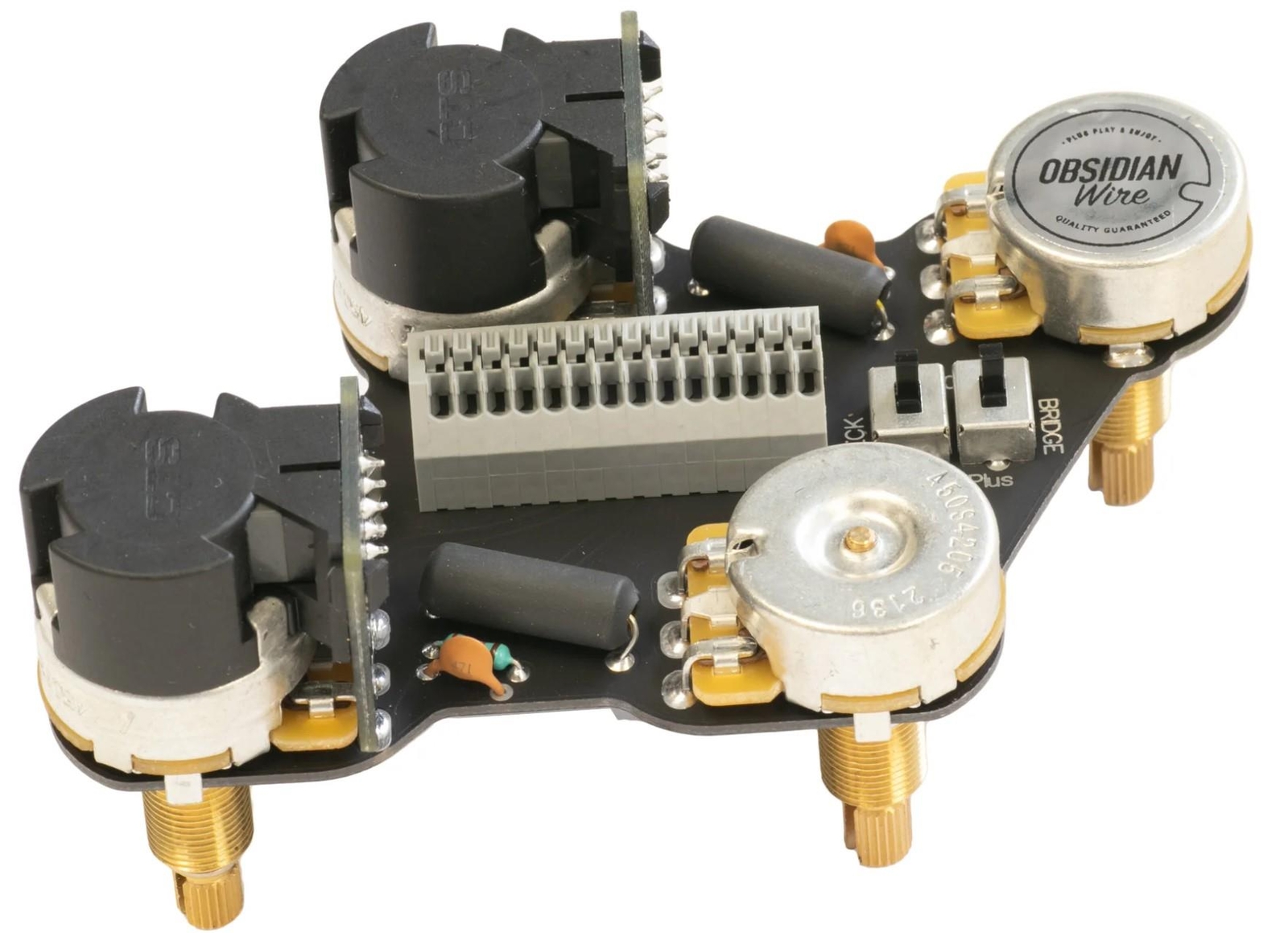

ObsidianWire Vintage MKII Les Paul selectable 50's / 60's Dual Split Coil pre-wired kit
ObsidianWire Vintage MKII Les Paul selectable 50's / 60's Dual Split Coil pre-wired kit 'Vintage 50's'& '60's Plus' Wiring in ONE...
AUTO SELECT WITH THE FLICK OF A SWITCH
The all new Obsidian® Vintage MKII for Les Paul® combines the superour 'Vintage 50's' and '60's Plus' wiring for Les Paul® in to one product. You can now choose between the vintage roll back of the traditional 'Vintage 50's' harness, and superior clarity of the more modern '60's Plus' wiring with the flick of the switch.
"Easily Switch Between Vintage 50s Wiring and theour own '60's Plus' Wiring"
Even better, you get a switch for each pickup, so if you want to run a 'Vintage 50's' setup on the neck pickup, and an Obsidian® '60's Plus' setup for the bridge pickup, YOU CAN.
What is 'Vintage 50's' LP Wiring?
Allow for some treble roll off when you roll back your volume control for an easy bridge between perfect warm cleans and searing leads.
The 'Vintage 50's' wiring mod is a super popular Les Paul wiring upgrade that reverts your stock LP wiring back to the glory days, and the beginning of the Vintage Les Paul. This is our most popular and personal favorite Les Paul wiring.
What is '60's Plus' LP Wiring?
Prevent treble loss when you roll back the volume for greater clarity and cut through at reduced volume levels.
The Obsidian®'60's Plus' wiring is made for clarity and cut through with an improved circuit that will help you retain treble at all volume levels.
NOW WITHDUAL 'SC (SPLIT COIL)UPGRADE OPTION:
Requires Compatible Split Coil (Four Conductor) Pickups
Split your humbuckers into single coils for classic, low output spank, and back again with a tap of the volume control. The Obsidian®Custom SC for Les Paul® gives you greater tonal diversity, through the power ofinbuilt coil splitting switches.The upgrade comes with sturdy solder-less connectors, so it can be installed by anyone. WHAT IS COIL SPLITTING?
Humbuckers are built with two coils of tightly wound copper, for low noise, and high output. Coil splitting cuts the link between the two coils, so we can play with one half of the humbucker. This essentially gives us a single coil, for traditional Strat® or Telecaster® sounds.
"SWITCH BETWEEN LES PAUL & STRAT® OR TELE® LIKE SOUNDS"
The Obsidian®Custom SC gives you a switch built in to each volume control, for switching between your traditional LP® humbucker output, and lower output Strat® or Tele® tones.
BOTH SWITCHES DOWN
Position 1:Bridge Humbucker
Position 2:Bridge Humbucker + Neck Humbucker
Position3:Neck Humbucker
BOTH SWITCHES UP
Position 1:Bridge Single Coil
Position 2:Bridge Single Coil + Neck Single Coil
Position3:Neck Single Coil
NECK VOL. UP - BRIDGE VOL. DOWN
Position 1:Bridge Humbucker
Position 2:Bridge Humbucker + Neck Single Coil
Position3:Neck Single Coil
NECK VOL. DOWN + BRIDGE VOL. UP
Position 1:Bridge Single Coil
Position 2:Bridge Single Coil + Neck Humbucker
Position3:Neck Humbucker
Components
Fits:Gibson®Les Paul®
Fits: MOSTEpiphone®Les Paul®(Requires new knobs and wider holes)
Hole Size:3/8" (9.5mm) mounting holes
Knobs:Use OnlyUS spec 24 spline knobs (Do NOT use metric / 'Import' style knobs
Pickups: Works with Humbuckers and P90s // with modern or vintage braided wires.
Coil Splitting: Requires Compatible four conductor pickups
Does NOT fit:Lefty, three pickup Les Paul®, or any other guitar or Les Paul® Copy.
