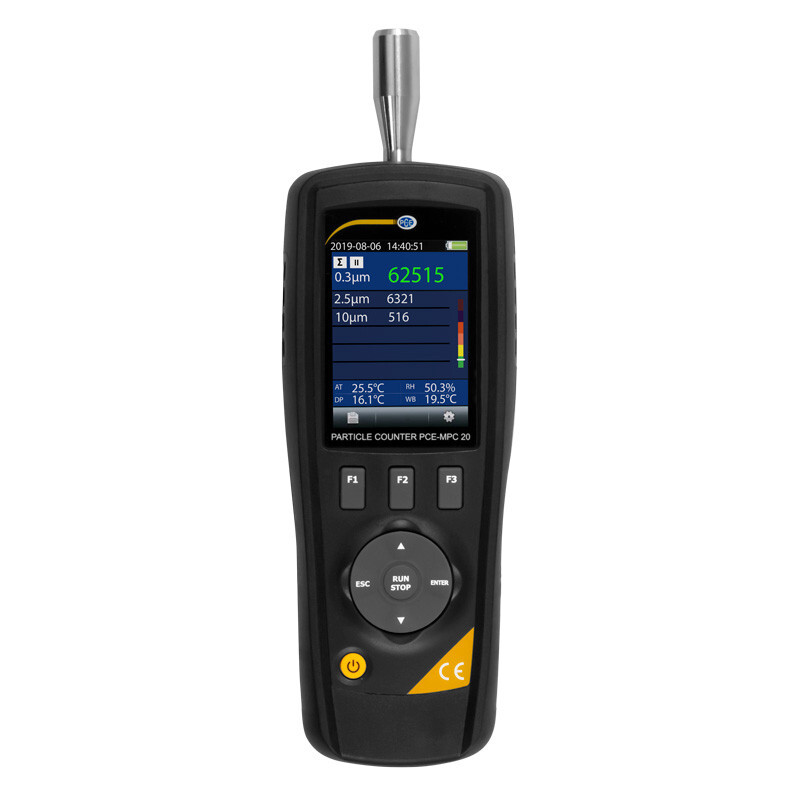

PCE MPC 20 Portable Particle Counter Air Quality Meter Sampler For Sale

Be confident in your purchase, we\'re an Authorized PCE Instruments Dealer.

Highlights:

For the measurement of pollutant content of the atmosphere

With data memory

USB interface

Mass concentration

Particle counter

The PCE MPC 20 Partical Counter Air Sampler measures the particles in the atmosphere. The measurable particle sizes of this device are 0.3, 2.5 and 10 μm. In addition to the particle counter function, the dust meter also measures the mass concentrations PM2.5 and PM10. The built-in high-performance pump ensures a sufficient flow rate at the dust measuring device. In addition, the dust meter can also measure the temperature, humidity and dew point.The measured values ​​can be read directly on the display of the dust measuring device. Data storage is also possible with the dust measuring device in order to analyze the measured values ​​after a measuring process. The battery used ensures a mobile application. This allows a mobile continuous operation of about 4 hours. A dust measuring device is used wherever a possible health hazard due to fine dust could occur. These include pollution from incineration, manufacturing, energy production, vehicle engine emissions, and the pollution that the construction industry concentration PM2.5 / PM10

Data memory up to 5,000 data sets

Flow rate 2.83 l / min

Display with graphic real-time diagram

Battery or AC operation possible

Alarm - Mass Concentration

• Measurable particle sizes: PM2.5 / PM10
• Measuring range mass concentration: 0 - 2000 μg / m³
• Resolution: 1 μg / m³


Specifications - Particle counter

• Measurable particle sizes: 0.3, 2.5 and 10 μm
• Flow rate: 2.83 l / min (0.1 ft³)
• Coincidence error: < 5% at 2,000,000 particles per ft³
• Counting efficiency:
• 50% at 0.3 μm;
• 100% with particle size > 0.45 μm
• Counting modes: Cumulative, differential, range air temperature: 0 - 50°C / 32 - 122°F
• Measuring range dew point temperature: 0 - 50°C / 32 - 122°F
• Measuring range relative humidity: 0 - 100%
• Measuring accuracy air temperature: 10 - 40°C / 50 - 104°F: ± 1.0°C / 1.8°F. Others: ± 2.0°C / 3.6°F
• Measuring accuracy dew point temperature: 10 - 40°C / 50 - 104°F: ± 1.0°C / 1.8°F. Others: ± 2.0°C / 3.6°F
• Measuring accuracy relative humidity
• 0 - 20% rel. Humidity: ± 5%
• 20 - 80% rel. Humidity: ± 3.5%
• 80 - 100% rel. Humidity: ± 5%
• Operating conditions: 0 - 50°C / 32 - 122°F, 10 ... 90% rel. humidity, Not condensing.
• Storage conditions: -10 - 60°C / 14 - 140°F, 10 ... 90% rel. humidity, Not condensing.
• Data storage: 5,000 data sets (Micro SD 320 x 240 pixels
• Backlit color LCD

Power supply: Rechargeable battery 1200-mAh, 7.4V

Charger: 100 - 240 VAC, 50 or 60 Hz

Battery Life: About 4 hours in continuous operation

Battery recharge time: About 2 hours with AC adapter

Dimensions: 240 x 75 x 57 mm / 9.4 x 3 x 2.2 in

Weight: 570 g / 1.3 lbs

What\'s included:

• 1 x Air sampler PCE-MPC 20
• 1 x Zero filter
• 1 x Battery
• 1 x Charger
• 1 x USB cable
• 1 x Mini tripod
• 1 x Hard case
• 1 x User manual
