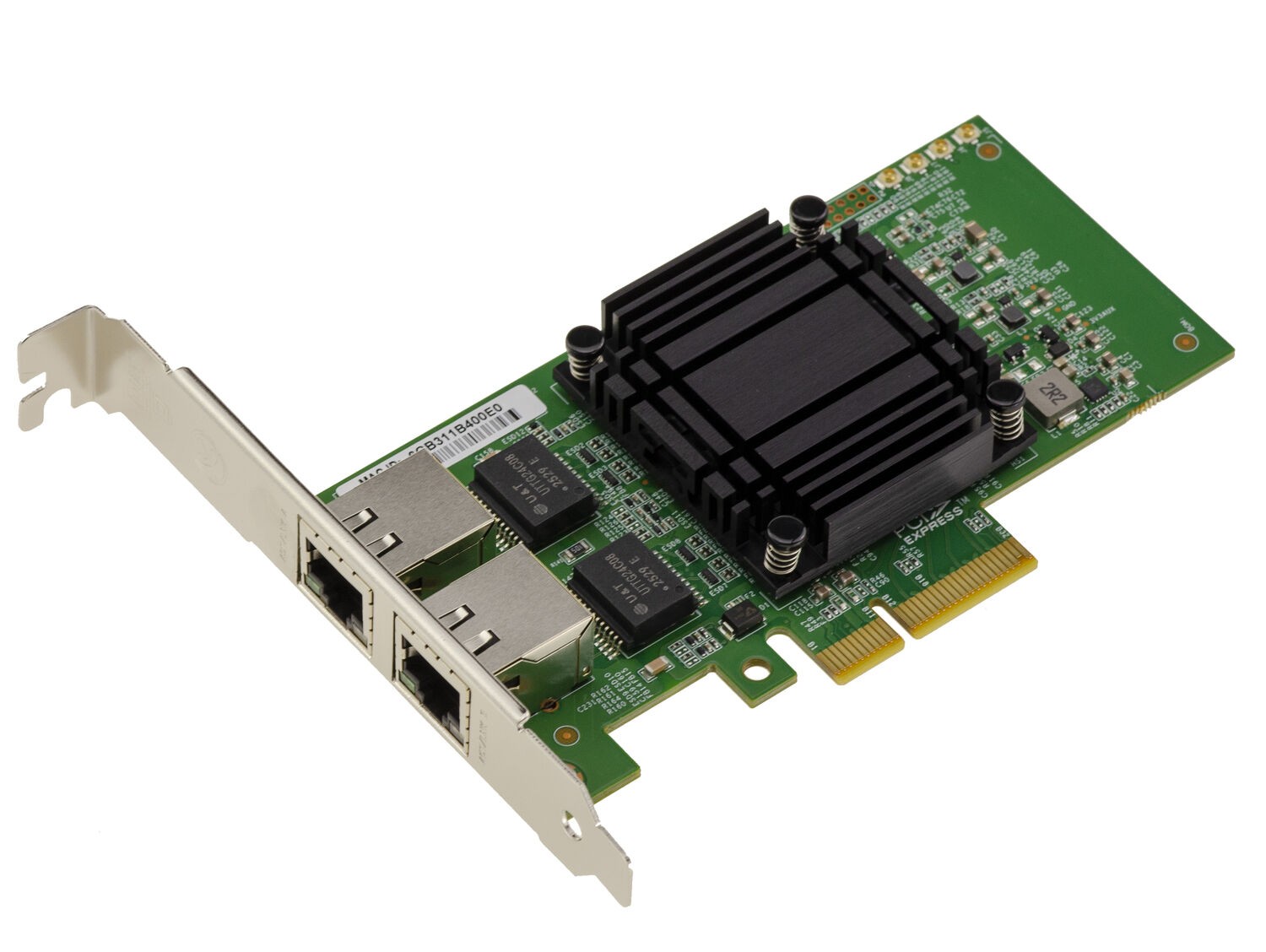

Dual-port 10 Gigabit network card, based on the Intel E610 controller. Thanks to its PCIe Gen 4.0 x4 interface, it offers high performance. It also includes advanced features such as PXE/UEFI, Wake-on-LAN, SR-IOV and IEEE 1588 with Windows, Windows Server, Deepin, Ubuntu, RHEL/CentOS, OpenEuler, Fusion OS, Kylin OS, OpenKylin...
For PCIe Gen 4.0 or higher port in x4, x8 or x16.
Features :
PCI Express 4.0 x4 interface.
2 copper RJ45 Ethernet ports.
Intel E610 controller.
Speeds 100M / 1G / 2.5G / 5G / 10G (self-adaptive).
Support Jumbo Frames up to 9.7 KB.
Supported standards: IEEE 802.3an (10GBASE-T), IEEE 802.3 (1000BASE-T / 100BASE-TX), IEEE 802.1Q (VLAN), IEEE 1588 (PTP synchronization), IEEE 802.3az (energy efficiency), IEEE 802.1BR, 802.1Qbg, P802.1AE (virtualization and security).
Advanced features: PXE / UEFI (network boot), Wake-on-LAN (remote wake-up), SR-IOV (network virtualization), IEEE 1588 PTP (precision synchronization).
Cabling compatibility: 10G Cat6 (up to 55 m), Cat6a or higher (up to 100 m), 5G Cat6a or higher (up to 100 m), 2.5G Cat5e (up to 30 m), Cat6 or higher (up to 100 m), 1G / 100M Cat5e or higher (up to 100 m).
Maximum consumption approximately 4 W.
Operating temperature -10°C to 60°C.
Link and activity LEDs.
Supplied with two brackets (low profile and high profile).
Dimensions: 125mm x 68.9mm x 10mm
Dual-port 10 Gigabit network card, based on the Intel E610 controller. Thanks to its PCIe Gen 4.0 x4 interface, it offers high performance. It also includes advanced features such as PXE/UEFI, Wake-on-LAN, SR-IOV and IEEE 1588 PTP. Supported standards: IEEE 802.3an (10GBASE-T), IEEE 802.3 (1000BASE-T / 100BASE-TX), IEEE 802.1Q (VLAN), IEEE 1588 (PTP synchronization), IEEE 802.3az (energy efficiency), IEEE 802.1BR, 802.1Qbg, P802.1AE (virtualization and security). Advanced features: PXE / UEFI (network boot), Wake-on-LAN (remote wake-up), SR-IOV (network virtualization), IEEE 1588 PTP (precision synchronization). Cabling compatibility: 10G Cat6 (up to 55 m), Cat6a or higher (up to 100 m), 5G Cat6a or higher (up to 100 m), 2.5G Cat5e (up to 30 m), Cat6 or higher (up to 100 m), 1G / 100M Cat5
