FEATURES:

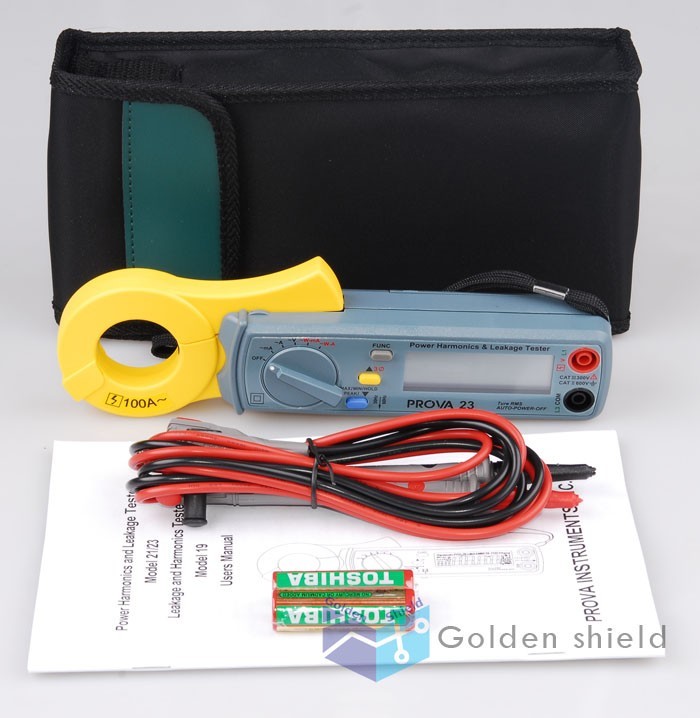

MODEL PROVA 19, 21, 23
- True RMS value (V and A)
- Leakage Current Measurement at 10 μ A Resolution
- Harmonic Analysis (V and A) to the 99 th Order
- Better Understanding of High Frequency Harmonic Analysis (up to 5/6 KHz)
- Non-interrupted Harmonic Analysis
- Analysis of Total Harmonic Distortion (THD-F)
- Analysis of Crest Factor (C.F.)
- Fast Peak Function (33 μ s and 39 μ s)
- Programmable CT Ratio (1 to 250)
Model 21(50A) and 23(100A)
- W, KW, H.P.
- VA, KVA, VAR, KVAR
- PF, Phase Angle ( Φ )
- Energy (mWH, WH, KWH)
- Analysis of Standby Power Consumption
- Balanced 3 Φ Power Quality
- Balanced 3 Φ Sequence
SPECIFICATION:
Please refer to users manual for more detailed and up-to-date description of specification.
AC Watt (50 or 60 Hz, PF 0.5 to 1. CT = 1, Accuracy of Readings)
Model 21 (0 to 50A), Model 23 (0 to 100A)
Range
Resolution
Accuracy 21 (0 - 30A)
Accuracy 23 (0 - 60A)
Accuracy 21 (30 - 50A)
Accuracy 23 (60 - 100A)
0.000 – 9.999 W
0.001 W
±1% ± 0.02 W
±2% of VA ± 5dgts
10.00 – 99.99 W
0.01 W
±1% ± 0.2 W
±2% of VA ± 5dgts
100.0 – 999.9 W
0.1 W
±1% ± 0.2 W
±2% of VA ± 5dgts
1.000 – 9.999 KW
0.001 KW
±1% ± 0.02 KW
±2% of VA ± 5dgts
10.00 – 99.99 KW
0.01 KW
±1% ± 0.2 KW
±2% of VA ± 5dgts
100.0 – 999.9 KW
0.1 KW
±1% ± 0.2 KW
±2% of VA ± 5dgts
1000 – 9999 KW
1 KW
±1% ± 2 KW
±2% of VA ± 5dgts
AC Current (50 or 60 Hz, True RMS)
Range (Model 19,21)
Range (Model 23)
Resolution
Accuracy of Readings
0.30 – 60.00mA
0.30 – 60.00mA
0.01mA
±0.5% ± 5dgts
60.0 – 600.0mA
60.0 – 600.0mA
0.1mA
±0.5% ± 5dgts
0.030 – 3.000 A
0.030 – 9.999 A
0.001 A
±0.5% ± 5dgts
3.00 – 30.00 A
10.00 – 60.00 A
0.01 A
±0.5% ± 5dgts
30.00 – 50.00 A
6 0.00 – 99.99 A
0.01 A
±1.0% ± 5dgts
AC Voltage (50 or 60 Hz, True RMS)
Range
Resolution
Accuracy of R.
Range
Resolution
Accuracy of R.
3V – 250V
0.1 V
±0.5% ± 5dgts
250V – 600V
0.1 V
±0.5% ± 5dgts
Harmonics of AC Voltage in % and Magnitude (1 to 99th order)
Range
Resolution
Accuracy in %
Resolution
Accuracy in Magnitude
50V – 600V
0.1 %
±0.5%
0.1 V
±0.5% ± 0.5V
Harmonics of ACA in % Percentage and Magnitude (1 to 99th order)
Range (Model 19, 21)
Range (Model 23)
Res.
Accuracy (%)
Res.
Accuracy of R.
10.00 – 60.00mA
10.00 – 60.00mA
0.1 %
±0.5%
0.01mA
±0.5% ± 0.1mA
60.0 – 600.0mA
60.0 – 600.0mA
0.1 %
±0.5%
0.1mA
±0.5% ± 1mA
0.5 – 3.000 A
0.5 – 9.999 A
0.1 %
±0.5%
0.001 A
±0.5% ± 0.01 A
3.00 – 30.00 A
10.00 – 60.00 A
0.1 %
±0.5%
0.01 A
±0.5% ± 0.1 A
30.00 – 60.00 A
6 0.00 – 99.99 A
0.1 %
±1.0%
0.01 A
±1.0% ± 0.1 A
Power Factor and Phase Angle (PF, Φ ,Model 21 and 23)
Range (PF)
Resolution
Accuracy
Range (Φ)
Resolution
Accuracy
0.000 – 1.000
0.001
± 1°
-180° to 180° (0 ° to 360 ° )
0.1°
± 1°
Total Harmonic Distortion (THD-F, 1 to 99th order) Crest Factor (C.F., Accuracy of Readings)
Range
Resolution
Accuracy of R.
Range
Resolution
Accuracy of R.
0.0 – 999.9 %
0.1%
± 0.5% ± 5 digits
1.00 – 99.99
0.01
± 5% ± 30 digits
General Specification
Conductor Size
30mm (approx.)
Battery Type
1.5V SUM-3 x 2
Display
4+2+2 digits LCD
Power Consumption
5mA (approx.)
Auto-Power-Off
30 minutes
No. Of Samples/Period
512 (V & A), 256 (W)
LCD update rate
2 times / sec.
Weight
200g (battery included)
Operating Temperature
-10 ° C to 50° C
Operating Humidity
< 85% relative
Storage Temperature
-20° C to 60° C
Storage Humidity
:< 75% relative
Dimension
210 (L) x 62 (W) x 35.6mm (H), 8.3" (L) x 2.5" (W) x 1.4" (H)
Accessories
test leads, Carrying bag x 1, Users manual x 1
Option
alligator clips
Notice:
The standard package don't include batteries.Because,the international air shipping foroffer to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!
