Description:

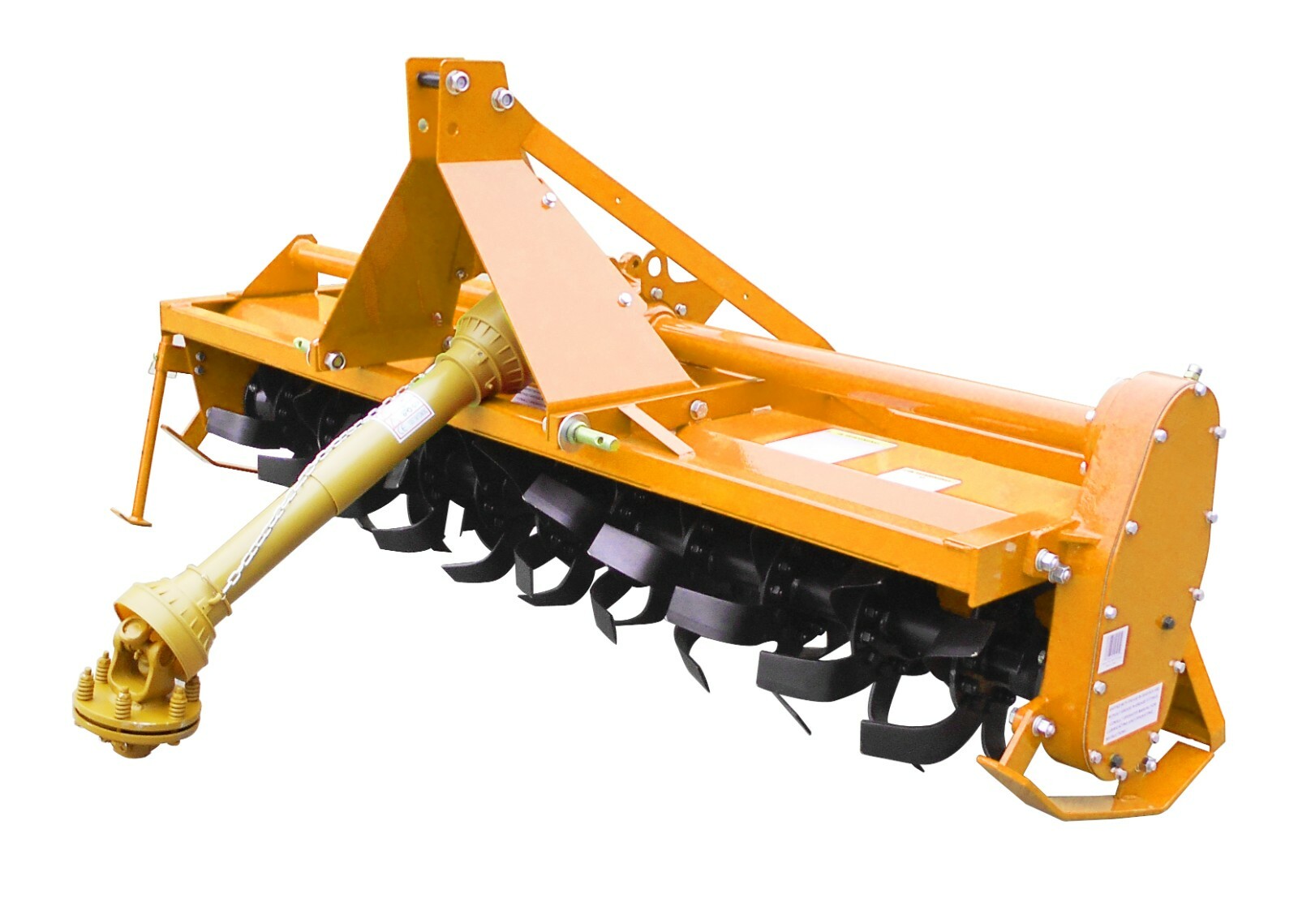

Brand New High QualitySigma Brand3 Point Hitch Rotary Tiller 7' FT 84" With PTO Shaft
Heavy duty cast iron gear box
Working Width: 7'
Maximum Depth of Cut: 6" (achievable under ideal conditions)
The tillage depth of a rotary tiller is determined by its blades and influenced by soil conditions and operation.
While the skid plate helps reduce resistance and clear debris, it does not control the cutting depth.
Total Number of Tines: 66
Recommended PTO HP: 45-60
Hitch Requirement: Cat. I
Tillage Depth & Operation:
Depth Control: Determined by blade design, soil conditions, and operating techniques. The skid plate reduces resistance but does not control depth.
Soft Soil: Adjust blade-to-soil distance to avoid excessive depth. If digging too deep, raise the control lever slightly or shorten the lifting rods.
Hard Soil: Improve penetration by shortening the upper link, adding weight, shifting to a lower gear, or increasing blade shaft speed. Key Features:
Durable Construction: 66 heavy dutytines for efficient soil cultivation.
Power & Compatibility: Heavy-duty cast iron gearbox, PTO shaft included. Fits 45-60 HP tractors with a Category I hitch. Not compatible with compact tractors.
Optimal Performance: Counterclockwise blade rotation (facing the gearbox side) for effective tillage.
Shielded PTO Shaft with Slip Clutch
Powder Coat
Standard Replaceable Skid Shoe Kits With Parking Stand
Rotary Tiller Rotation Direction: When facing the gearbox side, the blades of the rotary tiller rotate counterclockwise.
Gear box shipped dry. Gear oil needed for proper operation. See owner’s manual for specifications.
Product Information:
Length： 92 Inch
Width: 40 Inch
Height:34 Inch
Weight: 860 LBS
Ifyouarenotsure,please leave message on andwewillbeabletoassistyou.
