Portable Dental Mobile Delivery Unit System Air Compressor /Handpiece 4Holes For Sale

Low speed handpiece kit water spray

2.Short motor

3.Reducing size and weight

4.Updated to an integrated design in response to modern demands.Shorter and lighter than precious models. Its shorter, lighter air motor gives optimal balance, reducing stress and fatigue during treatments and enabling you to focus on the procedure at hand

5.More comfortable to use

Technical：

Chuck Type：Push button

Noise:≤70dB

Air pressure:0.3MPA

Bur speed:20,000rpm

ISO E-TYPE Connect

4 Hole Air motor

Warranty:Six months

Package:

Contra angle*1

Straight handpiece*1

Air motor*1

External Water pipe*1

Oil nozzle*1

English Operation Manual*1

NSK Style Dental E-generator LED High Speed Handpiece Ceramic Torque Head 4H

Features:
1.Low noise,torquehead

2.Stainless body,durable,maintain stability
3.Triple water spray, LED handpiece integrate E-generator

4.Unique electric generator, just a little air can generate sufficient power
5.135°CAutoclavable

Technical :

Chuck Type: Push Button
Working pressure: 0.25 Mpa to 0.3 Mpa
Speed: 280,000-350,000R.P.M
Spray: Triple water Spray
Bur ≤ 60 dB
Hole: 4 Holes
BEARING: Ceramic bearing

Packing List
Handpiece *1
Wrench High Speed &Slow Low Speed Handpiece Kit 4 Holes

High speed handpiece Features:

- NSK style Pana Max high speed handpiece

-4-Holestandard push button handpiece

- Single-way water spray

- It has unique appearance design and fluent outline.

- Smooth as silk, it has excellent texture.

- With people-friendly design, easy for operation.

- With best quality cartridge, easier for cleaning.

- With high-speed turbine rotation, it has better performances.

- Chucking power of chucking needle is 20N-45N.

- It is noise-free and stable.

- Applicable Bur: 1.6mm and should be conformed to ISO standard.

- Idling speed of handpiece should be no less than 370,000 rotations under working air pressure of 25-30 pressure atmosphere.

- Special for operations such as clamping high-speed dentistry machine needle to drill and grind teeth in department of stomatology, it is more professional.

- It is only for people who have dentistry medical Push button type, high speed handpiece, Single-way water spray

Needle Change Type

Push button

Air Pressure

180~250 KPa (1.8~2.5 kgf/cm2)

Water Pressure

198Kpa (2 kg)

Rotation Speed

370,000-420,000 rpm

Head Hight

13.14 mm

Head Diameter

φ11.2 mm

Bur speed kits Features:
- E-type connector
- Wrench type
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave

Contra angle handpiece
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors

Straight Nosecone
- Working pressure: 0.3MPa ;
- 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.

Air Mortor EX-203C
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
-4 hole
- Max speed 20,000 min-1
Specifications

Air-in Pressure(kg/c㎡)

Motor Rotation(rpm)

Air List:

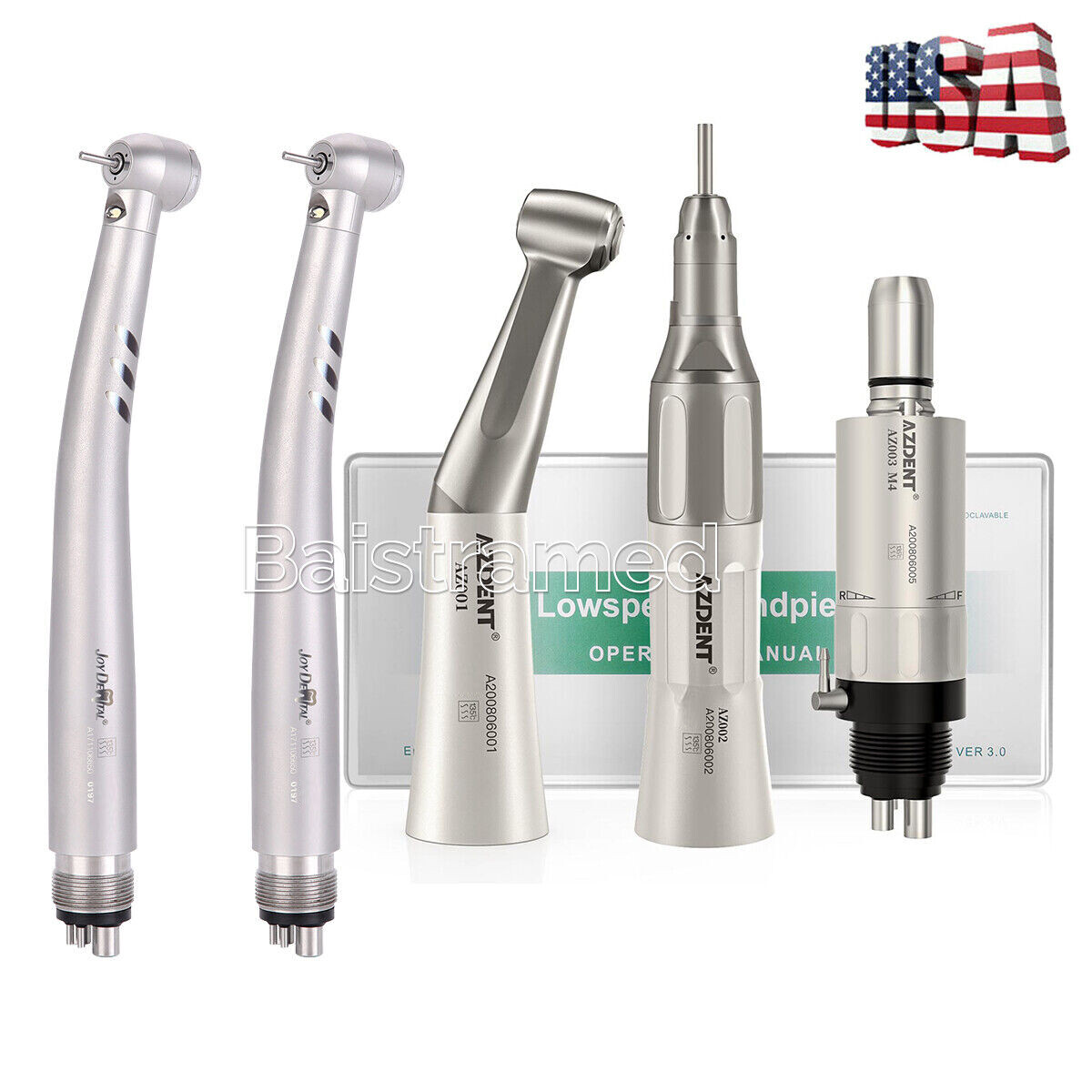

- High speed handpiece push button4 holes: 2 each
- E-type air motor4 Hole: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- Oil spray nozzle: 1 each
- CAP Spanner: 1 Dental Delivery Unit Air Compressor Suction System 4Hole

Technical data
Model:BD-402 Portable Dental Unit
Votalge: 110 V/60Hz,
Power:550W

Speed R.P.M:1400r/min
Air Flow:65L/min
Pressure:0.6Mpa
Net Weight:16Kgs
Gross Weight:19Kgs
Noise:40dB
Packing Size:46*35*50cm

Note: This product is only suitable for 110V voltage, please do not use 220-240V voltage, as 220-240V will cause the machine to burn out.

Standard Accessoiries：
Oiless Air Compressor Motor 1pc
3 Way-Springe 1pc
High Speed Handpiece Pipe 1pc
Low Speed Handpiece Pipe 1pc
High Suction(Ajust) 1pc
Water Bottle 1pc
Drain Bottle 1pc
Foot Control 1pc

Safety Guidelines
1, Before operating the unit, please read the manual carefully and preserve it for future reference.
2, Please operate and maintain the unit strictly in accordance with the operational instructions.
3, The user should read the instructions supplied with the dental unit carefully.
4, Symbol “Attention” denotes that before using the device, read the operating manual carefully and carry out all the instructions to avoid any damage or injury.
5, Please contact the local agent or the manufacturer if the unit needs repairs. We will supply a high quality of service and assistance for you.

Warning:
1 The power switch should be turned off when the machine stopped working, the transformer and solenoid valves will heat to burn if long-term power or no stop the power.
2. Please drain off the water when the water on 2/3 of Suction bottle, the water will come to motor if the water is higher than 2/3 on suction bottle, the air motor will leakage of electricity or burn if the water come to air motor.

[NOTE]:Both 4 Hole and 2 Hole are available, we send 4 Hole by default!

If you neee 2 Hole, please leave us a message, we will send you the right one!
