Portable Ultrasonic Liquid Flowmeter Pipeline TDS-100H DN50-700 Flow Meter M2 US For Sale

Portable Ultrasonic Liquid Flowmeter Pipeline TDS-100H DN50-700 Flow Meter M2 ！

Portable Ultrasonic Liquid Flowmeter Pipeline TDS-100H DN50-700 Flow Meter M2

Description

This ultrasonic liquid flowmeter is made of high-quality metal and plastic, which is strong, durable, and not easy to deform. It has a measurement accuracy of ±1% and can accurately measure the flow volume and flow rate of pipeline liquids. This product uses non-contactultrasound measurement with a large measuring range of ±32m/s (±104ft/s), making the product independent of system stress and harsh environments.

KeyFeatures

High-quality Materials: This product is made of high-quality metal and plastic, which is strong, durable, and not easy to deform.

Non-contact Measurement:This product uses non-contactultrasound measurement with a large measuring range of ±32m/s (±104ft/s), which makes the product independent of system stress and harsh environments. It has a measurement accuracy of ±1% and can accurately measure the flow volume and flow rate of pipeline liquids.

Data Protection:The data logger has 24k bytes of space and can store about 10000 lines of measurement data. Even when the machine is powered down and the power is off, the data will not be lost. You can also set a password to prevent data from lost or being modified.

Long Endurance: The lithium battery inside the meter (3.6V 2.5A) can be used continuously for about 6-8 hours on a full charge, which can save you a lot of time and energy.

Easy to Clean: The surface of this product is smooth and flat, which is easy to clean. You just need to wipe it with a wet rag.

Easy to Carry:This product is lightweight and compact. Meanwhile, it comes with a carrying case that makes it easy to carry, avoiding losing small accessories.

Complete Kit: This product includes a flowmeter, M2 transducer, signal cable, fastening chain, charger, ruler, RS232 cable, carrying case,empty coupling agent bottle(excluding coupling agent), and English instruction manual, making this product easy for you to use.

Details

LCD Display Screen:It can display cumulative flow rate, instantaneous flow rate, and flow rate, at the same time, which facilitates you to understand the data more intuitively.

Built-in Clock:This product has a built-in clock that makes it easy to accumulate flow data. As long as the battery voltage is greater than 1.5V, the clock can always work and keep the correct time value.

M2 Transducer:The transducer makes this product easy to use without having to break pipes and stop production during the measurement process.

Carrying Case:It is made of high-quality thickened aluminum alloy, which is waterproof, dustproof, and anti-shock. It protects this product well and makes it easy for you to carry.

Application

It can achieve the flow measurement for the pipe size from DN50 to DN700mm/2-28" and work on copper pipe, and PVC pipe to detect the flow of liquids, including seawater, alcohol, river water, industrial sewage, lubricating oil, diesel, fuel oil, etc.

Specification

Flowmeter Model: TDS-100H

Transducer Model: DN50-DN700

Transducer Type: M2

Communication Interface: RS-232C

Color: Black, Silver

Material: Metal, Plastic

Style: Modern

Power Type: Plug-in, Built-in Lithium Battery (3.6V 2.5A)

Plug:American Standard

Rate Units: Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. (User Configurable)

Security: Setup Lockout, Access Code Needed for Unlocking

Manual Totalizer: For Calibration

Measuring Medium: Water, Seawater, Industrial Sewage, Various Oils, and Other Liquids that Can Conduct Sound Waves

Linearity: 0.5%

Repeatability: 0.2%

Accuracy: ±1%

Response Time: 0-999s (User-configurable)

Flow Rate Range: ±32m/s (±104ft/s)

Velocity: ±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), Bi-directional

Totalizer: 7-digit Totals for Net, Positive and Negative Flow

Display: 4x16 English Letters

Baud-rate: 75-115,200bps

Data Logger: 24k Bytes, Store 10000 Lines of Data

Temperature Range: -30-160℃

Gross Weight: 6kg/13.23lbs

Package Size: 50*42*14cm/19*16*5inch

Carrying Case Size: 47*39*11cm/18.5*15.35*4.33inch

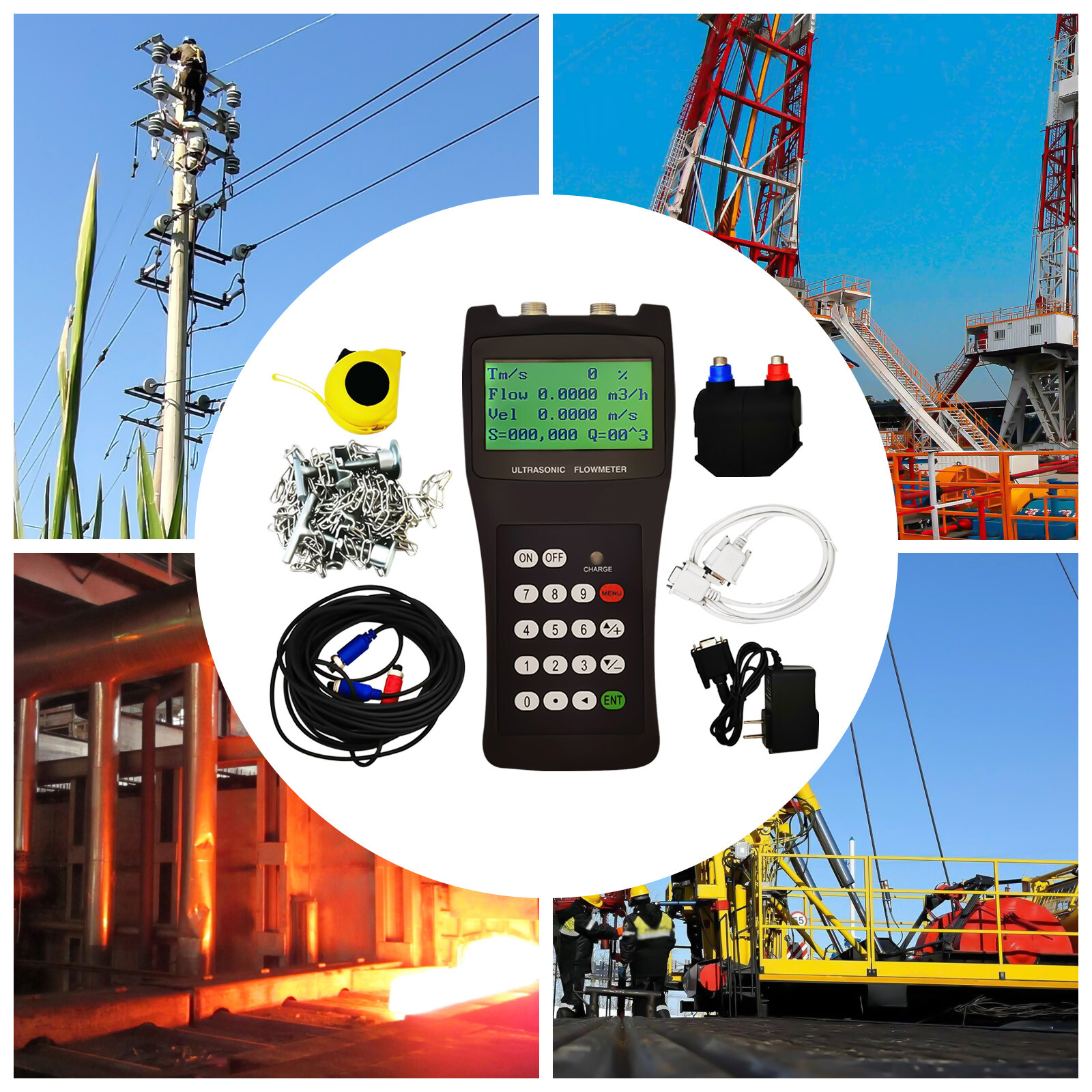

PackageIncluded

1* Flowmeter

1* M2 Transducer

1* Signal Cable

1* Fastening Chain

1* Charger

1* Ruler

1* RS232 Cable

1* Carrying Case

1* EmptyCoupling Agent Bottle(Excluding Coupling Agent)

1* English Instruction Manual

Notes

Please read the manual completely before installation and use, and pay particular attention to the safety instructions included. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
